CK6166A professional automotive wheel repair cnc lathe from china realiable supplier
technical parameter
Max. turning diameter over the bed Inch 26” (φ660mm)
Machining diameter of the wheel Inch
Manual chuck 5"~20" 12"~22” (optional)
Automatic chuck (optional) 12"~18"
Max. machining length of the workpiece: 750mm
Max. measured depth of the probe: 100mm
Max. machining depth of the tool: 100mm
Machining accuracy: IT6-IT7
Surface roughness um: Ra0.8~0.1
Main transmission form: Independent spindle, frequency conversion steeples
Range of spindle speed rpm: 150~2000
Main motor power: 7.5kw
Fast-moving feed: m/min X - axis: 5000, Z - axis: 8000
Repeat positioning accuracy mm: X - axis:0.01, Z - axis:0.015
Standard accessories: 4 station electric tool
Repeat positioning accuracy(mm): 0.008
Section of turning tool(mm): 25×25
The size of the machine (L×W×H)mm: 2300×1750×1780
Net weight of the machine(kg): 3000
Main features
1) Achieve the wheel surface profile measurement and data collection and Program Optimization,
2) Automatic precision repair and machining in accordance with the curve of the wheel surface
3) Spindle frequency stepless speed;
4) X / Z axis servo drive;
5) Manual jaw self-centering chuck;
6) Machine guard full protection;
7) Automatic oil lubrication.
8)with 4 electric stations tool post (aumatically to change tools and probe, save more time and with high efficiency and high precision)
Uses
1) The machine tool suitable for High-precision turning and repair processing for surface of car wheel.
2) The machine tool has also the function of the general CNC lathes

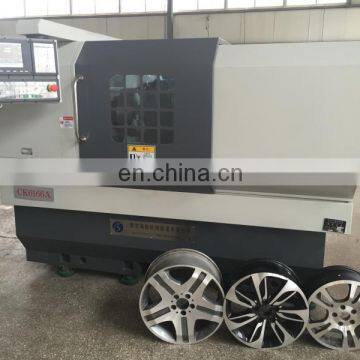

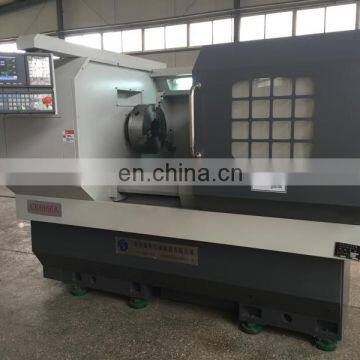

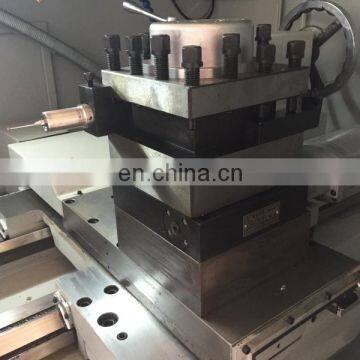

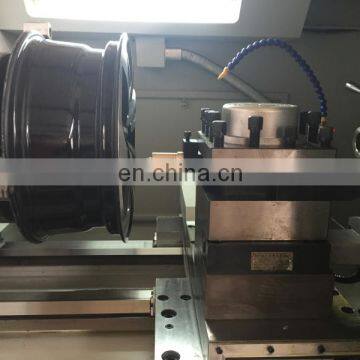

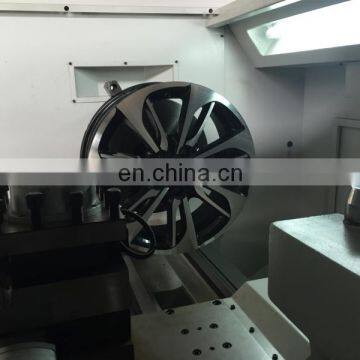

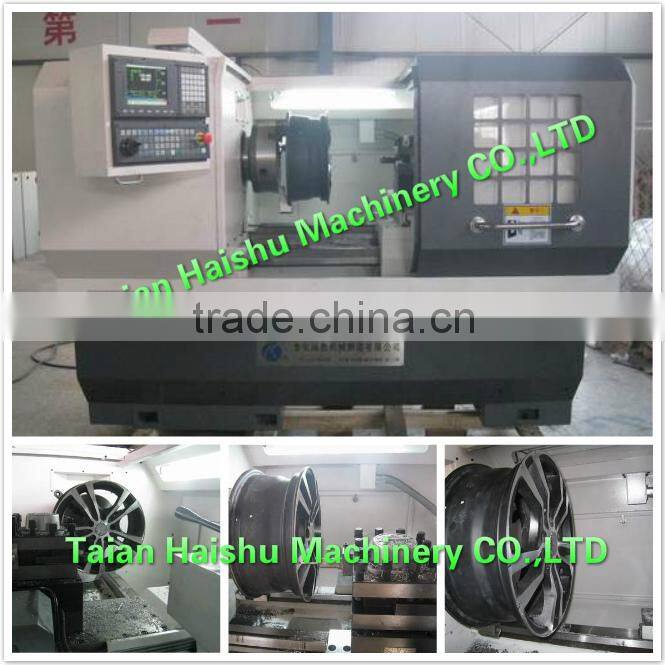

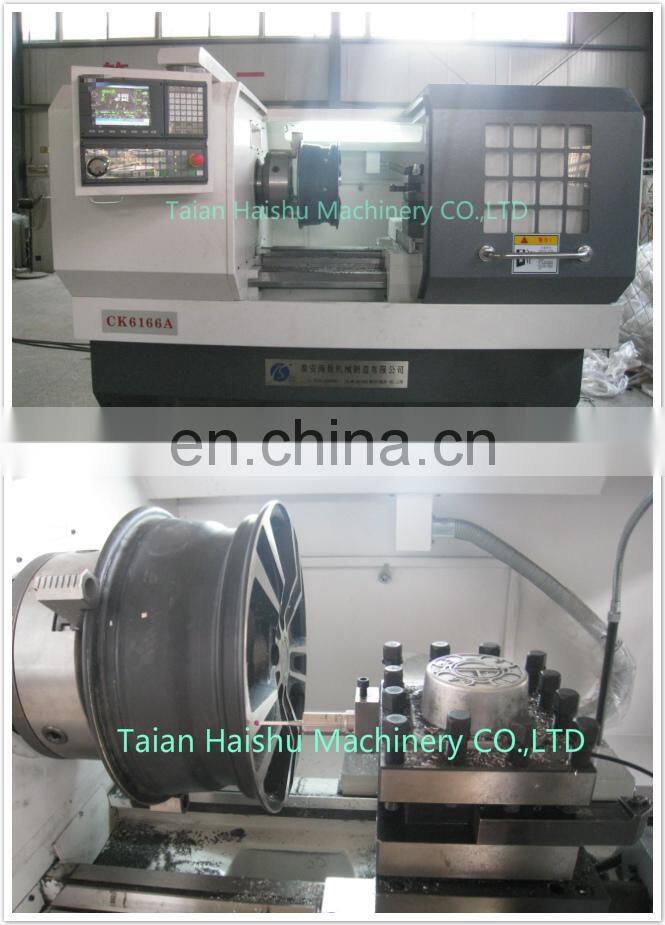

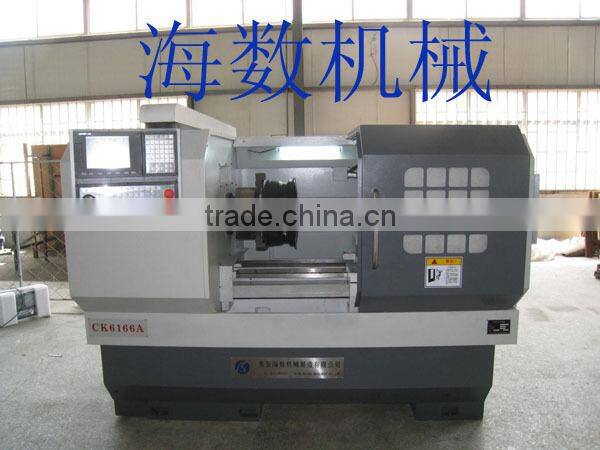

machine photo
