Automatic CK6180A Wheel CNC Lathe with High Precision

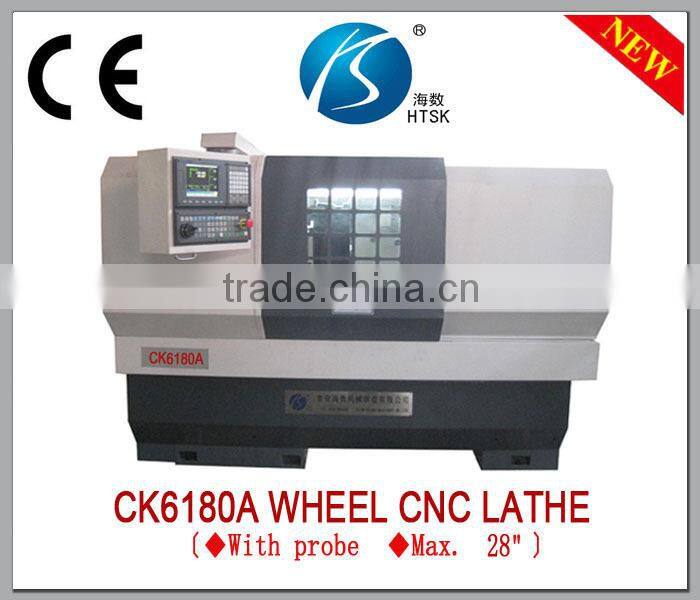

CK6180A Wheel CNC lathe
1.Technical parameters
Project name |
Unit |
Technical paramaters |
Max. turning diameter over the bed |
Inch |
31”(φ800mm) |
Machining diameter of the wheel |
Inch |
Manual chuck 5"~22" 16"~28”(Optional) Automatic chuck(Optional) 13"~22" |
Max. machining length of the workpiece |
mm |
750 |
Max. measured depth of the probe |
mm |
50 |
Max. machining depth of the tool |
mm |
50 |
Machning accuracy |
|
IT6-IT7 |
Surface roughness |
um |
Ra0.8~0.1 |
Main transmission form |
|
Independent spindle; frequency conversion stepless |
Range of spindle speed |
rpm |
150~2000 |
Main motor power |
kw |
7.5 |
Fast-moving feed |
mm/min |
X - axis:5000 Z - axis:8000 |
Repeat positioning accuracy |
mm |
X - axis:0.01 Z - axis:0.015 |
Standard accessories |
|
4 station electric tool |
Repeat positioning accuracy(mm) |
mm |
0.008 |
Section of turning tool(mm) |
mm |
25×25 |
|
The size of the machine (L×W×H) |
mm
|
2400×1900×2100 |
Net weight of the machine(kg) |
3200 |
|
2. Main features
Achieve the wheel surface profile measurement and data collection and Program Optimization,
Automatic precision repair and machining in accordance with the curve of the wheel surface
Spindle frequency stepless speed;
X / Z axis servo drive;
Manual jaw self-centering chuck;
Machine guard full protection;
Automatic oil lubrication.
3. Uses
The machine tool suitable for High-precision turning and repair processing for surface of car wheel.
The machine tool has also the function of the general CNC lathes .

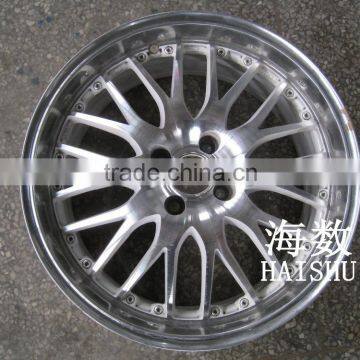

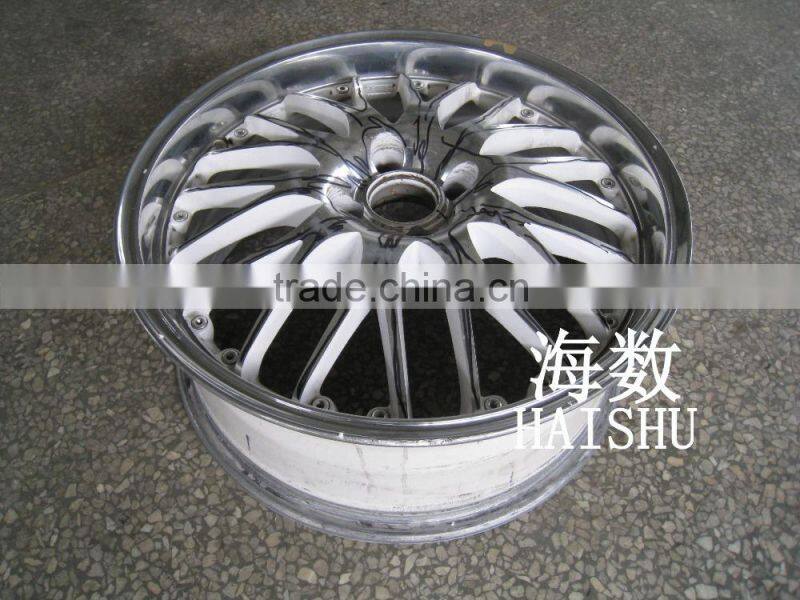

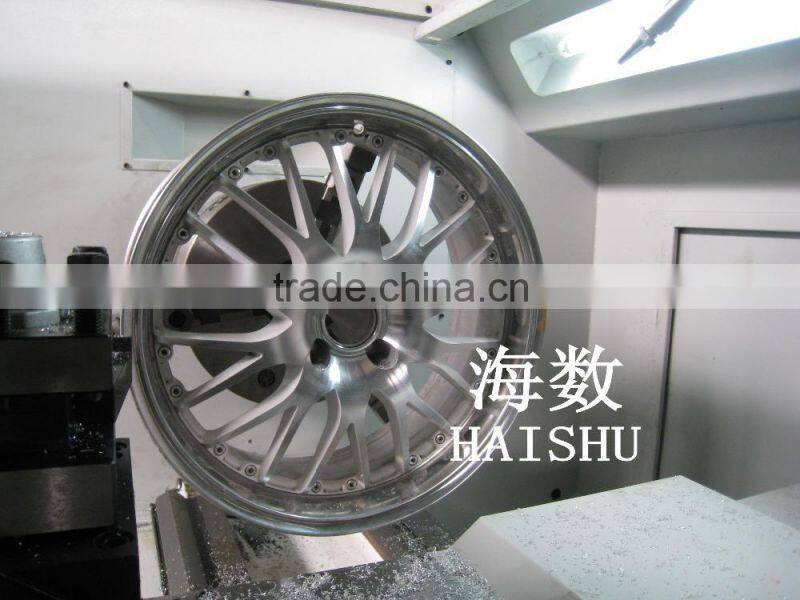

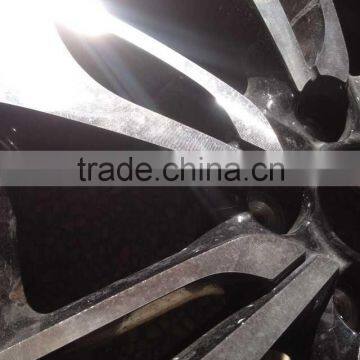

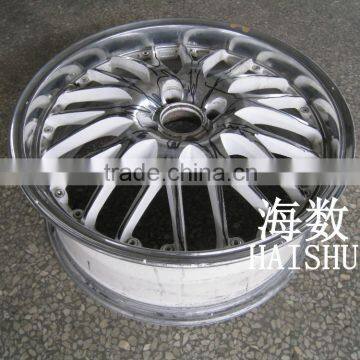

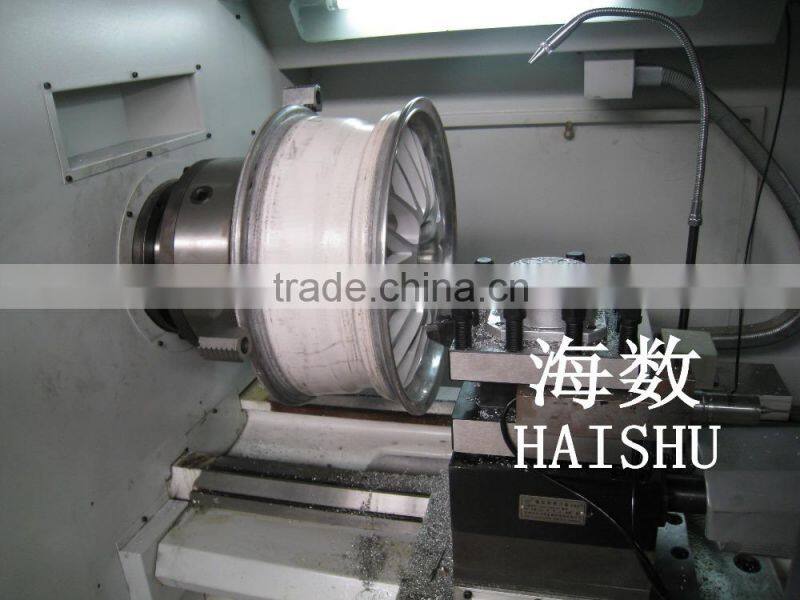

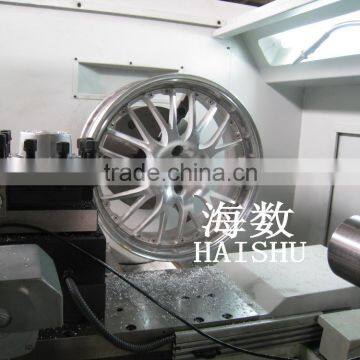

Processing Photos
