Vertical wheel cnc lathe machine CKL860
- 100 Set / Sets per Month
- Qingdao
- T/T Credit Card
- The precision wheel repair cnc lathe machine CKL1000
- The vertical wheel repair lathe machine laser measuring CKL1000
- CKL860 wheel repair CNC lathe machine with probe
- Hot sale vertical wheel repair cnc lathe machine price CKL860
- CK6160A Diamond Alloy Rim Repair cnc lathe equipment
- CK6197W lathe diamond wheel machine cnc with CE
Product Details
Brand Name: | HaiShu | Place of Origin: | Shandong, China | Model Number: | CKL860 Vertical wheel cnc lathe |
After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
Packaging Details
standard wooden box for Vertical wheel cnc lathe machine CKL860
Product Description

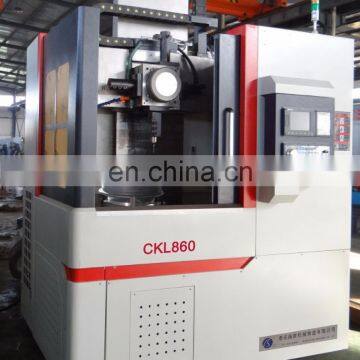

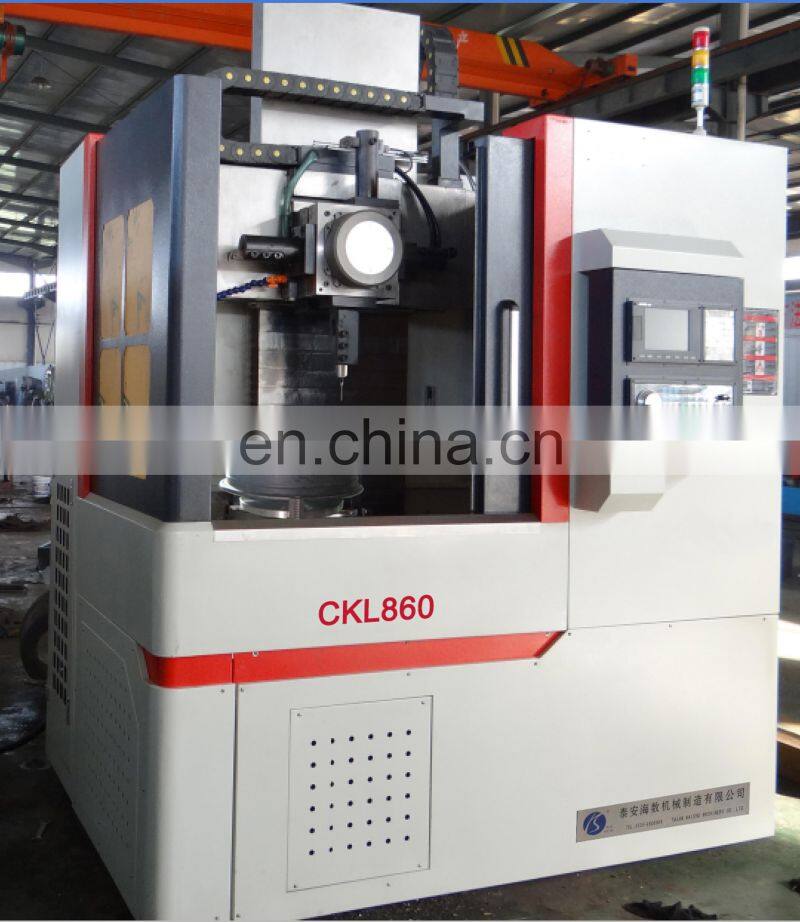

Vertical wheel cnc lathe machine CKL860
Technical Parameters
NO. | Item | Unit | Technical Parameters |
CKL860 | |||
1 | Max. turning diameter | mm | 860 |
2 | Max. machining wheel diameter | mm | 760(30") |
3 | Chuck maximum clamping diameter | mm | 780 |
4 | Spindle speed | rpm | 50-1000 |
5 | Cutting feed rate | mm/min | 0.1-1000 |
6 | Turret vertical movement distance | mm | 450mm(The minimum distance of the chuck surface from the turret is 150) |
7 | Turret horizontal movement distance | mm | -30~420 |
8 | X-axis fast moving speed | mm/min | 1500 |
9 | Z axis fast moving speed | mm/min | 8000 |
10 | Turret form |
| Manual four-position |
11 | Tool handle section | mm | 25×25 |
12 | Main motor power | kw | 5.5(frequency conversion) |
13 | Feed motor |
| X: 1.6 kw /10Nm Z:1.6 kw/10Nm |
14 | Cooling pump motor |
| 250w / 25L/min |
15 | Machine positioning accuracy | mm | 0.015 |
16 | Machine repeated positioning accuracy | mm | 0.012 |
17 | Machine weight | kg | ≈3600 |
18 | Machine dimensions | mm | 2000×1750×2000 |
Standard configuration
CNC system:

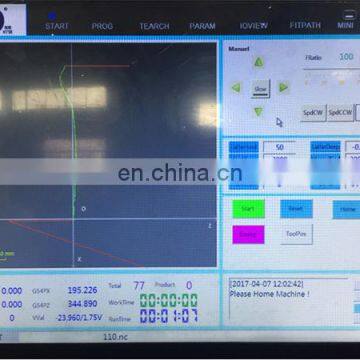

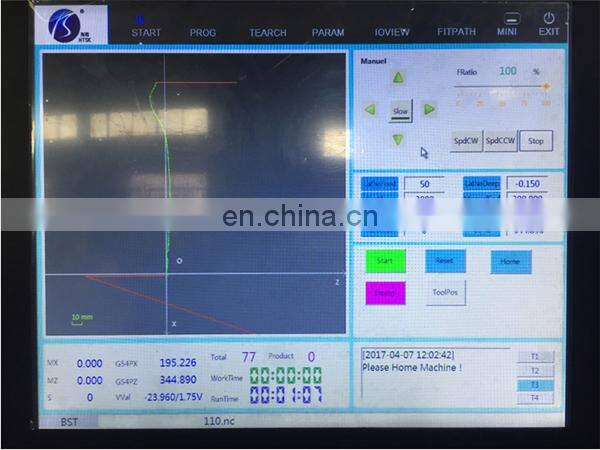

“HAISHU” LCD touch screen operating CNC system. The CNC system is a self-developed wheel repair system by HAISHU, touch screen operation, wheel measurement and program optimization at the same time in the CNC system to complete. Have a computer teaching function.
Taiwan's SYNTEC 6TA(Optional). The CNC system is a general-purpose system , keyboard operation, wheel measurement and program optimization can not be done simultaneously in the CNC system. There is no computer teaching function.

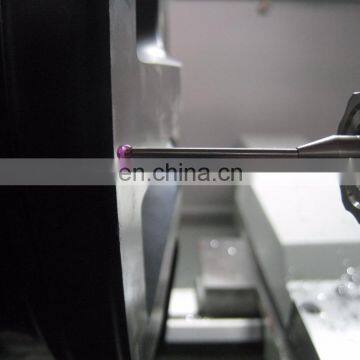

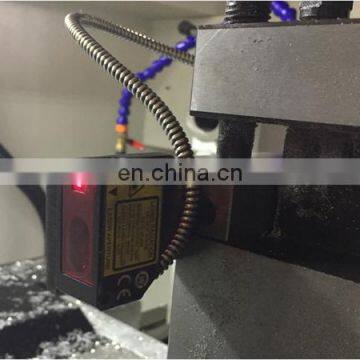

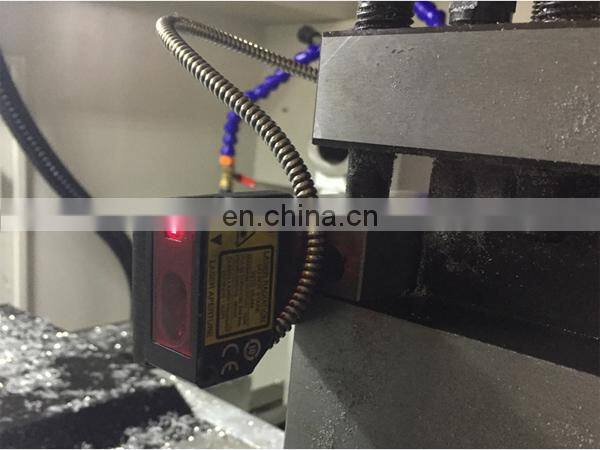

Probe contact measurement. (Laser non-contact measurement, Optional)
Domestic precision spindle unit
X, Z axis linear guide
Precision screw vice
Rail protection system
Automatic lubrication system
Cooling system
Air gun
MPG
Warning lights
Machine cover full protection
Manual chip removal; Manual chuck; Manual four-position turret.
standard exported wooden case
- 1. How long is the warranty period for the cnc lathe?
Our warranty period is one year, life service. - 2. Is there any requirement for the voltage of the cnc lathe?
Our standard voltage is generally 3-phase 380V, if you need to customize the other voltage please tell us in advance. - 3. May i change the color of the cnc lathe?
The color of the machine can be customized according to the color card provided by you - 4. Could the cnc lathe be customized?
As long as you provide detailed workpiece requirements or drawings, we can customize a special machine for you.
Taian Haishu Machinery Co., Ltd. is the professional CNC machine designer and manufacturer dedicated in supplying all kinds of cnc machine to worldwide customers. We had been always worked hard to become the leader in designing and manufacturing CNC lathes since the foundation in 2001. There are more than 60 talented experts and more than 12,000 square meters factory to guarantee the production and quality of CNC lathe machines. Our innovative, high-quality products include CNC lathe, wheel repair machine, cnc milling machine and other customized CNC machines. Product innovation, quality assurance and customer satisfaction are our long term commitment to our worldwide customers. Hope to build strong business relationships with you!
Our customer from allover the world:
Company Profile
All the stock machines are mainly sourcing from broke factory, Auctions from China Government, China Custom, also European and American official auctions. All machines are in excellent condition, powered and functional. Major equipment categories are as following fyi: Machining center, Lathe, EDM, Grinder, Hobbing machine, Gear shaping machine, Boring-Mill Machine, Milling machine, Boring machine, Press, Drilling machines in brands of Mitsui Seiki, Mori Seiki, Mazak, Makino, Brother, Citizen, Wasino, Okama, Kuraki, Kitamura, Sodick, Agie, DMG, Okamoto, Mitsubishi, Daewoo, Fanuc, OKK, Toyoda, Matsuura, Yasda, Toshiba, Waida, Howa, Ikegai, Nakamura Tome, Charmilles, YCM and a lot qualified Chinese Brands.
