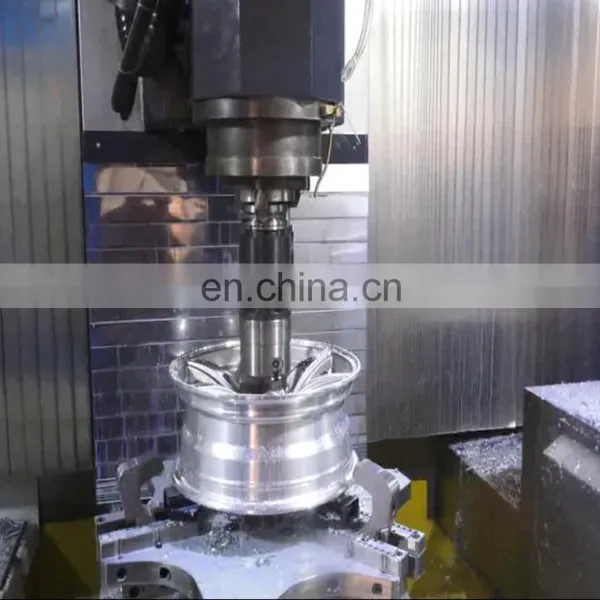

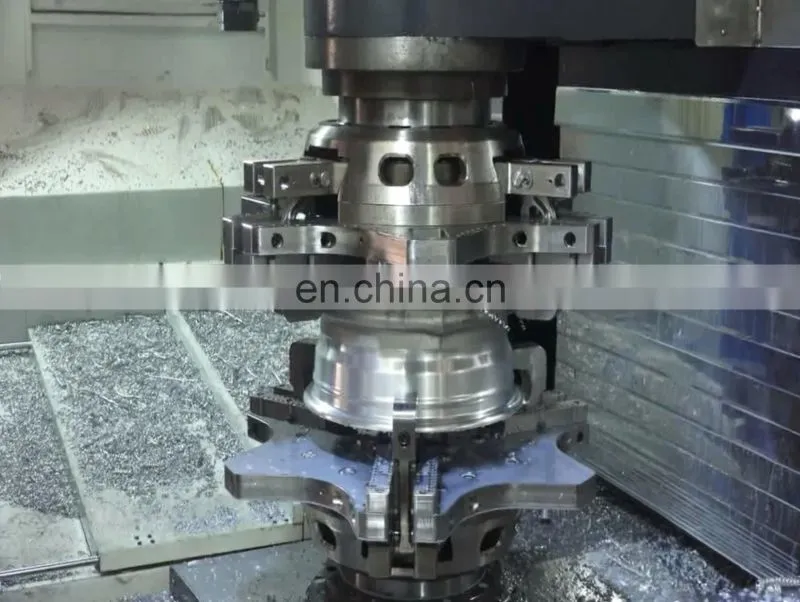

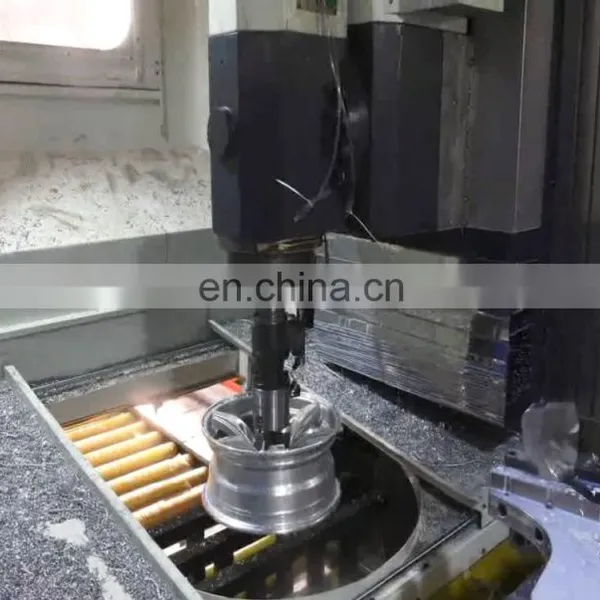

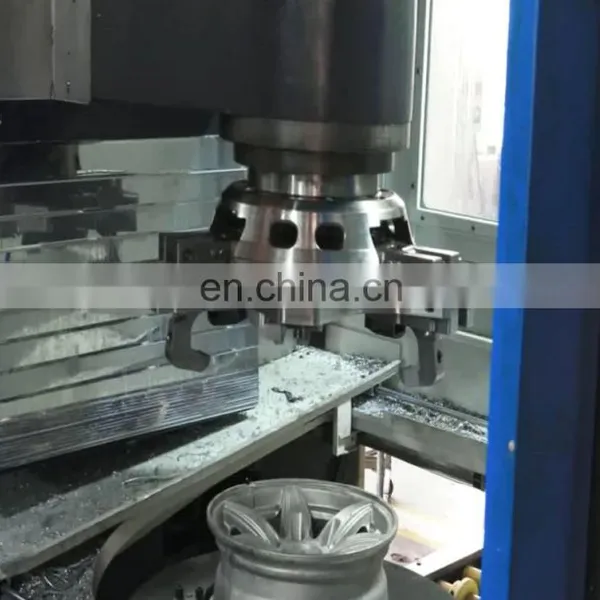

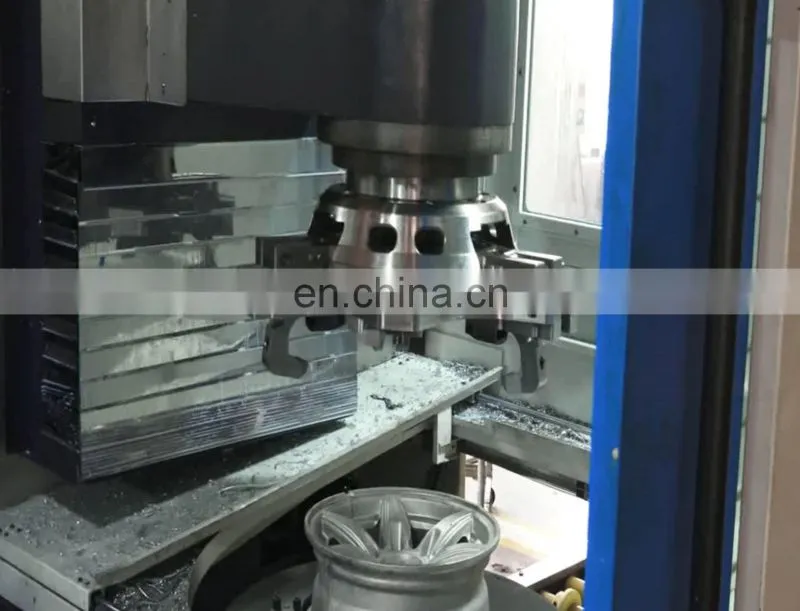

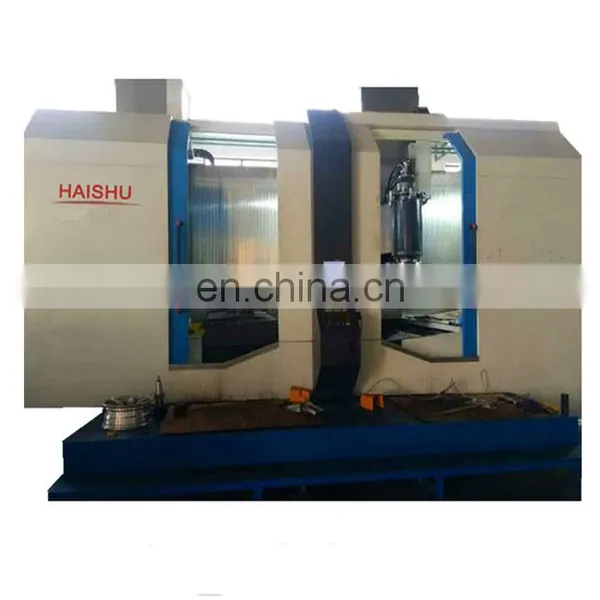

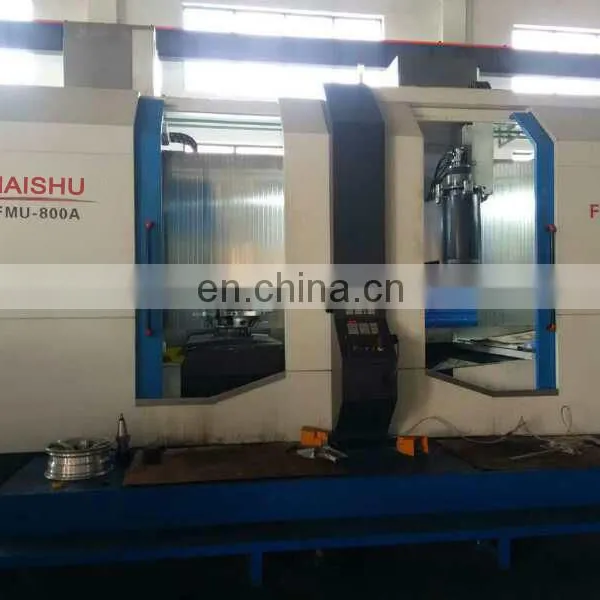

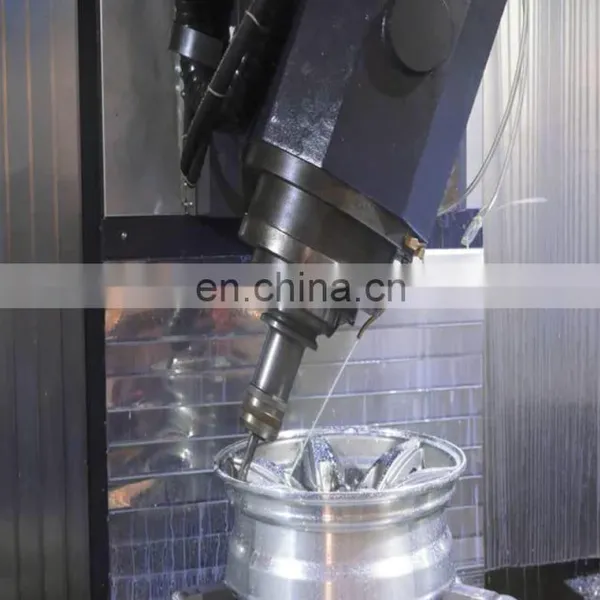

FMU650A Automatic alloy wheel making machine
Technical Parameters
No. |
Item |
Unit |
Technical Parameters |
FMU650A | |||
1 |
Max. rotation size |
mm |
750 |
1 |
Rotate table speed |
rpm |
2500 |
4 |
Max. diameter |
mm |
650(25") |
5 |
Distance from ground to table end |
mm |
600 |
6 |
X-Axis travel |
mm |
3200 |
7 |
Y-Axis travel(Optional) |
mm |
+300-300 |
8 |
Z-Axis travel |
mm |
1200 |
9 |
Distance from spindle end to table |
mm |
1000 |
10 |
Distance from spindle center line to column guide |
mm |
550 |
11 |
Coolant supply |
L/min |
50 |
12 |
Spindle nose taper |
BT50 |
7 / 24 No.30 |
13 |
Spindle speed - STD. Direct drive ( D.D ) |
rpm |
80 -12000 |
14 |
Spindle speed - OPT. Indirect drive ( I.D ) |
rpm |
60- 6000 |
15 |
Spindle bearing DIA(D.D)STD |
mm |
130 |
16 |
Tool clamping force |
Kgf |
450 |
17 |
Fast-moving (X/Y/Z) (Y-Axis optional) |
m / min. |
30 / 30 / 30 |
18 |
Cutting feed |
mm |
1 - 15000 |
19 |
Screw diameter (X/Y/Z) (Y-Axis optional) |
mm |
45 / 50 / 50 |
20 |
Rail form(X/Y/Z) (Y-Axis optional) |
|
Line guide |
21 |
Number of tools |
PC |
24 |
22 |
Max. tool diameter |
mm |
120 |
23 |
Max. tool diameter with adjacent empty tool position |
mm |
165 |
24 |
Tool to tool time |
Sec |
1.4 |
25 |
Max. tool length |
mm |
300 |
26 |
Max. tool weight |
kg |
35 |
27 |
Positioning for X, Y, Z axis as per JIS B6330 (Y-Axis optional) |
mm |
0.0050 |
28 |
Repeatability for X, Y, Z axis as per JIS B6330 (Y-Axis optional) |
mm |
± 0.003 |
29 |
Spindle motor |
kw |
22 |
30 |
Feed motor X, Y, Z(Y-Axis optional) |
Nm |
22 / 22/ 22 |
31 |
Machine length |
mm |
6500 |
32 |
Machine width |
mm |
2100 |
33 |
Machine height |
mm |
2950 |
34 |
Machine weight |
Kgf |
32400 |
35 |
Machine power supply |
|
380V/50HZ |
36 |
CNC system(10.4-inch color LCD.) |
Germany |
BECKHOFF |
37 |
Coolant tank |
L |
600 |
38 |
Lubricating oil tank |
L |
5 |
Main configuration | |||
39 |
Balancing weight device for Z-axis. |
YES |
|
40 |
Safety brake for Z-axis. |
YES |
|
41 |
Flexible coupling for X,Y,Z-axis. |
YES |
|
42 |
Standard working lamp |
YES |
|
43 |
Manual |
YES |
|
44 |
MPG (Optional) |
YES |
|
45 |
Rigid tapping |
YES |
|
46 |
Machine fully protective cover. |
YES |
|
47 |
Coolant tank and chip groove. |
YES |
|
48 |
Special chuck and fixture. |
NO |
Optional |
49 |
Machine chip removal |
NO |
Optional |
50 |
Air-conditioning radiator cabinet |
NO |
Optional |
standard exported wooden case

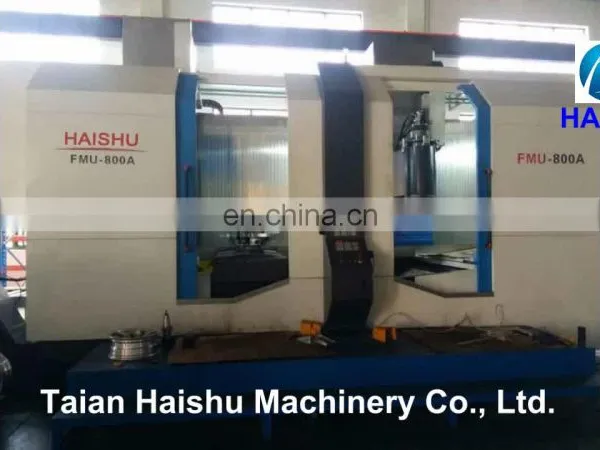

Taian Haishu Machinery Co., Ltd. is the professional CNC machine designer and manufacturer dedicated in supplying all kinds of cnc machine to worldwide customers. We had been always worked hard to become the leader in designing and manufacturing CNC lathes since the foundation in 2001. There are more than 60 talented experts and more than 12,000 square meters factory to guarantee the production and quality of CNC lathe machines. Our innovative, high-quality products include CNC lathe, wheel repair machine, cnc milling machine and other customized CNC machines. Product innovation, quality assurance and customer satisfaction are our long term commitment to our worldwide customers. Hope to build strong business relationships with you!
Our customer from allover the world:
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
