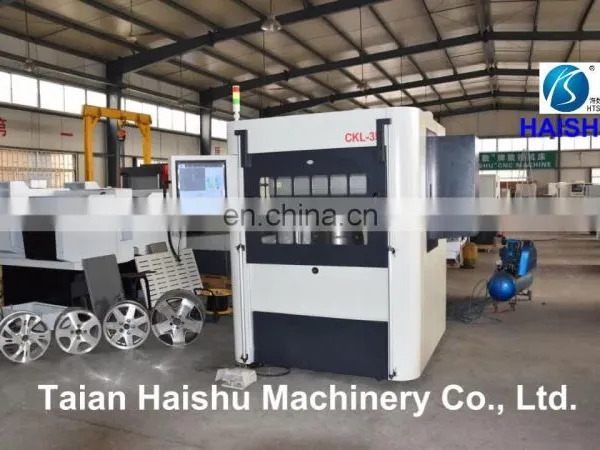

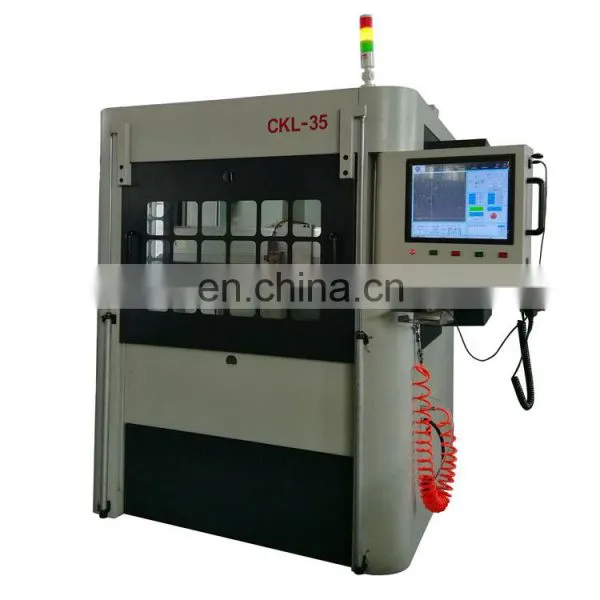

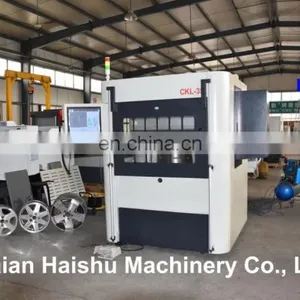

CKL-35 Wheel Repair CNC Vertical Lathe
CKL-35 Wheel Repair CNC Vertical Lathe
Hot Sale Wheel Repair CNC Vertical Lathe newly designed and manufactured by HAISHU Machinery is the professional and specific CNC machine to repair and maintain alloy car wheels. Our CKL-35 Wheel Repair CNC Vertical Lathe is made of fully cast iron lathe bed, self developed specific wheel repair software with teaching and curve automatic generation function, non-contact laser measurement or probe contact measurement an LCD touch screen.The max wheel processing diameter is up to 35 “. The Hot Sale CKL-35 Wheel Repair CNC Vertical Lathe features professionalism, high quality, cost effective and high automation.
CKL-35 Wheel Repair CNC Vertical Lathe Specifications
NO. |
Item |
Unit |
Technical Parameters |
|
|
|
CKL-35 |
1 |
Max. turning diameter |
mm |
1000 |
2 |
Max. machining wheel diameter |
mm |
900(35") |
3 |
Chuck maximum clamping diameter |
mm |
920 |
4 |
Spindle speed (frequency conversion) |
rpm |
50-1200 |
5 |
Cutting feed rate |
mm/min |
0.1-1000 |
6 |
Turret vertical movement distance |
mm |
450mm |
7 |
Turret horizontal movement distance |
mm |
±470 |
8 |
X-axis fast moving speed |
mm/min |
1500 |
9 |
Z axis fast moving speed |
mm/min |
8000 |
10 |
Turret form |
|
2 station row turret |
11 |
Tool handle section |
mm |
25×25 |
12 |
Main motor power |
kw |
5.5 |
13 |
Feed motor |
|
X: 6Nm Z: 2×6Nm |
14 |
Machine positioning accuracy |
mm |
0.015 |
15 |
Machine repeated positioning accuracy |
mm |
0.012 |
16 |
Machine weight |
kg |
1500 |
17 |
Machine dimensions |
mm |
2000×1550×2000 |
CKL-35 Wheel Repair CNC Vertical Lathe Features
Newly developed Vertical Wheel Repair Lathe by HAISHU Machinery for alloy car wheel repair and super finishing.
Cast iron bed. The wheel repair CNC lathe bed is made of cast steel in vertical structure.
Large wheel processing diameter. The max wheel processing diameter is up to 35 “.
Self-developed special wheel repair control software. Automatic wheel surface measurement and program optimization can be realized simultaneously.
Laser non-contact measurement or probe contact measurement are optional. Laser measurement enables fast scanning.
Teaching function. The overall wheel surface of can be repaired, but also can be partially repaired.
LCD touch screen configuration
Compared with the horizontal structure, the mechanical transmission is more stable, the turning performance is better and the machining precision is higher.
Small machine tool space, professional CNC lathe for wheel repair.
CKL-35 Wheel Repair CNC Vertical Lathe Applications
Hot Sale CKL-35 Wheel Repair CNC Vertical Lathe is the best wheel CNC machine to repair and process the alloy car wheel surface, center hole and rim, etc.

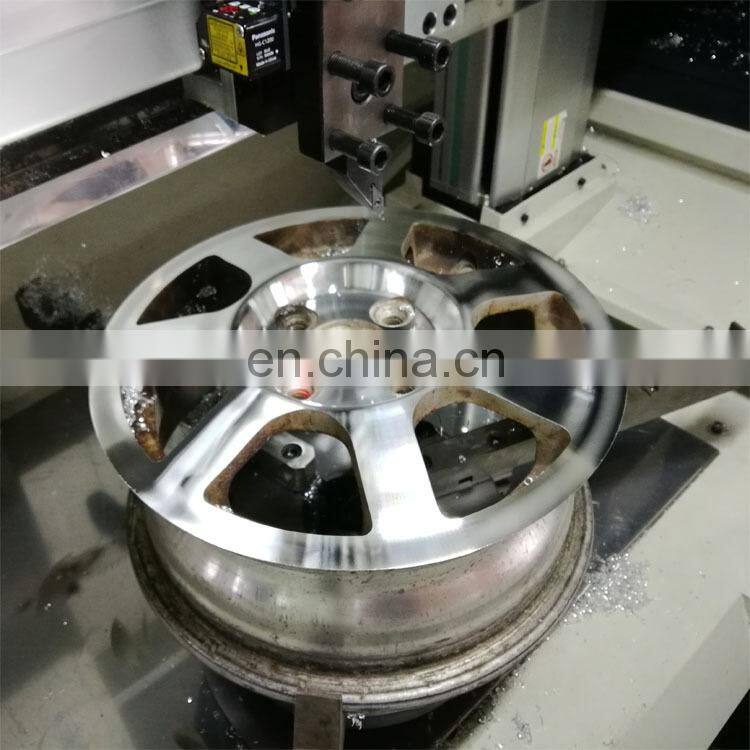

Repaired wheel:
CKL-35 Wheel Repair CNC Vertical Lathe Configurations

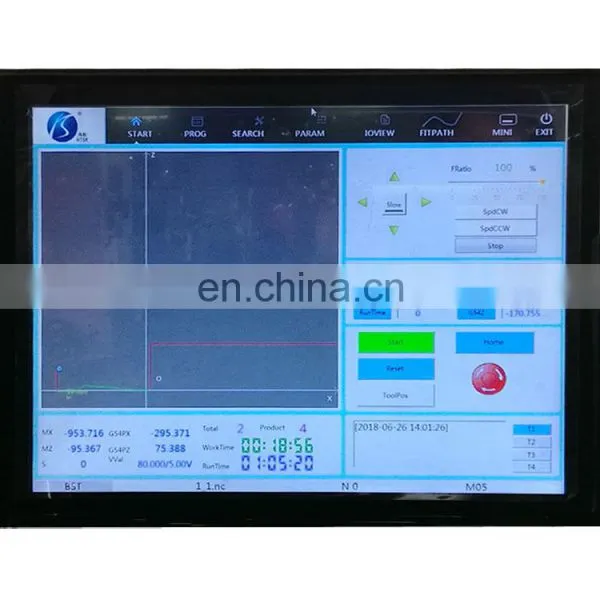

CNC system: “HAISHU” LCD touch screen CNC system.

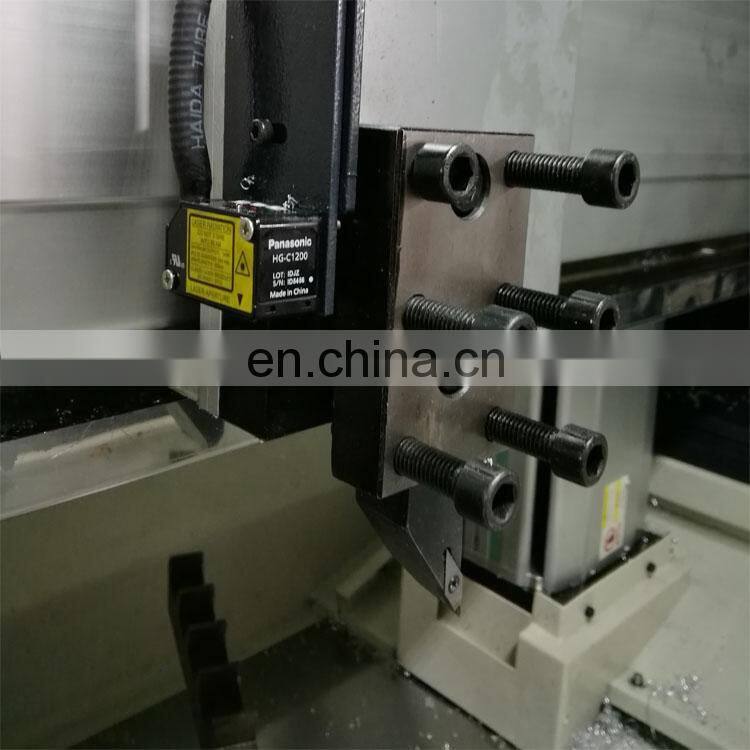

Laser probe
Precision spindle unit
X, Z axis linear guide
Precision screw vice
Rail protection system
Automatic lubrication system
Cooling system
Air gun

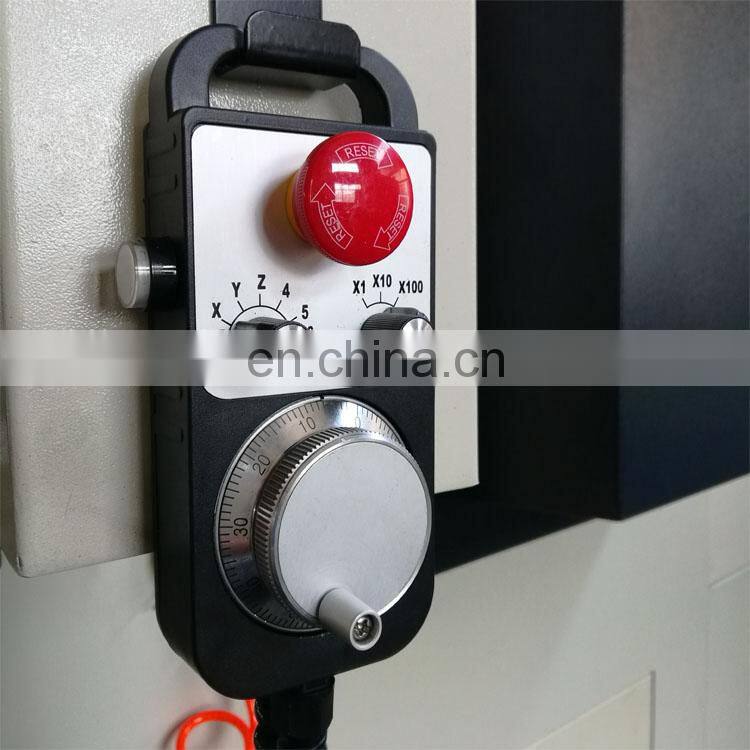

MPG

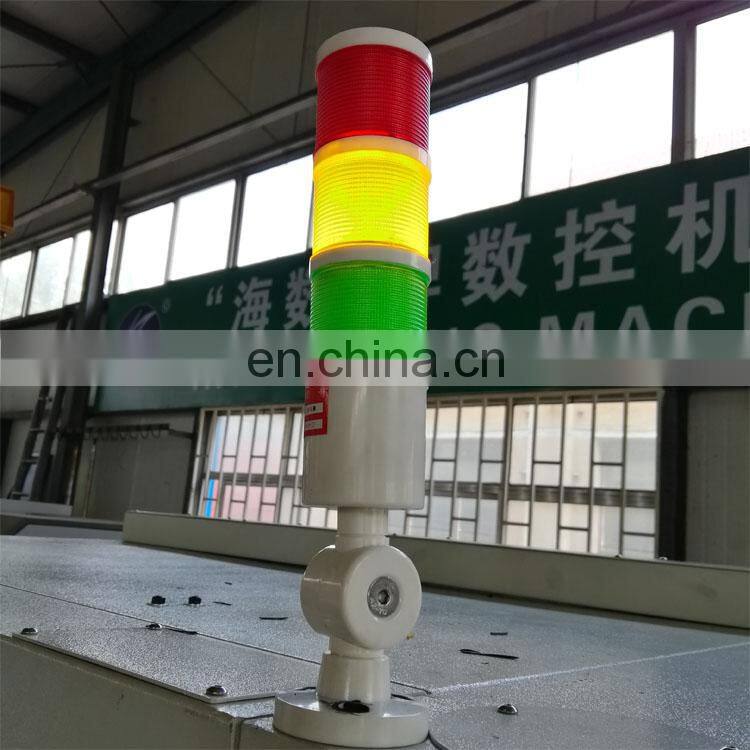

Warning lights
Machine cover full protection
Chip removal box

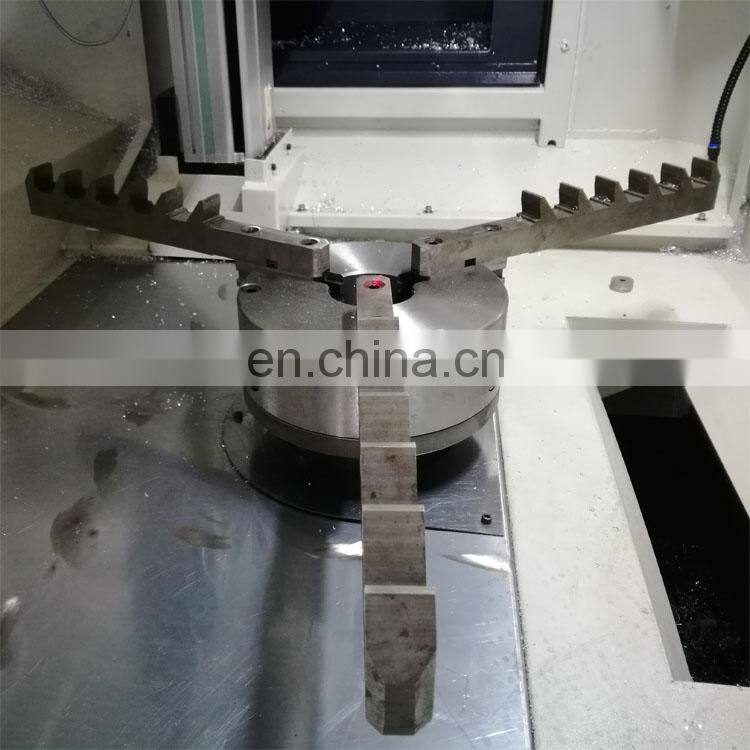

Long jaw chuck
2 Station row turret
The main parts of CKL-35 Wheel Repair CNC Vertical Lathe:
Taian Haishu Machinery co.,Ltd. is specialized in design production and sales of CNC machine tools. The leading product is "HAISHU" brand CNC lathe,CNC Turning center, Machining center, etc..
Our company is equipped with the ministry of domestic trade and foreign trade, with independent import and export right. Product best-selling more than 20 domestic provinces and municipalities and autonomous regions, and exported to the US, Britain, Germany, Italy, Turkey, Greece, Sweden, Bulgaria, Romania, Denmark, Lebanon, Czechoslovakia, New Zealand, Australia, Peru, Ecuador, Colombia, Chile, Argentina, Russia, Belarus, Lithuania, Serbia, Tunisia, Bahrain, South Africa, South Korea, India, Indonesia, Malaysia, Thailand, the Philippines, Egypt, Iran, Bangladesh, Iraq, Yemen, Mongolia,etc. more than 45 countries.
We have years of CNC machine tool development and manufacturing experience, in order to "science and technology innovation, good faith service" business philosophy in close cooperation with old and new customers, grow together, common development.
