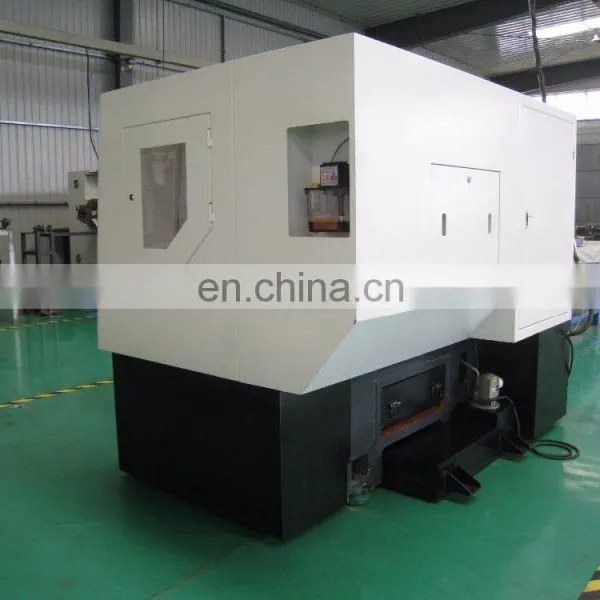

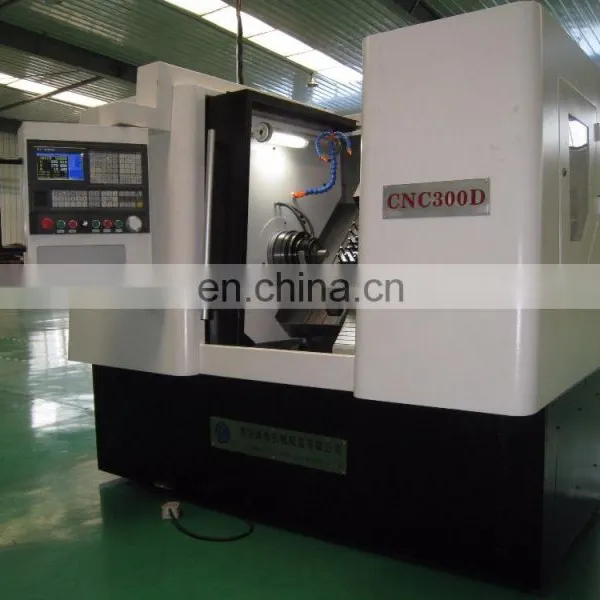

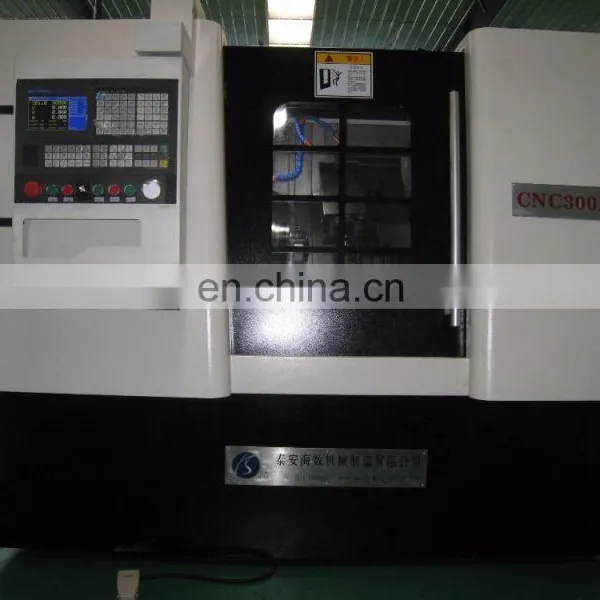

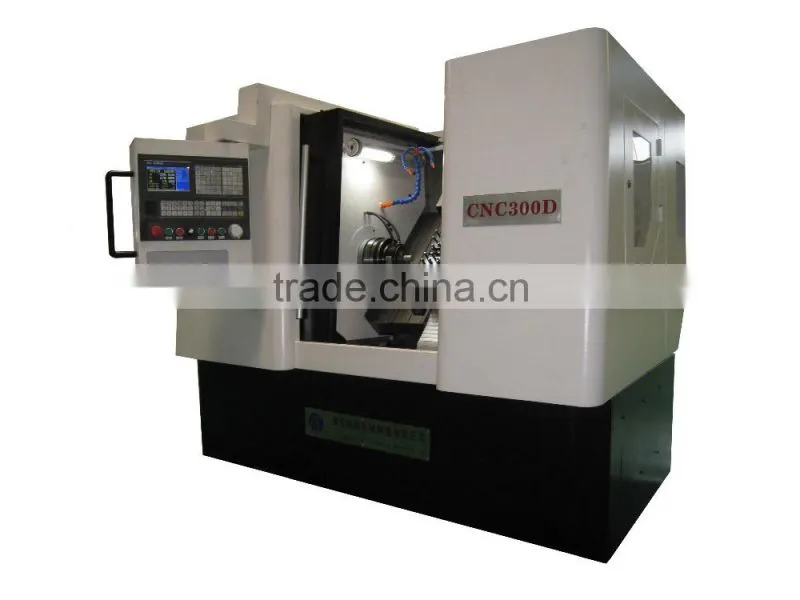

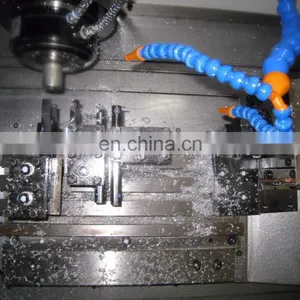

CNC300D Cnc Lathe Metal Cutting Machine With Power Milling Head
- QINGDAO
- T/T Credit Card
You May Like
-
Easily Operated CNC300D Slant Bed CNC Turning Machine From China
-
CNC300D Slant Bed Type CNC Turning Center Machine China Supplier
-
Multi-spindle Machines Cnc Lathe CNC450A Lathe Milling Machine
-
CNC450A High Precision Compound Multi Functions Slant Bed Cnc Lathe
-
CNC450A Slant Bed Type Cnc Lathe Twin Spindle Cnc Lathe Turning Centre
-
CNC300D Slant Bed CNC Lathe
Product Details
| Brand Name | HaiShu | Place of Origin | Shandong, China | |
| Model Number | CNC300D | After-sales Service Provided | Overseas service center available | |
| Condition | New |
Wooden case or as per clients' requirements.
Product Description

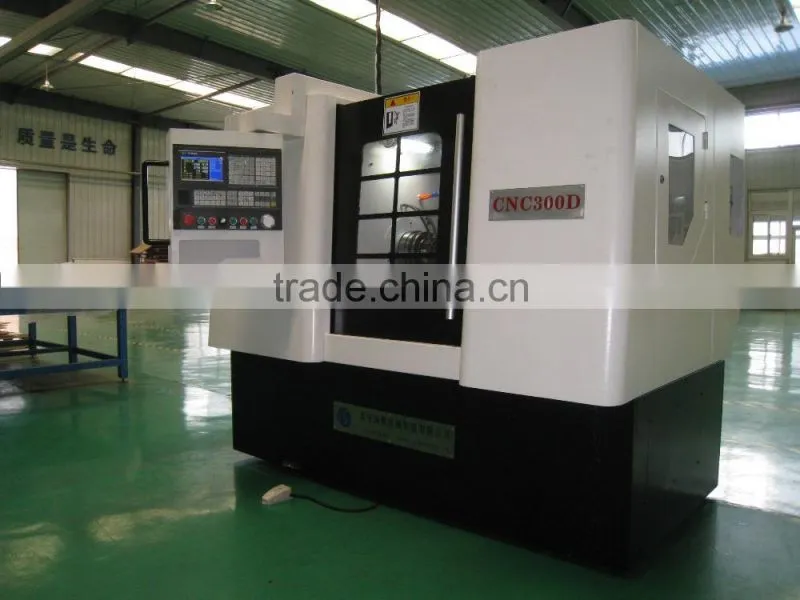

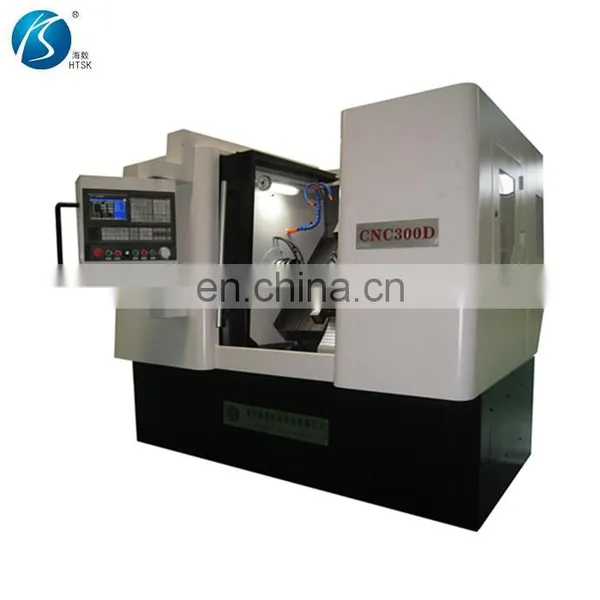

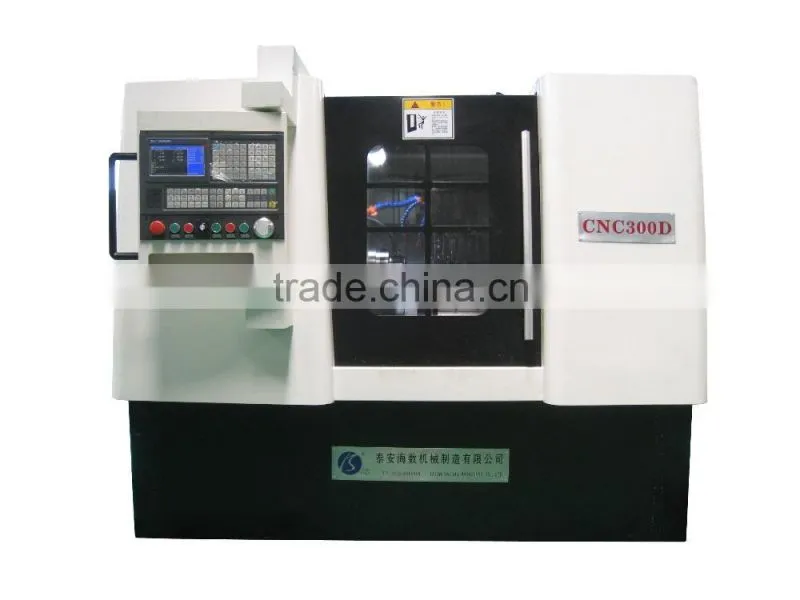

High precision and high speed CNC300D slant bed CNC turning milling/drilling machine from Haishu
Characteristics
1,45 º inclined bed, double linear guide rail, high accuracy, good dimensional stability;
2.The overall structure of integrated design and manufacturing foot of the bed, bed foot of the bed is made of resin sand casting, aging, ultra-audio frequency hardened rails for precision grinding, precision to maintain good;
3.The overall foot of the bed with high stability and rigidity, machine rigidity; fully enclosed protective structure, the machine in water, oil, dust and safety performance is much better than similar products;
4.Tndependent spindle structure while matching precision class P4 spindle bearings, spindle speed, thermal deformation;

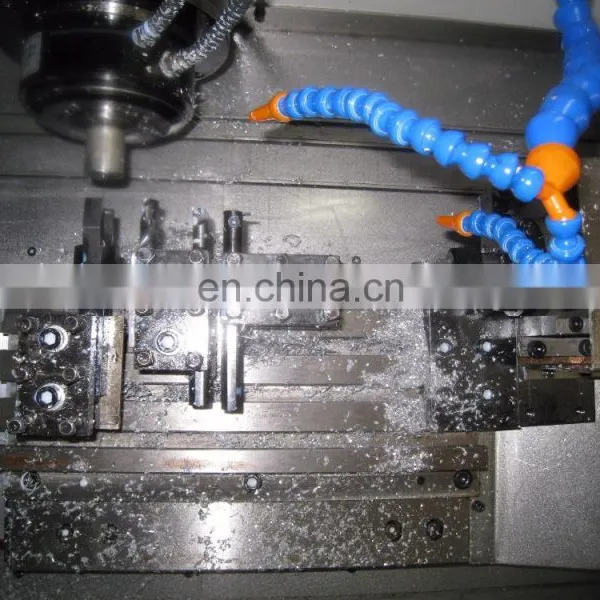

5,X-axis maximum stroke(280 mm), use knife row, high work efficiency.
use:

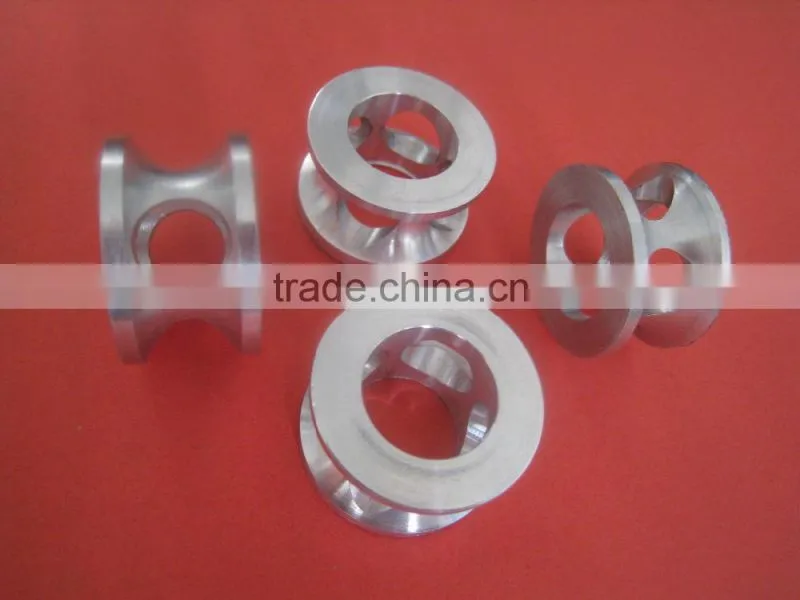

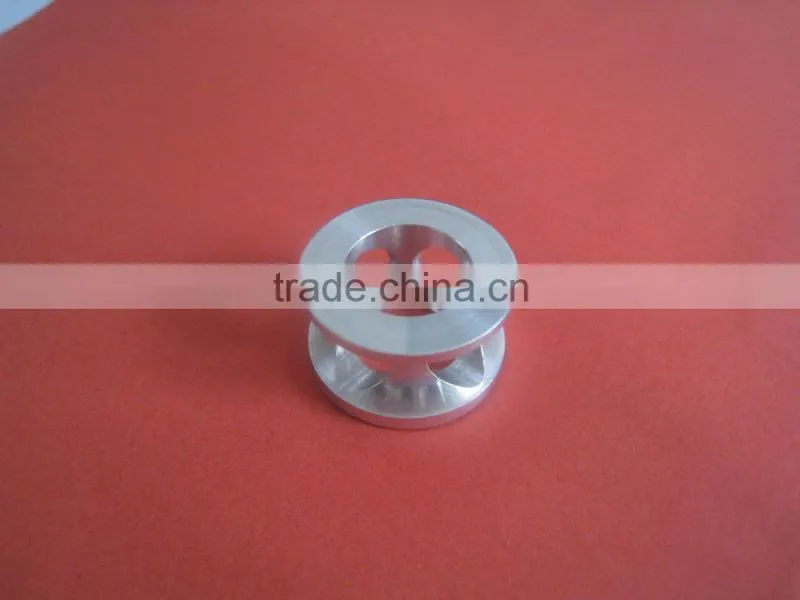

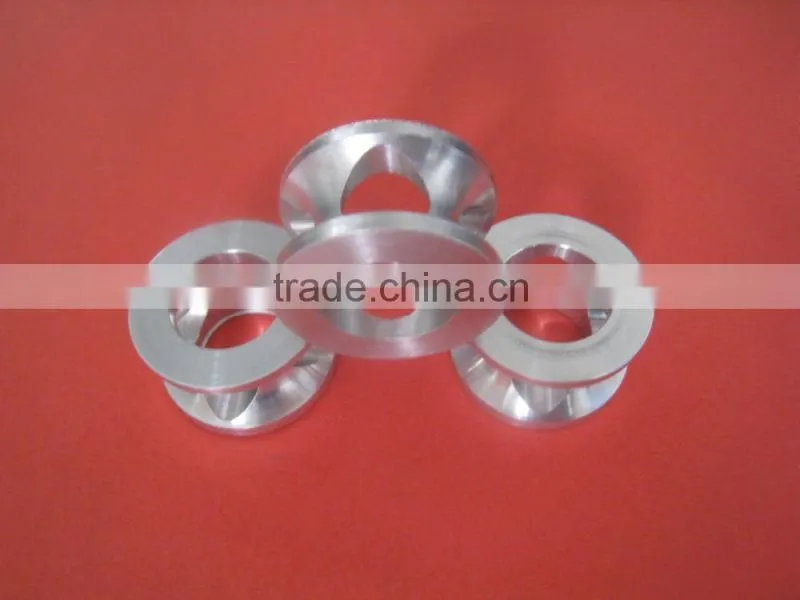

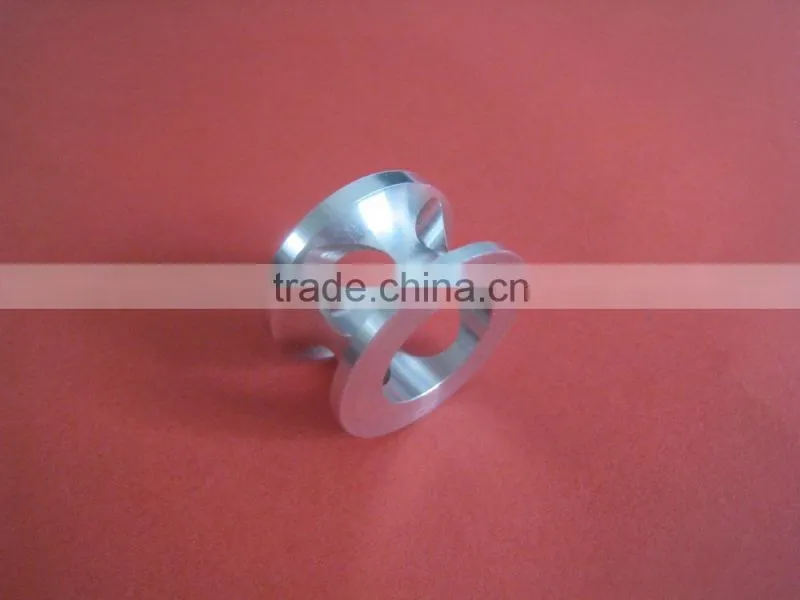

This machine is suitable for high accuracy and conformance requirements for small and medium size disk and short axle parts.
Technical parameters
Item | parameters |
Maximum turning diameter over bed | Φ300 mm |
Maximum turning diameter over skateboard | Φ120 mm |
X-axis maximum stroke | 280 mm |
Z-axis maximum stroke | 320 mm |
Rail width | 325mm |
Spindle head model | ISOA2-5 / MT5 |
Spindle bore | Φ41mm |
Speed | 5000r/min |
Chuck | Φ160 mm(Optional collet) |

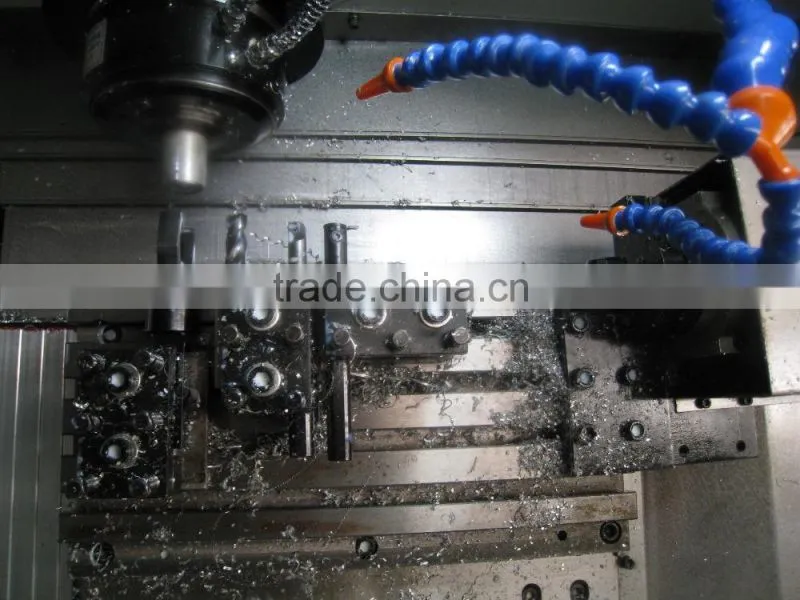

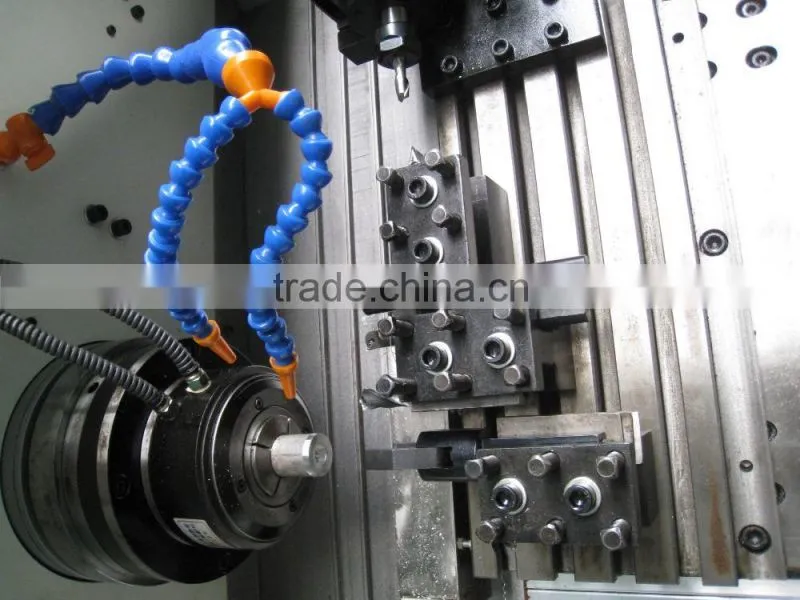

Turret type | row tool |
Tool shank specifications | 20×20 mm |
Knife block center high | 61 mm |
Main motor power | 3.7 kw(Servo) |
X-axis maximum torque | 5 Nm |
Z-axis maximum torque | 7.5 Nm |
Foot of the bed to spindle center height | 935 mm |
Power head clamping tool diameter | Φ2~13mm |
Power head speed range | 3000~12000rpm |
Power head power | 1.5kw |
The machine can clamp the tool number | 8 |
Oversize | 2030×1626×1730mm |
Net weight | 1500 kg |
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine except of CNC system, which guarantee is three years
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
3.6.Customized or special design is welcome.
standard exported wooden case
Taian Haishu Machinery Co., Ltd. is the professional CNC machine designer and manufacturer dedicated in supplying all kinds of cnc machine to worldwide customers. We had been always worked hard to become the leader in designing and manufacturing CNC lathes since the foundation in 2001. There are more than 60 talented experts and more than 12,000 square meters factory to guarantee the production and quality of CNC lathe machines. Our innovative, high-quality products include CNC lathe, wheel repair machine, cnc milling machine and other customized CNC machines. Product innovation, quality assurance and customer satisfaction are our long term commitment to our worldwide customers. Hope to build strong business relationships with you!
Our customer from allover the world:
Company Profile
All the stock machines are mainly sourcing from broke factory, Auctions from China Government, China Custom, also European and American official auctions. All machines are in excellent condition, powered and functional. Major equipment categories are as following fyi: Machining center, Lathe, EDM, Grinder, Hobbing machine, Gear shaping machine, Boring-Mill Machine, Milling machine, Boring machine, Press, Drilling machines in brands of Mitsui Seiki, Mori Seiki, Mazak, Makino, Brother, Citizen, Wasino, Okama, Kuraki, Kitamura, Sodick, Agie, DMG, Okamoto, Mitsubishi, Daewoo, Fanuc, OKK, Toyoda, Matsuura, Yasda, Toshiba, Waida, Howa, Ikegai, Nakamura Tome, Charmilles, YCM and a lot qualified Chinese Brands.
