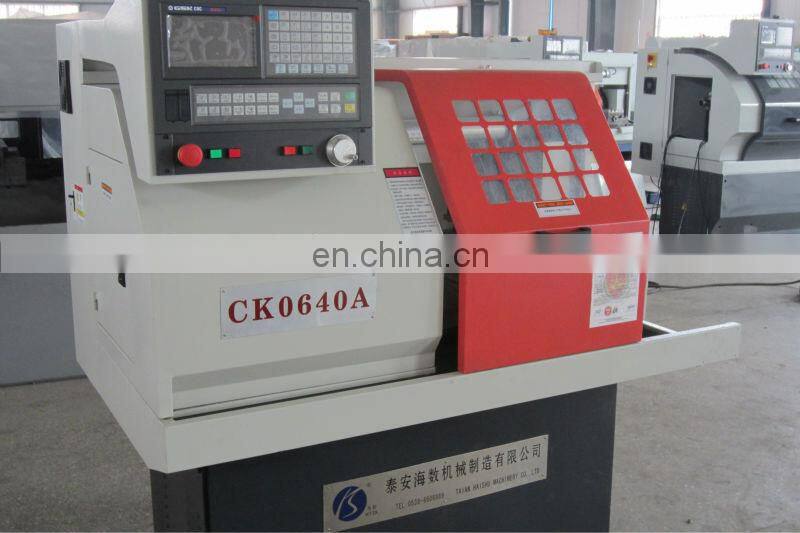

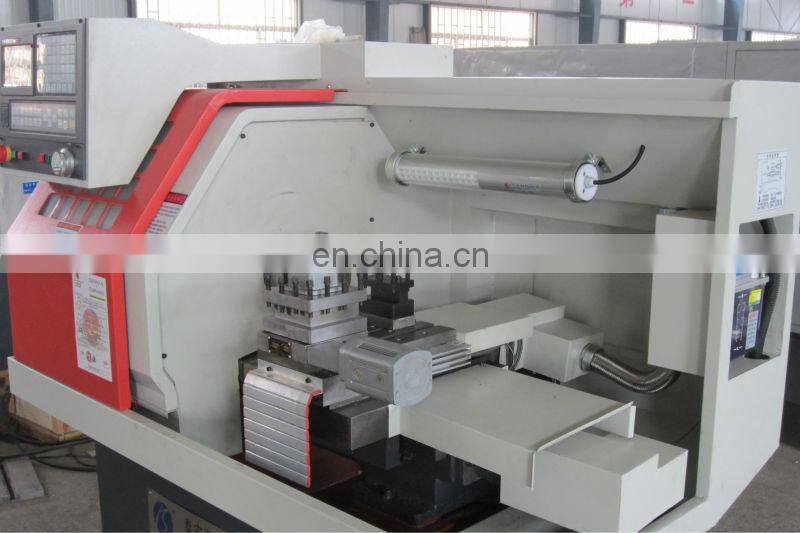

cnc lathe best sellers CK0640A/cnc variable speed mini lathe
High speed andHigh precision CNC mini lathe (CK0640A)
1. Model Number: CK0640A
2. CNC controller: GSK 928 (optional: GSK 980, FANUC, SIEMENS)
3. High efficiency and high rigidity cnc mini lathe
4. Max. swing dia. over bed: 280mm
SPECIFICATE
1.CE Certificate 2.Competitive price
3.Schneider breaker 4.4-position tools
5.Easy for operation 6.Concrete structure
7.High efficient and economic 8.Precision ball screws
9.Hydraulic components 10.Famous brand components
Item |
CK0640A |
Swing over bed(mm) |
Φ280 |
Max rotative diameter on carriage(mm) |
Φ100 |
Max processing length(mm) |
Collect200/Chuck120 |
Spindle nose |
A2-5 |
Through-hole diameter of spindle(mm) |
Φ48 |
Through-hole diameter of drawn pipe(mm) |
Φ40 |
X/Z-axis repeatability(mm) |
0.012/0.013 |
X axis travel(mm) |
260 |
Y axis travel(mm) |
240 |
X-axis rapid traverse rate(m/min) |
5M |
Z-axis rapid traverse rate(m/min) |
8M |
Spindle speed range(m/min) |
150-2200 |
Type of tool carrier |
Gang-type tool carrier |
Main motor power(KW) |
3kw |
L*W*H(mm) |
1600×1000×1550 |
weight(Kg) |
1000kg |
Design:
•Machines were controlled by Mach3 High speed, efficiency and stable performance.
•longitudinal and cross feeds are effected by ball leadscres driven by mixed type step motor.

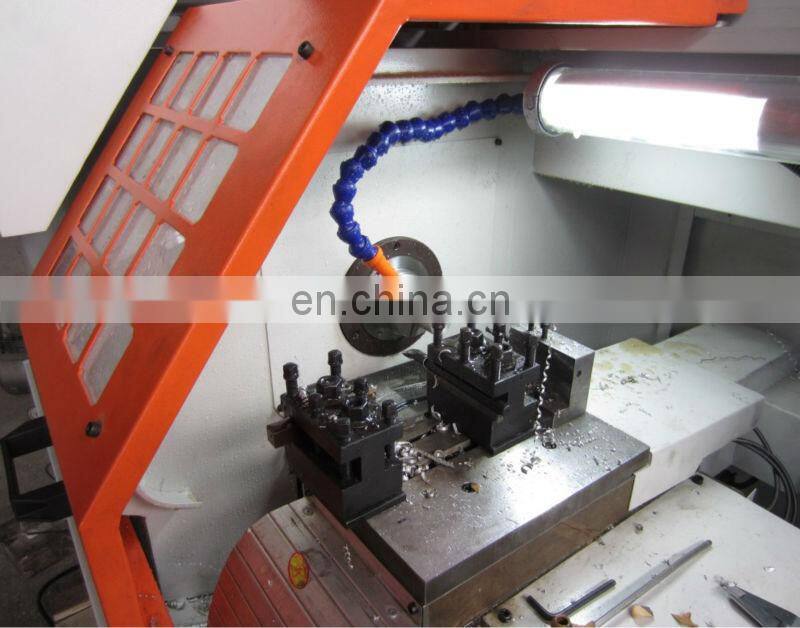

•4-way electrical tool post with auto tool position.
Standard accessories |
optional accessories |
1. GSK 928 CNC controller |
1. GSK980, FANUC or SIEMENS CNC controller |
2. penumatic spring clip |
2. Pneumatic chuck, hydraulic chuck |
3. Electric Lubrication |
3. 4 positions tool post |

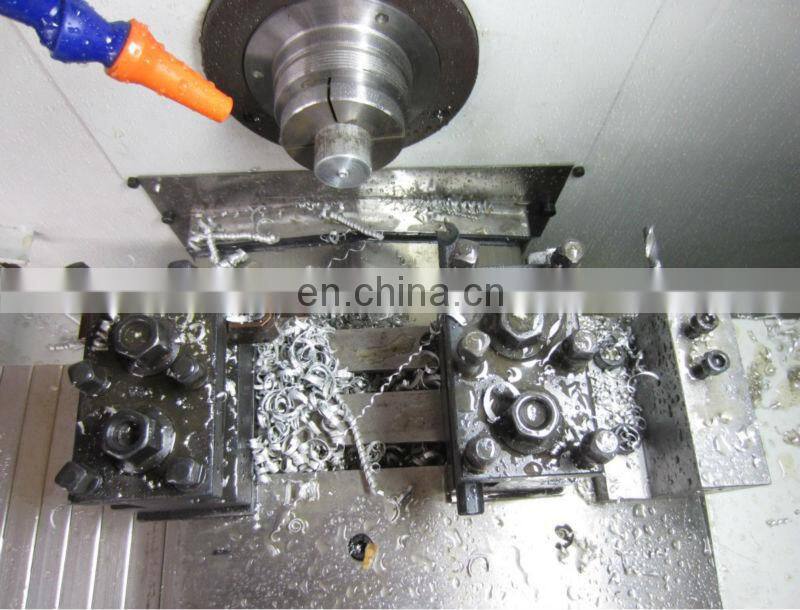

4. gang-type tool carrier |
4. pneumatic tailstock, hydraulic tailstock |
5. Work light |
5. Spring fastener |
6. Foundation pads |
6.auto feeder |
7. coolant |
7. other |
8. manual tailstock |
|
9. User's Manual, Operational Manual |
|
Some of the factors that have attributed to our success and have made us the most preferred
business partner are:
_ State of the art manufacturing unit
_ Qualified and experienced professional team
_ Strong R&D
_ Quality products
_ Timely Execution of projects
_ Competitive pricing
_ Customer focused approach
