Automatic Feeding Collecting Stone Cnc Lathe CK0640A

Automatic Feeding Collecting Stone Cnc Lathe CK0640A thumbnail-1
Automatic Feeding Collecting Stone Cnc Lathe CK0640A thumbnail-2
Automatic Feeding Collecting Stone Cnc Lathe CK0640A thumbnail-3
Automatic Feeding Collecting Stone Cnc Lathe CK0640A thumbnail-4
Automatic Feeding Collecting Stone Cnc Lathe CK0640A thumbnail-5
Automatic Feeding Collecting Stone Cnc Lathe CK0640A thumbnail-6
Automatic Feeding Collecting Stone Cnc Lathe CK0640A photo-1

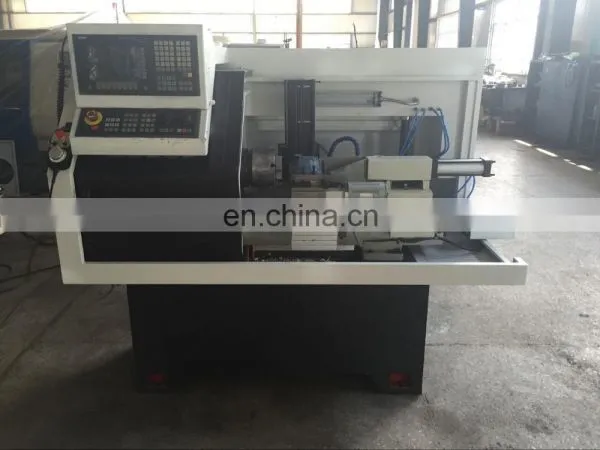

Automatic Feeding Collecting Stone Cnc Lathe CK0640A photo-2

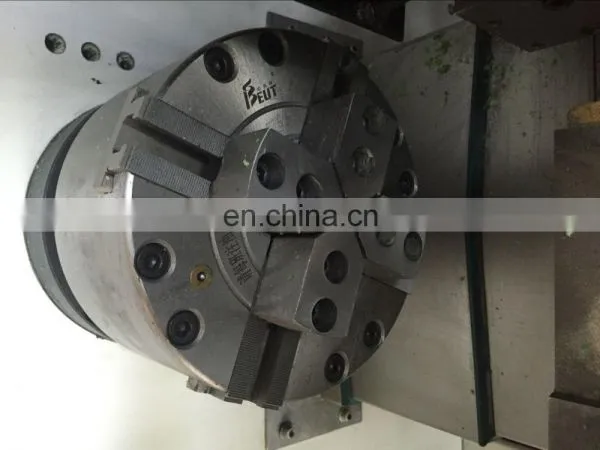

Automatic Feeding Collecting Stone Cnc Lathe CK0640A photo-3

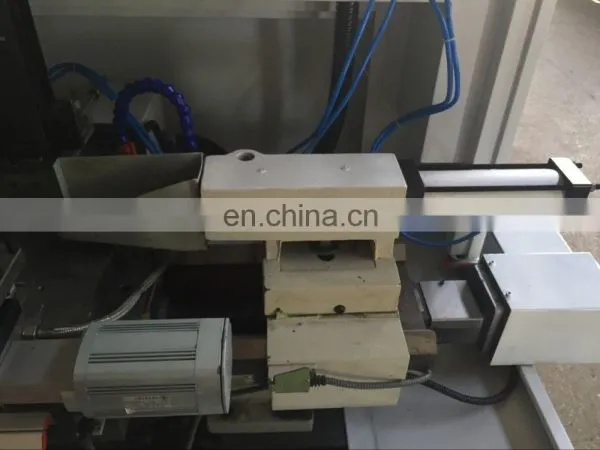

Automatic Feeding Collecting Stone Cnc Lathe CK0640A photo-4

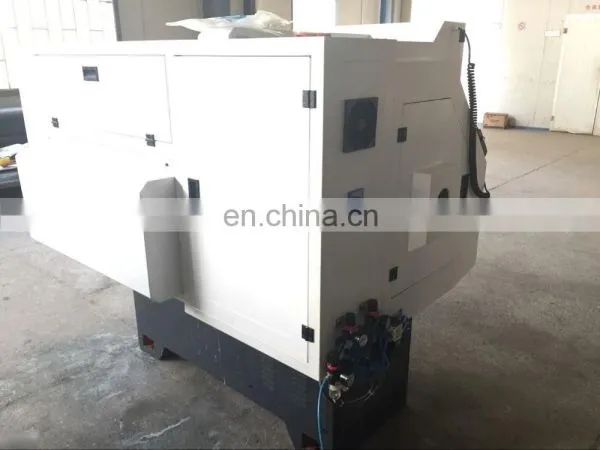

Automatic Feeding Collecting Stone Cnc Lathe CK0640A photo-5
Automatic Feeding Collecting Stone Cnc Lathe CK0640A photo-6
US$ 5,000 - 12,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HaiShu
Place of Origin:
Shandong, China
After-sales Service Provided:
Overseas third-party support available
Contact Supplier Request Quote Chat Now
Horizontal Lathe Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HaiShu
Place of Origin Shandong, China
After-sales Service Provided Overseas third-party support available
Condition New
Product Description

Automatic stone cnc lathe CK0640A special for stone turning and cutting

Item
Unit
Specifications
Max. rotation diameter over bed
mm
Φ250
Max. rotation diameter over pallet
mm
Φ100
Max. workpiece length
mm
Collet 200/Chuck120
Spindle head form

A2-5
Spindle bore
mm
Φ48
Trombone hole diameter
mm
Φ40
Lathe Bed width
mm
260
X/Z repeat positioning accuracy
mm
0.012/0.013
X/Z maximum stroke
mm
260/240
X/Z fast-moving feed
mm/min
5000/8000
Spindle speed range
r/min
150-2200
Main motor power
kw
3
Overall dimensions (L×W×H)
mm
1600×1000×1550
Net weight
kg
1000

Standard configuration:

◆CNC system: GSK928,
◆Pneumatic collet,
◆Tool row,
◆Automatic lubrication system,
◆Turning cooling system.

Select configure

◆CNC system: GSK980, KND, Siemens, Fanuc, etc.,
◆Manual chuck, pneumatic chuck, hydraulic chuck (solid and hollow),
◆Manual tailstock, pneumatic tailstock, hydraulic tailstock,
◆Automatic feeder,
◆Vertical four-station turret.

Detailed Images
Certifications
Packing & Delivery
Packaging
Size
1700(L) * 1100 (W) * 1750 (D)
Weight
1.2 T



Packaging Details
Standard export packing of CK6160A wheels CNC lathe


also can as customer's requirement
