High Performance Mini Cutting Tools CNC Lathe CK0680A
High Performance Mini Cutting Tools CNC Lathe CK0680A Description:
High Performance Mini Cutting Tools CNC Lathe CK0680A is a kind of widely used horizontal CNC lathe equipped with powerful CNC system, a four-station electric turret, automatic lubrication system and the cooling system. HAISHU brand High Performance Mini Cutting Tools CNC Lathe CK0680A is preferable for for metal cutting, turning or drilling functions. This kind of CNC lathe provides stability, rigidity and accuracy for a variety of applications. All our CNC lathes can be custom design and fabricate by your requirement.

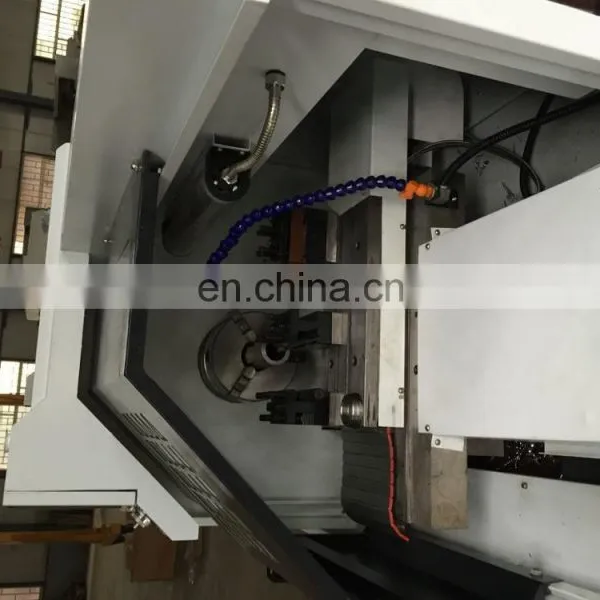

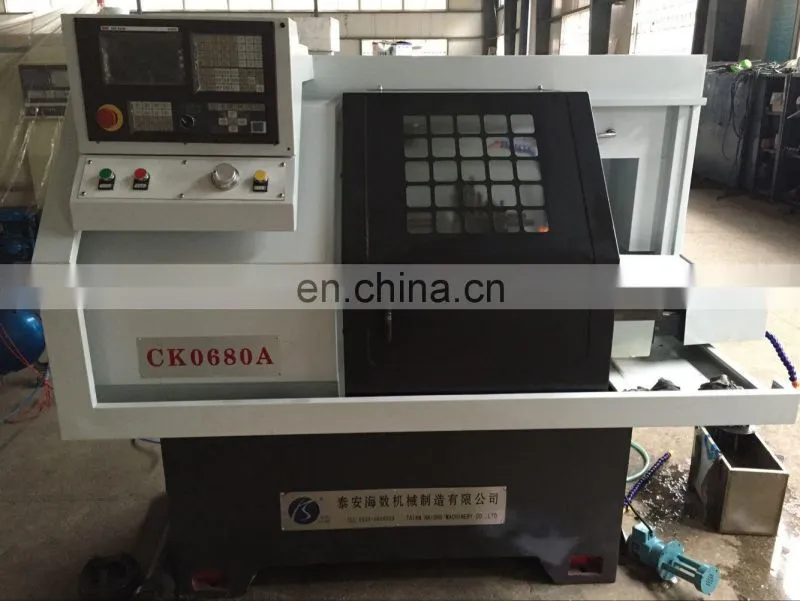

High Performance Mini Cutting Tools CNC Lathe CK0680A Appearance:
High Performance Mini Cutting Tools CNC Lathe CK0680A Specifications:
Items |
|
Specifications |
CK0680A | ||
Max.swing over bed |
mm |
Φ300 |
Max.swing over carriage |
mm |
Φ150 |
Max. length of work piece |
mm |
220 |
Spindle head form |
|
A2-5 |
Spindle bore |
mm |
Φ90 |
Trombone bore |
mm |
Φ80 |
Guide rail width |
mm |
300 |
Guide rail length |
mm |
880 |
X / Z axis repeat positioning accuracy |
mm |
0.012/0.013 |
X-axis max motion traveling schedule |
mm |
320 |
Z- axis max motion traveling schedule |
mm |
220 |
X-axis fast moving speed |
m/min |
5 |
Z- axis fast moving speed |
m/min |
8 |
Range of spindle speed |
r/min |
200-2500 |
Turret form |
|
Row tool or electric turret(optional) |
Power of the main drive motor |
KW |
4 |
Overall dimensions(L×W×H) |
mm |
1550×1000×1500 |
Net weight |
Kg |
1600 |
High Performance Mini Cutting Tools CNC Lathe CK0680A Characteristics:
a. The base of the machine tool, lathe bed guide rail structure reasonable wide, berth box adopts thermal type structure design, the more effectively improve the stability of the machine and the axis of stability.
b. Before and after the spindle bearings are used high precision ball bearing, contact with diagonal work good stability, high load bearing.
c. The wear-resisting cast iron casting, guide rail and the super audio quenching and fine grinding, to ensure the long-term stability of machining precision and service life.
d. X axis and Z axis screw all use of four point one-like for structure design, ensure guide in the work more smoothly and not by lateral force influence, in processing products when dragging plate cutting big and small dragging plate more smoothly and vibrate resistance, it is more convenient to maintain better.
e. Z to guide with double swallow tail the fully closed structure design, in machine tool can work better for protection of guide rail, top end before and after sit move more stable and convenient and quick.
f. Spindle flange connection plate adopts the international standard design, ordinary three claws chuck and hydraulic chuck installation more convenient and quick.
High Performance Mini Cutting Tools CNC Lathe CK0680A Application:
High Performance Mini Cutting Tools CNC Lathe CK0680A can be widely used for valve/plumbing/auto parts and other metal parts to the finishing. multiple products a circular/end face/hole/cutting/any cone/sphere and various metric system of automatic thread cutting.

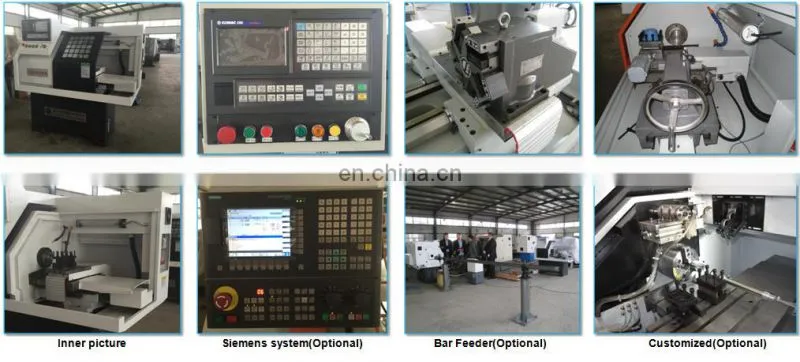

High Performance Mini Cutting Tools CNC Lathe CK0680A Main parts:
High Performance Mini Cutting Tools CNC Lathe CK0680A workpiece:
High Performance Mini Cutting Tools CNC Lathe CK0680A Packing and Delivery:
• Inside package is plastic film, outside is wooden or plywood case
• We can supply fumigation package .
• Shipping, train, express or upon clients' demands.
About HAISHU Machinery
As the professional CNC machine designer and manufacturer, Taian HAISHU Machinery Co., Ltd (Haishu Machinery) is the high-tech enterprise specialized in CNC machine development, production, sales and service since 2001. We have more than 30 professional talented CNC experts and more than 12,000 square meters manufacturing factory. More than 16 series 80 kinds of CNC machines and related parts had been manufactured to satisfy your pumping requirements. Our high quality and innovative CNC wheel machine products include wheel CNC machine, wheel repair machine, brake drum lathe and other customized CNC machines custom CNC equipment for special requirements.
HAISHU Machinery is not only manufacturing best quality CNC wheel machine products but also providing custom design, fabrication and after sale service. If you have any questions or inquiries, please contact me, we will reply as soon as possible.
