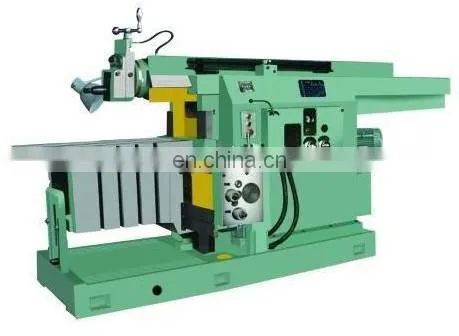

Factory Promotion Sale Price BC60100 Shaper Machine With Certificate
US$ 5,350 - 7,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
WMT
Place of Origin:
Anhui, China
Model Number:
BC60100
Payment & Shipping
Payment Methods:
Port of Shipment:
shaping machine delivered at Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale Price Shaper Machinery BC6050 Metal Shaping Machine With CertificateUS$ 5,300 - 5,450MOQ: 1 -
New Product Cheap Shaper B635A Metal Shaping Machine With CEUS$ 3,750 - 3,900MOQ: 1
-
Popular Model B5020 Factory Sale Price Cheap Keyway Slotting MachineUS$ 8,000 - 10,000MOQ: 1 Set
-
Model BK5018 Good Price CNC Slotting MachineUS$ 10,000 - 13,000MOQ: 1 Set
-
NEW ARRIVAL Cheap SL100 Small Slotting MachineUS$ 1,000 - 1,500MOQ: 1 Set
Brand Name
WMT
Place of Origin
Anhui, China
Model Number
BC60100
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
Product Description
Features:
This shaper machine is embodied with advanced design, attractive appearance, reasonable performance, stable performance, brief operation and convenient maintenance.
| Specifications | BC60100 | ||
| Maximum Length(mm) | 1000 | ||
| Horizontal travel of worktable(mm) | 800 | ||
| The max travel from the bottom of Ram to Worktable(mm) | 400 | ||
| Vertical Travel of Worktable(mm) | 380 | ||
| Dimension of Worktable Size(L×W)(mm) | 1000×500 | ||
| Travel of Blade Frame(mm) | 160 | ||
| The max rotatory angel of blade frame(°) | ±60° | ||
| Max Size of Planing tool(W×T)(mm) | 30×45 | ||
| Ram reciprocating times per minutes | 15,20,29,42,58,83 | ||
| Swivel range of worktable mechanic feedings | Ten grades of horizontal feedings(mm) | 0.3~3 | |
| Eight grades of vertical feeding(mm) | 0.15~0.5 | ||
| Rapid feed rate of worktable | Horizontal feeding(mm) | 3 | |
| Vertical feeding(mm/min) | 0.5 | ||
| T-slot in the middle of worktable(mm) | 22 | ||
| Main motor power(kw) | 7.5 | ||
| Overall dimension(L×W×h)(mm) | 3640×1575×1780 | ||
| Net. W/Gross .W(kg) | 4870/5150 | ||
