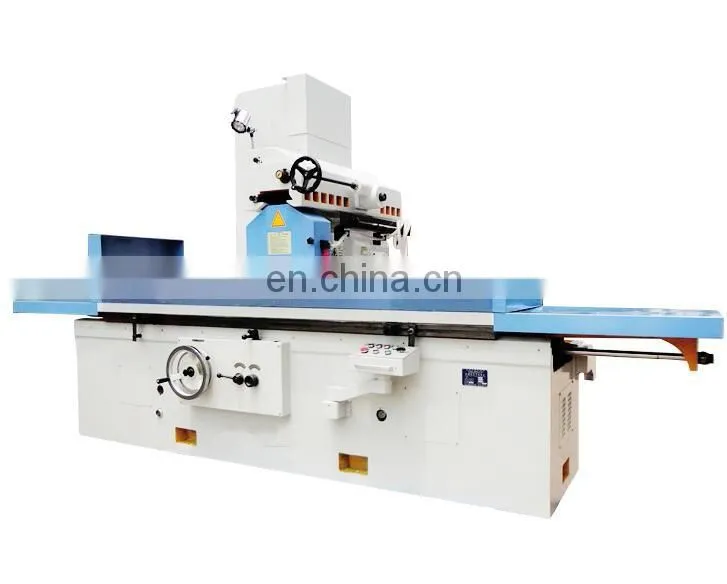

M7150 Hydraulic Surface Grinding Machine for Metal Work With CE

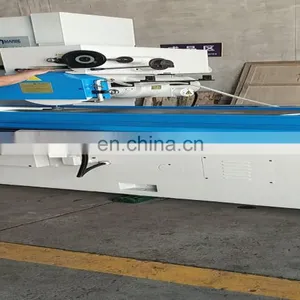

M7150 Hydraulic Surface Grinding Machine for Metal Work With CE thumbnail-1
M7150 Hydraulic Surface Grinding Machine for Metal Work With CE thumbnail-2
M7150 Hydraulic Surface Grinding Machine for Metal Work With CE thumbnail-3
M7150 Hydraulic Surface Grinding Machine for Metal Work With CE thumbnail-4
M7150 Hydraulic Surface Grinding Machine for Metal Work With CE thumbnail-5

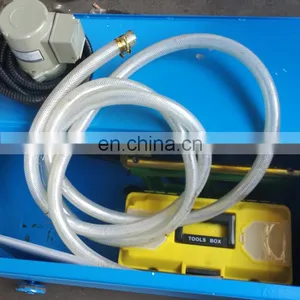

M7150 Hydraulic Surface Grinding Machine for Metal Work With CE thumbnail-6
M7150 Hydraulic Surface Grinding Machine for Metal Work With CE thumbnail-7
M7150 Hydraulic Surface Grinding Machine for Metal Work With CE photo-1

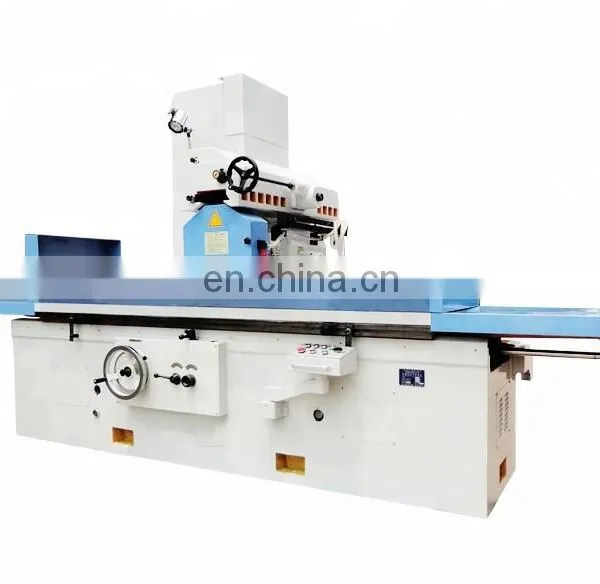

M7150 Hydraulic Surface Grinding Machine for Metal Work With CE photo-2
M7150 Hydraulic Surface Grinding Machine for Metal Work With CE photo-3
M7150 Hydraulic Surface Grinding Machine for Metal Work With CE photo-4
M7150 Hydraulic Surface Grinding Machine for Metal Work With CE photo-5

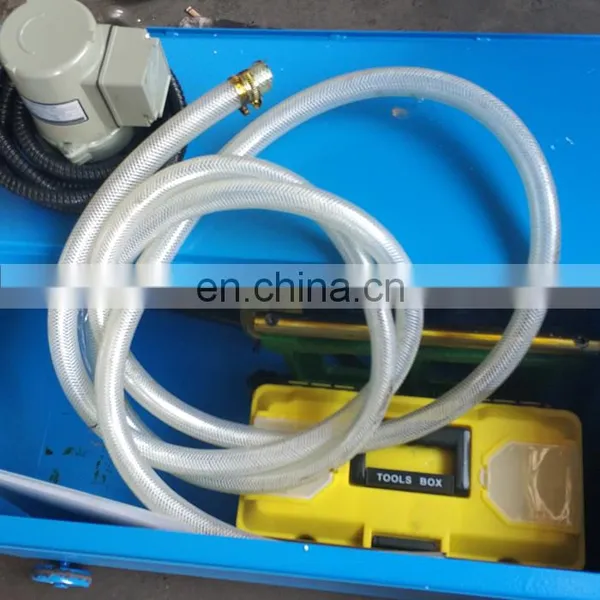

M7150 Hydraulic Surface Grinding Machine for Metal Work With CE photo-6

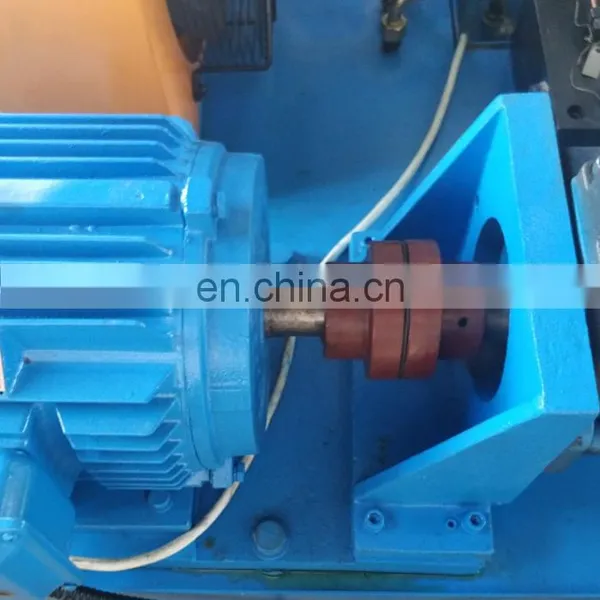

M7150 Hydraulic Surface Grinding Machine for Metal Work With CE photo-7
US$ 20300.00 - 15.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
WMT
Place of Origin:
Anhui, China
Type:
Universal
Contact Supplier Request Quote Chat Now
Gantry Machining Center Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name WMT
Place of Origin Anhui, China
Type Universal
Certification CE ISO9001
After-sales Service Provided Engineers available to service machinery overseas
Weight 4600KG
Dimension(L*W*H) 4500x2700x2800
Voltage 220V 380V
Condition New
Power(W) 7.5KW
CNC or Not Normal
Max. Grinding Length 500mm
Max. Grinding Diameter 25mm
Product Description


Specification
Units
M7150x1250
M7150x1600
M7150x2000
Size of work table(L x W x H)
mm
1250x500
1600x500
2000x500
Max. Longitudinal movement of worktable
mm
1350
1700
2100
Max. Distance from the spindle centerline to the worktable surface
mm
800
800
800
Max. Cross movement of grinding herd
mm
580
580
580
Max. Vertical movement of grinding head
mm
600
600
600
Vertical movement of the grinding head by hand wheel/Every lattice
mm
0.01
0.01
0.01
Vertical movement of the grinding head by hand wheel/each turn
mm
1
1
1
Rapid lifting motor/power
KW
0.37
0.37
0.37
Rapid lifting motor/speed
R/min
1450
1450
1450
Abrasive wheel dim (L x D x W)
mm
400x127x40
400x127x40
400x127x40
Speed of grinding wheel
r/min
1440
1440
1440
Total power of motor
KW
12
14
14
Power of spindle motor
KW
7.5
7.5
7.5
Power of oil pump motor
KW
4
5.5
5.5
Processing accuracy
mm
0.015/1000
0.015/1000
0.015/1000
Surface roughness
um
Ra:0.63
Ra:0.63
Ra:0.63
Package(L x W x H)
mm
3800x2700x2800
4500x2700x2800
5600x2700x2800
Net weight
Kg
4500
4600
4700

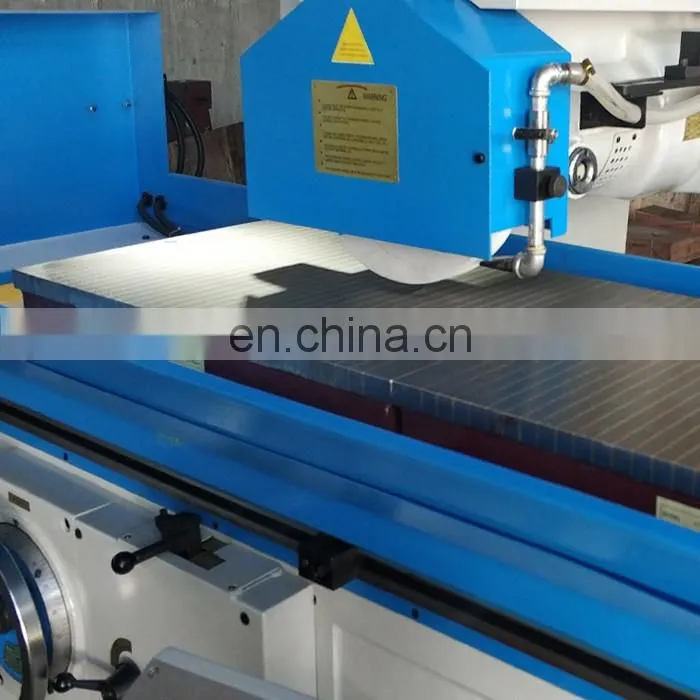

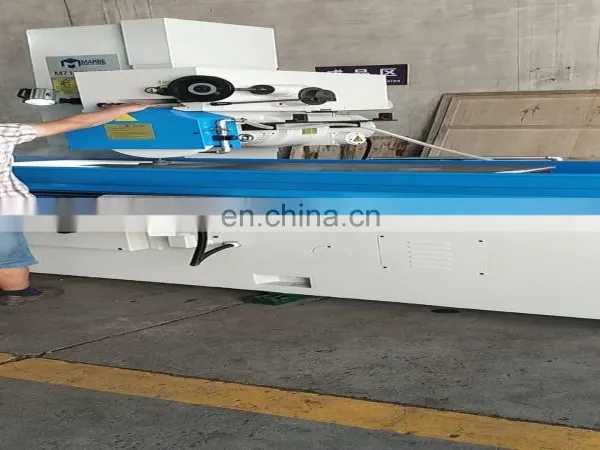

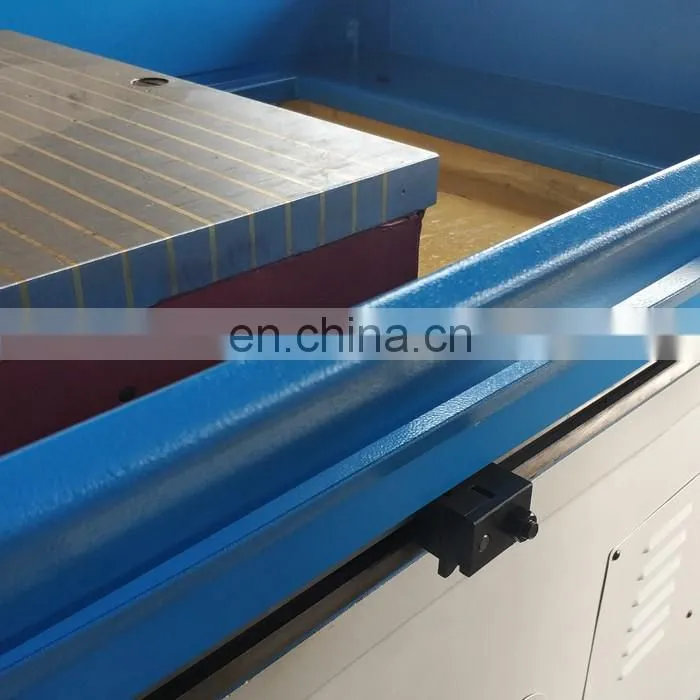

Products Show
Our Company
Packing & Delivery
Customer Photo
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
