MQ8260A X1600 High Quality Cheap Sale Crankshaft Grinding Machine
US$ 19,000 - 21,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
WMT
Place of Origin:
Anhui, China
Model Number:
MQ8260C
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory SalesTool Grinder M30A U2 Type Universal Cutter Grinder Polishing MachineUS$ 265 - 365MOQ: 1 Set -
M0620 Cutter Sharp Polishing Machine With CE StandardUS$ 1,000 - 1,500MOQ: 1 Set
-
Hydraulic Automatic Surface Grinding Machine MY1224 Hydraulic Type With CEUS$ 5,450 - 5,600MOQ: 1
-
Small Surface Grinding Machine Price Surface Grinder for M618AUS$ 1,000 - 1,500MOQ: 1 Set
-
Small Surface Grinding Machine Model MJ7115 With CE StandardUS$ 1,300 - 1,500MOQ: 1 Set
Brand Name
WMT
Place of Origin
Anhui, China
Model Number
MQ8260C
Certification
CE certificate
After-sales Service Provided
Engineers available to service machinery overseas
Weight
7000kgs
Dimension(L*W*H)
4900*2037*1584mm
Voltage
customer appoint
Condition
New
Power(W)
11.12kw
CNC or Not
Normal
Max. Grinding Diameter
580*2000mm
Specifications
Crankshaft grinding machine MQ8260C/1600 Three different work speeds are obtainable by the use of the belts in the workhead

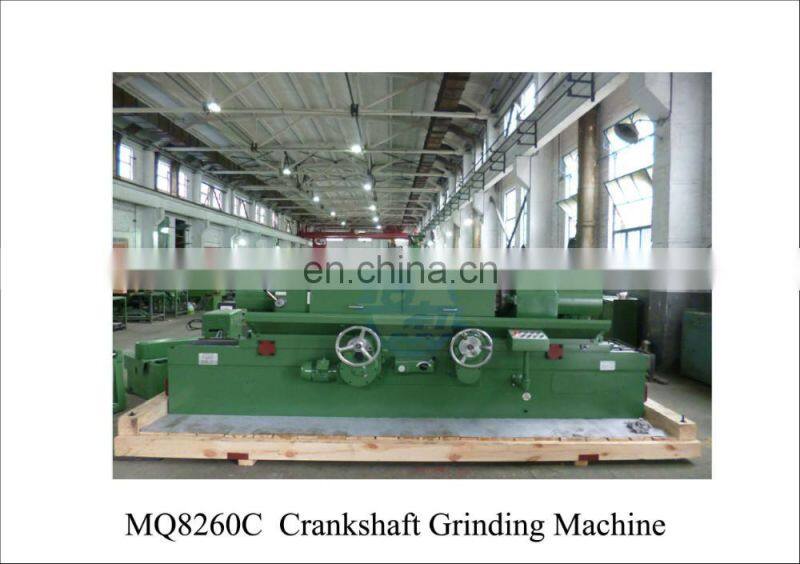

Crankshaft grinding machine MQ8260C/1600
Features
The crankshaft grinder model MQ8260C is modified on the basis of the model MQ8260A and intended for use in the automobiles, tractors, diesel engine works and their repair shops to grind the joumals crankpins of crankshafts.
| Model | MQ8260Ax1600 | MQ8260Ax1800 | ||
| Max. work diameter x Max. length | Φ600x1600 mm | Φ600x1800 mm | ||
| Capacity | Max. swing over table | Φ600 m | ||
| Work diameter ground with steady rest | Φ30x100 mm | |||
| Throw of crankshaft | 110 mm | |||
| Max. work length ground in 3 jaw chuck | 1400 mm | 1600 mm | ||
| Max. work length ground between centers | 1600 mm | 1800 mm | ||
| Max. work weight | 120 kg | |||
| Headstock | Center height | 300 mm | ||
| Work speed (rpm) | 25,45,95 | |||
| wheelhead | Max. cross movement | 185 mm | ||
| Wheelhead rapid approach & withdrawal | 100 mm | |||
| Wheelhead feed per turn of cross feed handwheel | 1 mm | |||
| Wheel feed per grad of cross feed handwheel | 0.005 mm | |||
| Grinding wheel | Wheel spindle speed | 740, 890 rpm | ||
| Wheel peripheral speed | 25.6~35 m/sec | |||
| Wheel size | Φ900x32xΦ305 mm | |||
| Table | Table traverse per turn of handwheel coarst | 5.88 mm | ||
| Table traverse per turn of handwheel fine | 1.68 mm | |||
| Table swivel (taper 18/100) | 5° | |||
| Table swivel per grad of scale (taper 1:50) | 10 | |||
| Overall capacity of motor | 9.82 kw | |||
| Overall dimensions (LxWxH) | 4166x2037x1584 mm | |||
| Packing dimensions (LxWxH) | 4300x2200x2000 mm | |||
| Weight | 6000 kg | 6200 kg | ||
| Working accuracy | Ovality new standard | 0.005 | ||
| Cylindricity | 0.01 | |||
| Roughness | Ra 0.32 | Ra 0.32 | ||
