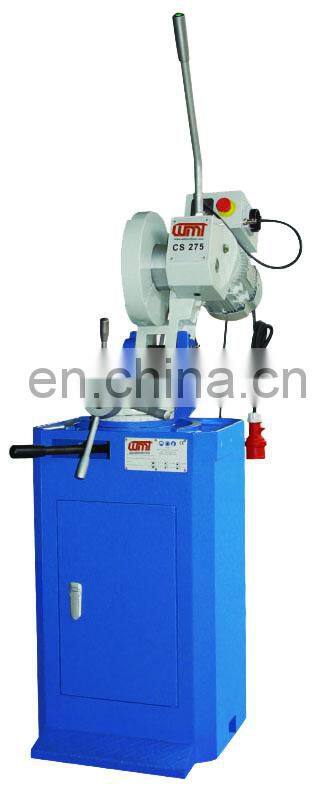

Help CenterCS275 Bench Type Metal Circular Sawing Machine
Related Products
-
GH4240 Metal Metal Cut Saw Band Sawing Machine Band Saw With CEUS$ 4,500 - 6,800MOQ: 1 Set -
CS250 China Mini Metal Cutting Circular Sawing MachineUS$ 690 - 720MOQ: 1 Set
-
BS115 Mini Metal Cutting Portable Band Saw Machine With CEUS$ 200 - 260MOQ: 1 Set
-
GH4250 Metal Cutting Band Saw Machine for SaleUS$ 4550.00 - 4650.00MOQ: 1 Set
-
GH4228A Automatic Metal Cutting Band Saw Machine With CEUS$ 650 - 4,500MOQ: 1 Set
Vice complete with anti-burr device
Movable head 45° right and left
Reduction unit in oil bath
Membrane pump for coolant
Our circular saw features a double speed motor and with low noise can slow down through worm and gear.
The HSS saw blade of our circular saw is highly efficient and durable.
The 24V low-voltage controlled hand switch is convenient for operation
The single clamp structure of CS250/275 can rotate 45°right and left to side for cutting.
The safety hood of saw blade opens or closes according to the cutting needs, making it safety.
The cooling system of circular saw can prolong the service life of saw blade and improve the precision of the workpiece.
| Specification | CS275 CS275A | CS315 CS315A | |
| Motor power | 2.0kw/1.4kw | 1.5kw/0.75kw | |
| Saw blade speed | 96/48rpm | 38/19rpm | |
| Head rotation | ±45° | ±45° | |
| Clamping vice | Double | Double | |
| Max. vice Opening | 110mm | 140mm | |
| Coolant pump Motor | 40W/400V/50HZ | 40W/400V/50HZ | |
| Air pressure | / | / | |
| 6kg/cm2(120L/min) | 6kg/cm2(120L/min) | ||
| Saw blade size | Max. diameter | Φ275mm | Φ315mm |
| Bore | Φ40mm | Φ40mm | |
| Pin holes | 2×Φ8×PCD55mm | 2×Φ8×PCD55mm | |
| 0° Max. cutting capacity | Round | 60 | 70 |
| Square | 60×60 | 70×70 | |
| rectangle | 100×60 | 130×70 | |
| 45° Max. cutting capacity | Round | 60 | 70 |
| Square | 60×60 | 70×70 | |
| rectangle | 70×60 | 90×70 | |
| Packing dimensions(L×W×H) | 940×560×1470mm | 980×630×1530 | |
| 1040×560×1470mm | 1100×630×1560 | ||
| N.W/G.W | 175/200kgs | 235/265kgs | |
| 210/245kgs | 270/320kgs | ||

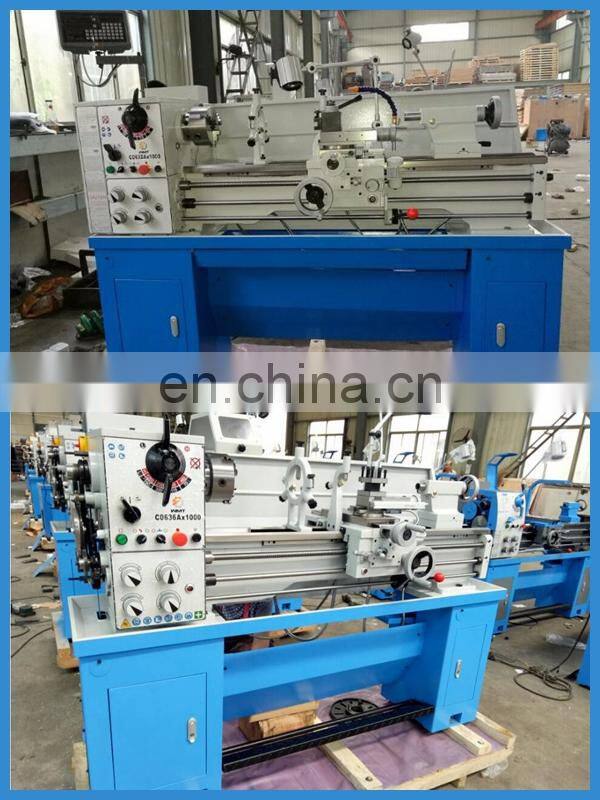

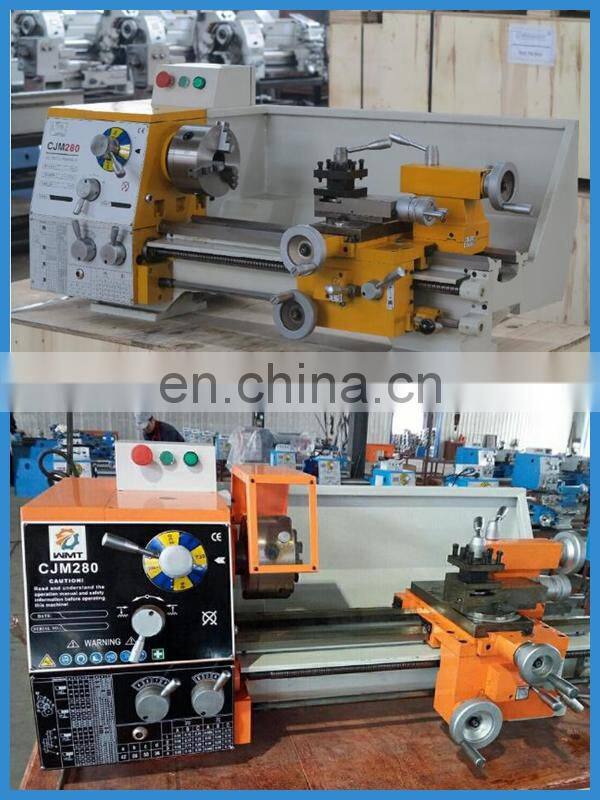

Our company also have the lathe machines(left is small lathe machine, right is bench lathe machine), pls click.
Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
