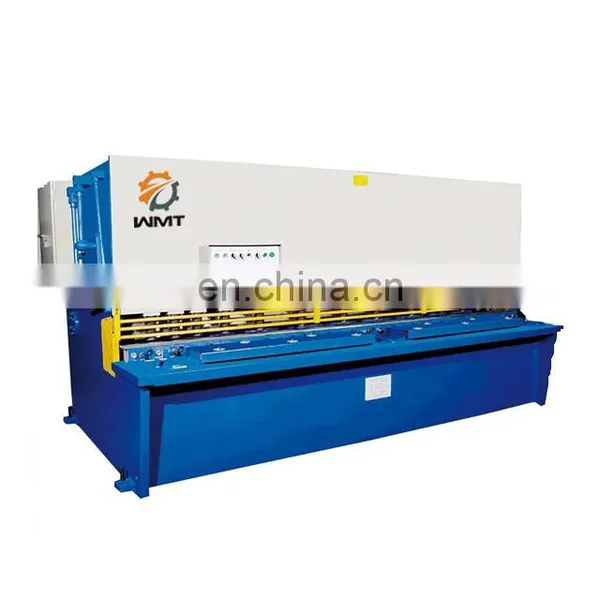

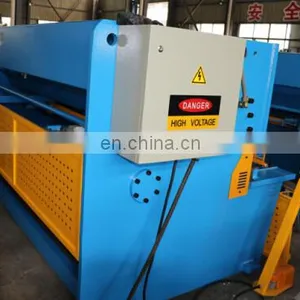

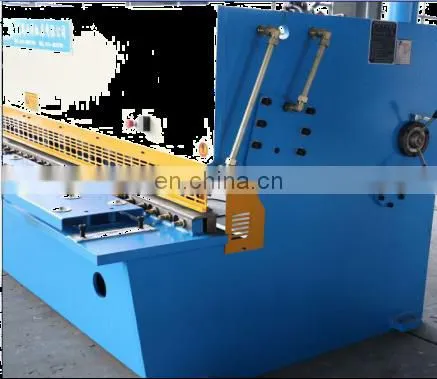

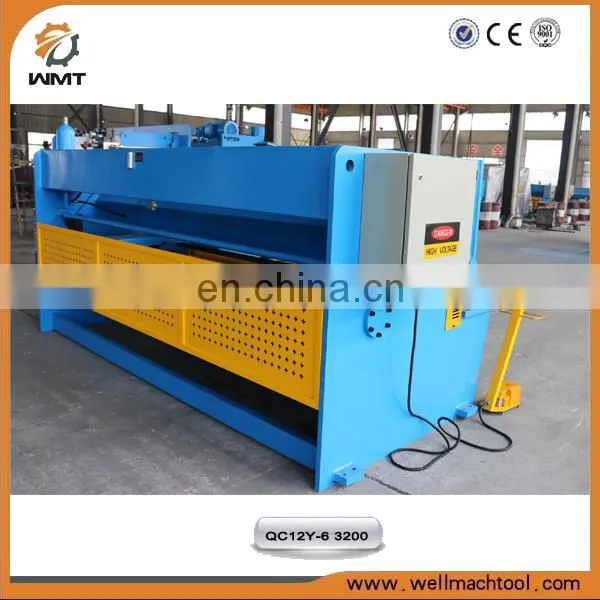

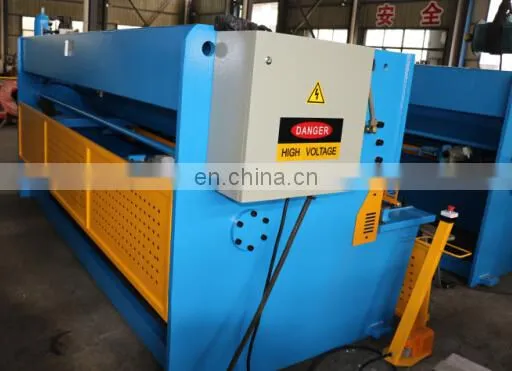

sheet metal press brake shearing machine QC12Y-6 3200 with shearing machien good price.
1.Specification of shearing machine
| Name | Data | Unit | Remarks | |||||
| Max cutting thickness | 6 | mm | ||||||
| Max cutting width | 3200 | mm | ||||||
| Intensity of the sheared material | 500 | N/mm2 | ||||||
| Shearing angle | 1°30′ | |||||||
| Max stroke of backgauge | 20-600 | |||||||
| Times of stroke | 14 | Per/min | ||||||
| Distance between vertical columns | 3590 | mm | ||||||
| The length of blade | 3300 | mm | ||||||
| Height of the work bench | 700 | mm | ||||||
| Thickness of bench support plate | 30 | mm | ||||||
| Main motor | Model | Y132M-4 | China | |||||
| Power | 7.5 | KW | ||||||
| Speed | 1450 | rpm | ||||||
| Backgauge motor | Model | Y802-6 | B5 | |||||
| Power | 0.55 | KW | ||||||
| Speed | 900 | rpm | ||||||
| Axial piston Pump | Model | CP1-16-P-10R | China | |||||
| Power | 16 | L/min | ||||||
| Pressure | 31.5 | MPa | ||||||
| Dimensions | Length | 3850 | mm | |||||
| Width | 1700 | |||||||
| Height | 1800 | |||||||
| Weight | 5500 | KG | ||||||
Main performance :
1. Steel-welded construction, vibration to eliminate stress with high strength and good rigidity
2. Adopted ATOS valves from Italy.

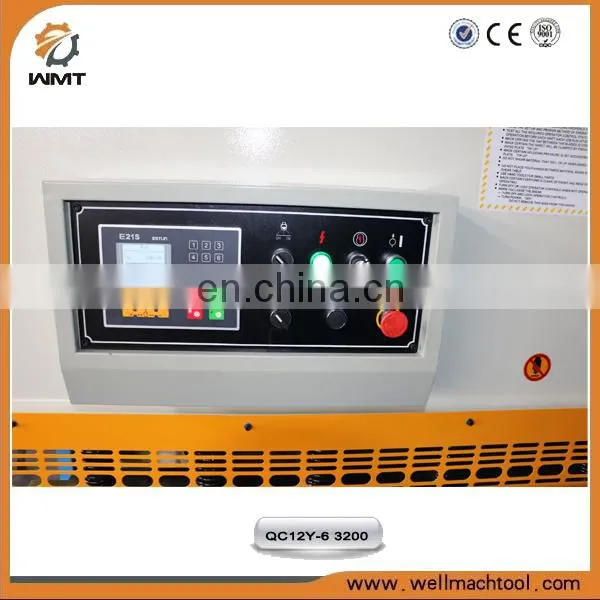

3. Fitted with manual operation ,semi-automatically operation , full-automatically operation three working mode.
4. Blade clearance adjusted by number marked plate ,quickly ,accurate ,convenient
5. The edge of upper knife carrier is forming into a curved surface to ensure the clearance identity between upper and lower blades during the shearing process.

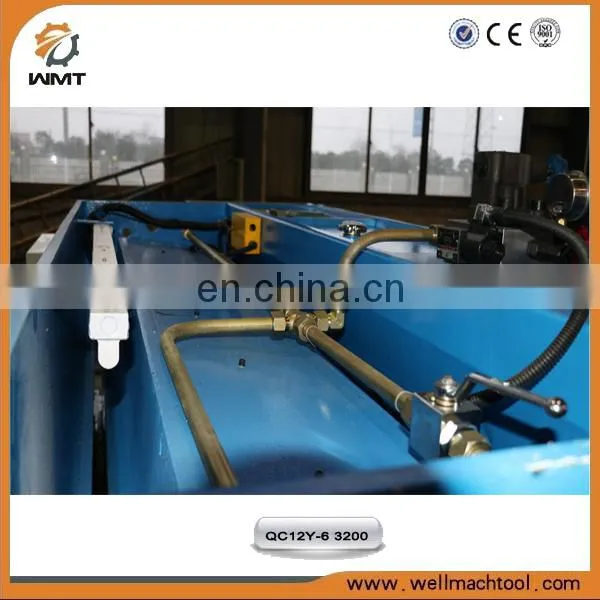

6. The upper carrier derived by right and left oil cylinders and with the support of fulcrum eccentric sleeve to fulfill shearing function.
7. It has also equipped with light to overlapping the draw line on the plate .
8. Main electrical parts adopted SCHNEIDER
Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
Sell Service:
1. The suppliers offer operation manual and quality certification
2. The suppliers offer one set of wear Annex and one set of installation and maintenance tools.
3. Guarantee :one year as from the date of installation and acceptance.
4. Payment :30%TT advance ,70% TT before delivery.
5. Delivery time 30 days.
Located in Anhui Chizhou High-tech Development Zone, Chizhou WMT Group operates two companies. One is Chizhou WMT CNC Machinery Co. Ltd and the other is Chizhou WMT CNC Industrial Co., Ltd. The group deals in CNC machine, milling and drilling machine, drilling machine, lathe machine and all kinds of multi purpose machines.
