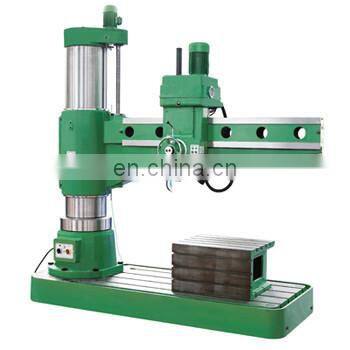

Top sale Z3080/25 heavy drill machinery cheap radial drilling machine
- 30 Set / Sets per Month
- Shanghai Port
- T/T Credit Card
You May Like
-
ZAY7045M bench milling and drilling machine with swivel table
-
ZAY7032FG 32mm gear-head cheap bench type drilling and milling machine with CE for sale
-
high speed mill machinery ZX50F milling and drilling machine with swivel table
-
ZX50CF Drilling and Milling Machine with Universal Dividing Head
-
ZAY7020 mini drilling and milling machine with certificate
-
X6328 milling machine with CE
Product Details
| Brand Name | WMT | Place of Origin | Anhui, China | |
| Model Number | Z3080/25 | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas | Weight | 10450 | |
| Dimension(L*W*H) | 3870X1620X2230 | Voltage | customer appoint | |
| Condition | New | Power(W) | 1.5kw | |
| CNC or Not | Normal | Drilling Speed | 1600rpm |
Product Description
Features:
Radial drilling machine is provided with hydraulic presetting speed shift mechanism to save auxiliary time.
It only needs one handle to operate clockwise rotation, stop (brake), variable speed and neutral gear conveniently.
Spindle box, rocker arm, inner and outer posts are reliably clamped by hydraulic diamond clamping mechanism.
Perfect safety protector and outer post protection are available.
In design and production of structure, it further adopts a series of effective measures to prolong precision durability and lifespan of whole machine.
Its electrical equipment completely contributes to personal safety, reliability, long service life and convenient maintenance.
| Specification | Z3080X 25 |
| Max drilling capacity | 80mm |
| Spindle travel | 450mm |
| Distance from spindle nose to column | 500~2500mm |
| Distance from spindle nose to base | 2000mm |
| Spindle taper | MT6 |
| Range of spindle speed | 16-1250rpm |
| Step of spindle speed | 16 steps |
| Dimension of worktable | 800x1000x560mm |
| Dimension of base | 3530X1400mm |
| Motor | 7.5kw |
| GW/NW | 10450/10000kgs |
