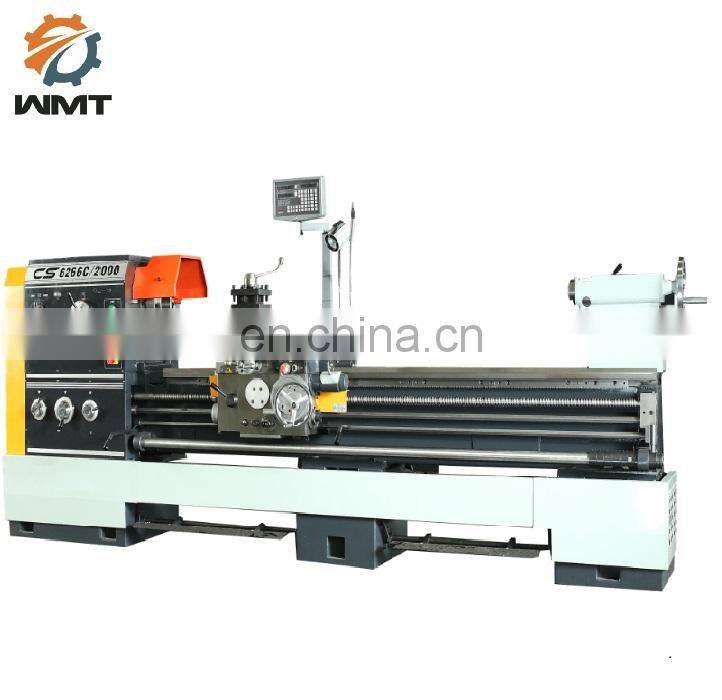

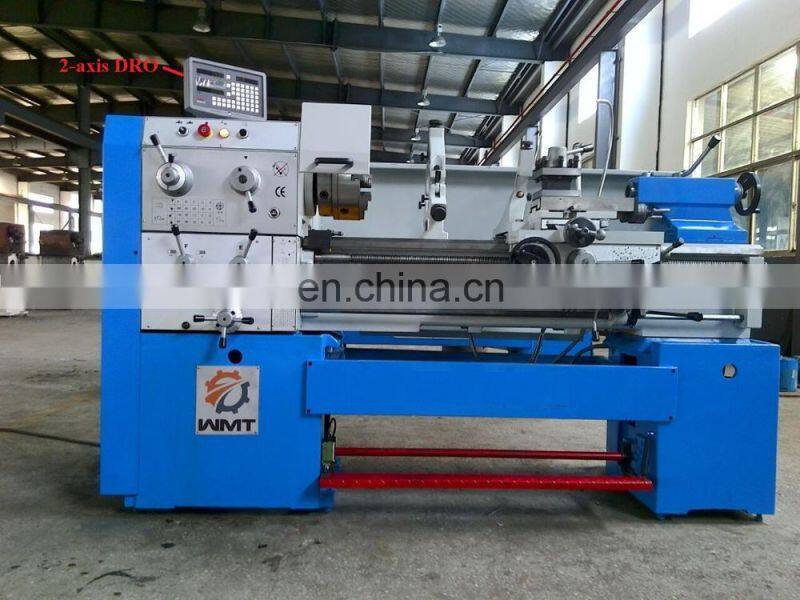

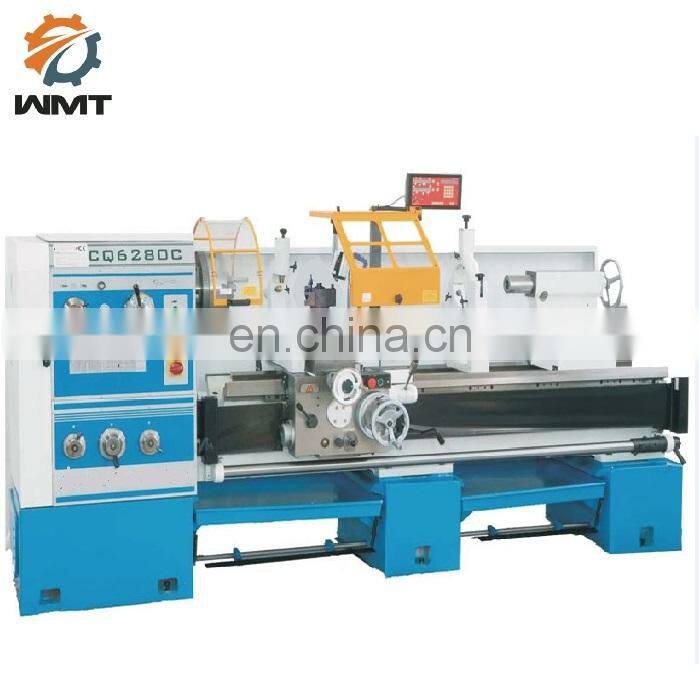

CD6250C Lathe Machine With 80mm Spindle Bore.
US$ 5,350 - 7,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
WMT
Place of Origin:
Anhui, China
Model Number:
CD6250C
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3 in 1 Lathe Mill Drill Combo BV25-3 Mini Multi Purpose Lathe Machine With Certificate ApprovedUS$ 1,300 - 1,500MOQ: 1 Set -
Good Quality 38mm Turning Machine CQ6232 Factory Promotion Sale Cheap Bench Lathe Machine With CEUS$ 1,750 - 2,000MOQ: 1 Set
-
CW62100 Heavy Chinese Gap Lathe Machine Price With Lathe ChuckUS$ 14,500 - 21,000MOQ: 1 Set
-
MPV250 10" x 30" High Precision Variable Speed Combo LatheUS$ 1,150 - 1,800MOQ: 1 Set
-
D180 7" x 12" Gear-Head Metal LatheUS$ 650 - 1,200MOQ: 1 Set
Brand Name
WMT
Place of Origin
Anhui, China
Model Number
CD6250C
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
CD6250C Lathe machine Features:
Super voice frequency heated bedways
Hardened and grounded gears in the headstock
With 2 precision D degree taper roller bearings on the spindle
Integrated deluxe cast iron floor stand
Tolerance test certificate, test flow chart included
Main Specification
| MODEL | CD6236C | CD6240C | CD6250C | CD6260C | |
| CAPACITY | Max.swing over bed | Φ360mm(14") | Φ400mm(16") | Φ500mm(19-3/5") | Φ600mm(23-3/5") |
| Max.swing over cross slide | Φ185mm(7-1/4") | Φ225mm(9") | Φ325mm(13") | Φ360mm(14") | |
| Max.swing over gap | Φ490mm(20") | Φ550mm(21-1/2") | Φ630mm(25") | Φ730mm(29") | |
| Effective length of gap | 260mm(10-1/4") | ||||
| Center Distance | 1000mm/1500mm/2000mm/3000mm(40"/60"/80"/120") | ||||
| Bed Width | 330mm(13") | ||||
| HEADSTOCK | Spindle hole | Φ80mm(3-3/5") | |||
| Spindle nose | ISO-D8 | ||||
| Spindle taper | 70mm(2-3/4") 85mm(3-1/4") | ||||
| Spindle speed(Number) | (15steps)24-1600/24-1600rpm(15steps) | ||||
| FEEDS | Longitudinal feeds range | 66kinds 0.072-4.038mm/rev | |||
| Cross feeds range | 66kinds 0.036-2.019mm/rev | ||||
| Metric threads range | 66kinds 0.5-28 | ||||
| Inch threads range | 66kinds 1-56inch | ||||
| Moudle threads range | 33kinds 0.5-3.5mπ | ||||
| Diametral threads range | 33kinds 8-56DP | ||||
| CARRIAGE | Max.travel of top slide | 130mm(5") | |||
| Max.travel of cross slide | 300mm(12") | ||||
| Max.size of toolshank | 20mm×20mm/25×25mm | ||||
| TAILSTOCK | Dia.of tailstock sleeve | Φ65mm(2-1/2") | |||
| Taper of tailstock sleeve | MT5 | ||||
| Max.travel of tailstock | 120mm(4-3/4") | ||||
| MOTOR | Main drive motor | 5.5kw | 7.5kw | ||
| Rapid traverse motor | 250w | ||||
| Coolant pump motor | 125w | ||||
|
PACKING LxWxH |
Center Distance(1000mm) | 2450mm×1150mm×17500mm(96"×46"×71") | |||
| Center Distance(1500mm) | 2950mm×1150mm×17500mm(115"×46"×71") | ||||
| Center Distance(2000mm) | 3450mm×1150mm×17500mm(137"×46"×71") | ||||
| N.W/G.W | Center Distance(1000mm) |
1520/2170kg 1350/2000kg |
1560/2210kg 1640/2290kg |
1600/2250kg 1700/2350kg |
1640/2290kg 1800/2500kg |
| Center Distance(1500mm) |
1750/2390kg 1850/2550kg |
1770/2410kg 1890/2590kg |
1830/2470kg 1910/2610kg |
1870/2530kg 2010/2760kg |
|
| Center Distance(2000mm) |
/ 2090/2860kg |
2010/2780kg 2090/2860kg |
2070/2820kg 2150/2920kg |
2130/2860kg 2250/3070kg |
|
You may find the accessories as you like:

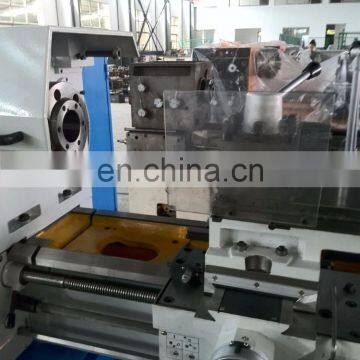

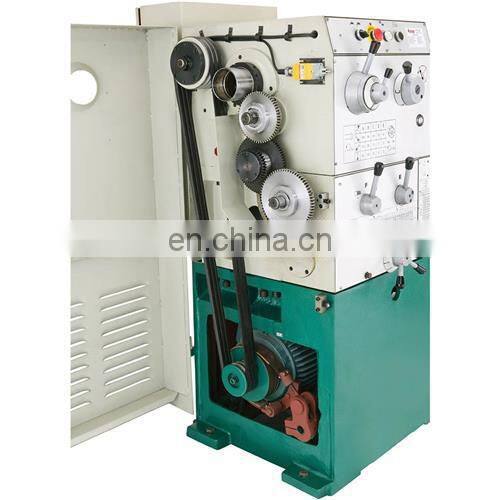

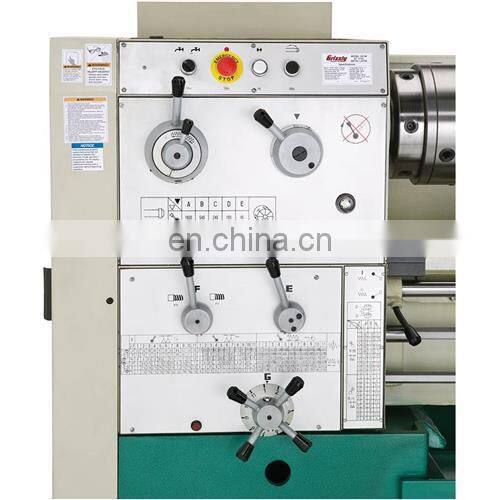

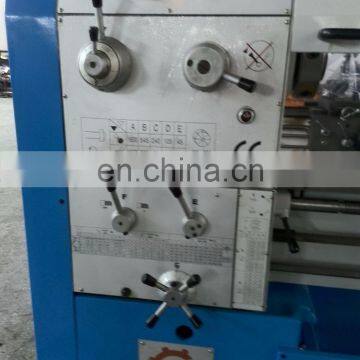

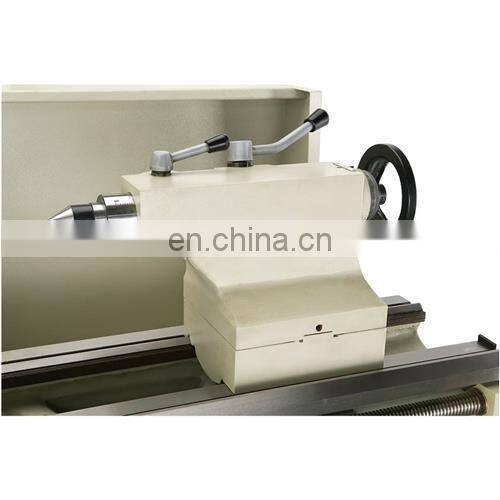

Details about the machine:
