C0636A factory sale price cheap machine tool precision metal lathe machine

FOB Price

USD $2,260 - $2,350 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Shanghai Qingdao Tianjing port
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	WMT	Place of Origin:	Anhui, China	Model Number:	C0636A
After-sales Service Provided:	Engineers available to service machinery overseas	Condition:	New

Product Description

Features:

Precision ground and hardened bed ways.

The spindle is supported with precision roller bearings.

Headstock gears are made of high quality steel ground and hardened.

Easy operating speed change levers.

Removable gap is provided for larger diameter work.

Easy operating gear box has various feeds and thread cutting function.

Specification:

Specifications	C0632A×750/1000mm	C0636A×750/1000mm
	C0632B×750/1000mm	C0636B×750/1000mm
Swing over bed	Φ330mm(13")	Φ360mm(14")
Swing over cross slide	Φ198mm(7-25/32")	Φ212mm(8-1/6")
Swing over gap	Φ476mm(18-3/4")	Φ491mm(9-1/3")
Distance between centers	750mm(30")/1000mm(40")
Bed width	187mm(7-3/8")
Spindle bore and nose	A: Φ38mm(1-1/2") / D1-4 camlock
	B: Φ52mm(2")/D1-5 camlock
Taper in nose	MT5
Speeds number	8 or 16(pole changeable motor:optional)
Speeds range	70-2000rpm or 35-2000 rpm(2 speed motor)
Leadscrew thread	8 TPI or 3mm pitch
Cutting tool max section	16×16mm(5/8"×5/8")
Threads imperial pitches	36 Nos. 8-112TPI or (34 Nos. 4-56TPI)
Thread metric pitches	28 Nos. 0.2-5mm pitch or (26 Nos. 0.4-7mm)
Longitudinal feeds imperial	36Nos. 0.0019-0.0273"/Rev or (32 Nos. 0.002-0.548"/Rev)
Longitudinal feeds metric	36Nos. 0.050-0.696"/Rev or (32 Nos. 0.052-0.392"/Rev)
Cross feeds imperial	36Nos.0.0006-0.0094"/Rev or (32 Nos. 0.007-0.0187"/Rev)
Cross feeds metric	36Nos. 0.013-0.188"/Rev or (32 Nos. 0.014-0.380"/Rev)
Tailstock barrel taper and travel	MT3 100mm (3-15/16")
Main motor	1.5KW/3 PH or 1 PH
Cross slide travel	160mm(6-5/16")	118mm(4-5/16")
Compoud rest travel	68mm(2-11/16")
Net /Gross weight	570/620kg 620/670kg	610/660kg 650/700kg
Packing size	1890/1940 X 750 X 1510mm

Machine details

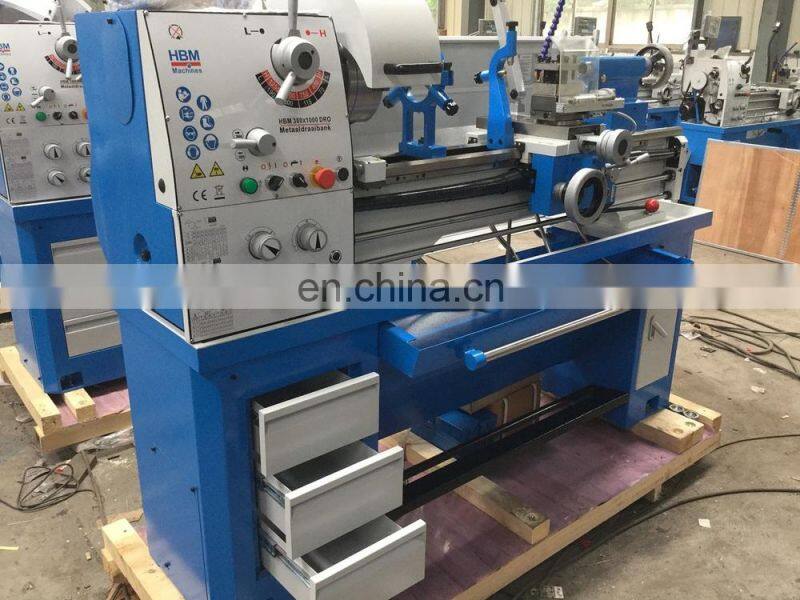

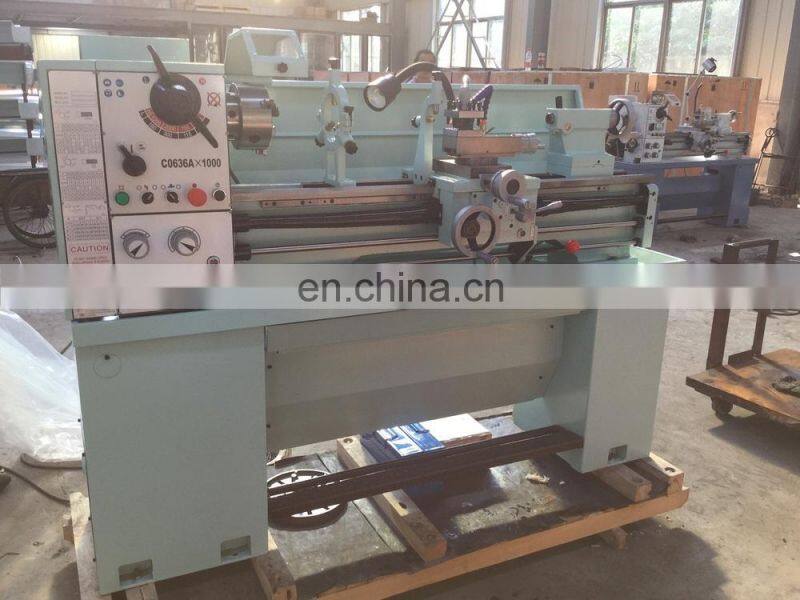

1) C0636A (spindle is 38mm) with old style machin stan

2) we also have new style machine stand and circle type headstock

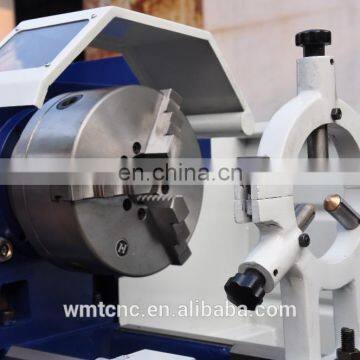

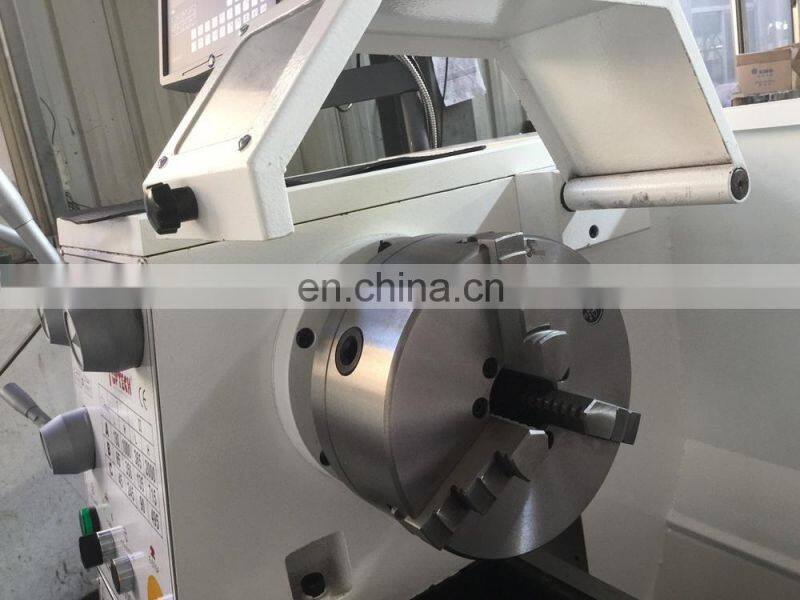

3) 3-jaw chuck clear pic.

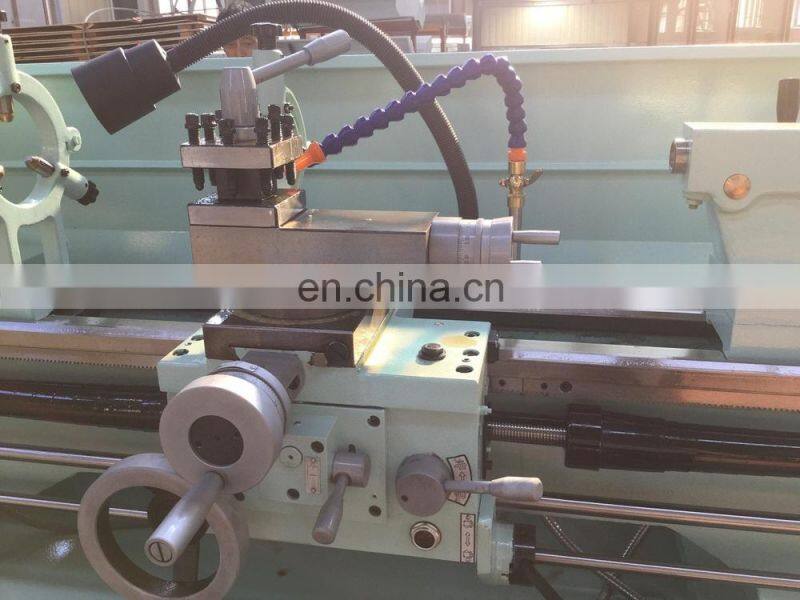

4) 4-Station toolpost

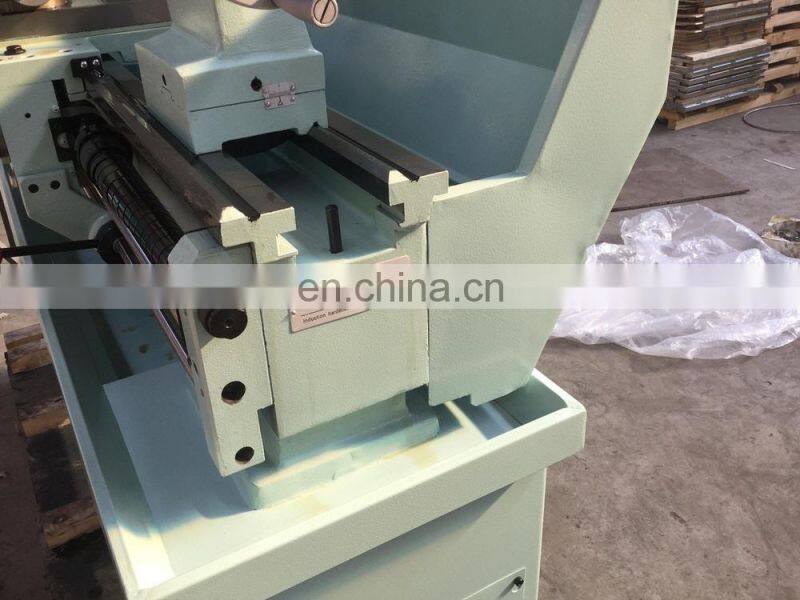

5) Hardened bed

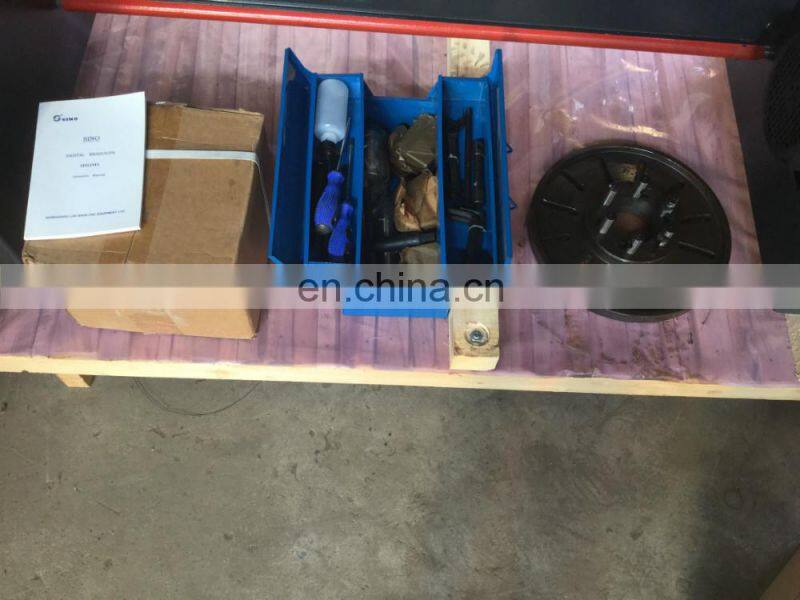

6) tool box with acessories

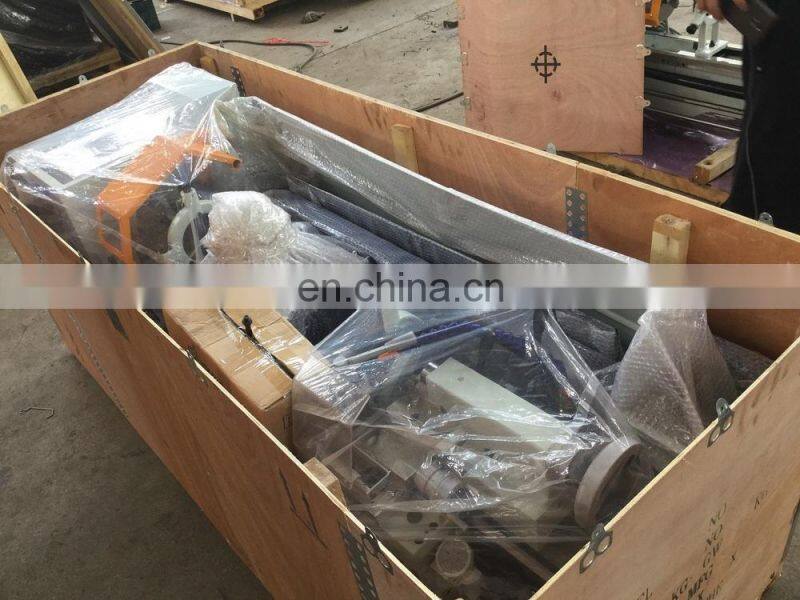

7) careful an safe package

Standard accessories

3-jaw chuck, 4-jaw chuck

coolant system, working light

foot brake, steady rest

follow rest, chasing dial indicator

change gears set, tool box and tool.

Located in Anhui Chizhou High-tech Development Zone, Chizhou WMT Group operates two companies. One is Chizhou WMT CNC Machinery Co. Ltd and the other is Chizhou WMT CNC Industrial Co., Ltd. The group deals in CNC machine, milling and drilling machine, drilling machine, lathe machine and all kinds of multi purpose machines.
