High quality portable hydraulic rebar bender machine for sale

High quality portable hydraulic rebar bender machine for sale

Product Description

1. ultra-high pressure electric oil pump

2. portable hydraulic rebar bending machine (straightener)

3. 2 pcs 5 meters long and 70 Mpa high pressure standard oil pipes.

    Bending angle: 90 ° (WU-32, bendable 180 °) bending can be stopped at any angle.

   Bending thrust: 10T-20T

   Electric oil pump power: 1.5 kW 0.75 KW

   Voltage: 380V (optional 220v)

   Work pressure: 63mpa

   Bending machine dead-weight: 12-14kg

Product details

Advantages:

1) The whole structure is simple, the operation is convenient, the stability is good, the reliability is high, the quality of rebar bending is guaranteed, and the working efficiency is improved;

2) Suitable for the site work such as the it is difficult for the common bending machine to reach after the steel bar is bound or the concrete is poured;

3) Use ultra-high pressure hydraulic system drive and the bending force is large. The maximum one is 40mm rebar;

4) The machine does not need to replace the working head, it can bend and straighten the rebar. The speed of bending and straightening is fast;

5) The machine is simple operation, labor saving and easy to move.

Application:

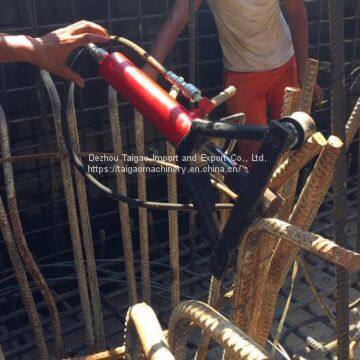

        Portable rebar bending machine is widely used in rebar bending of high-rise buildings, highways, railway foundation pile cage and various building skeletons. The portable hydraulic rebar bending machine is driven by hydraulic system. The portable bending machine is small in volume, light in weight and easy in operation. Two people can complete the bending and straightening operation of the rebar in the field, but the traditional bending method needs artificial bending and welding in advance. So it is more labor-saving, which not only ensures the precision, but also reduces the labor intensity. And the safety factor and working efficiency have been greatly improved.

Work efficiency:

 1000-2000 pcas can be bended in 18 hours of a day.And a rebar uses 5-10 seconds. Rebar straightening machine is a common project one in the construction process of bridge and housing construction field. Straightening rebars often can not meet the design requirements, the actual construction is contrary to the intent of the design drawings. In order to further optimize the solution to the difficult problems of field construction, our company designed this kind to improve work efficiency. The portable steel bar straightener, which reduces the barbarous construction and can complete the field construction with high quality fastly and effectively, makes the field construction no longer difficult.

product instructions:

1. Remove the package, check the machine appearance, if any query, please contact the service hotline with 24 hours service.

2. Add hydraulic oil into electric oil pump, 32 antiwear hydraulic oil in winter, 46 anti-wear hydraulic oil in other seasons. Add the oil to the middle upper position of liquid level meter on the side of the tank.( 0.75KW motor adds about 16 liters and 1.5 KW motor adds about 35 liters)

3. Please ask a professional electrician (Pls be sure to remember! ! ! Connect with power supply 380V or 220V, pay attention to the clockwise direction of motor running.)

4. connect high pressure tubing, bending machine 2 connectors, electric oil pump 2 connectors.

5. For manual reversing valves, the manual valve has three gears, namely (leftmost position-forward or backward) (middle position-stop (far right-forward or backward)). Please empty the operation after skilled operation to the site for use (Pls be sure to remember!!! ! ! Special remindation is that pulling the manual reversing valve to the center stop position before starting the motor.)

6. start the motor, pull the reversing valve right and left, so that the bending machine piston running idlinging back and forth for 3 times to emptying the air in the curved oil cylinder.

7. Before the operation of the bending machine, we must use the safety cover, if there is no cover please ignore, then can continue the operations.

8. During the operation of the machine, if there is any doubt, please call the service hotline wit 24 hours-service.

9. The warranty period of all factory products is one year if they are not artificially damaged.
