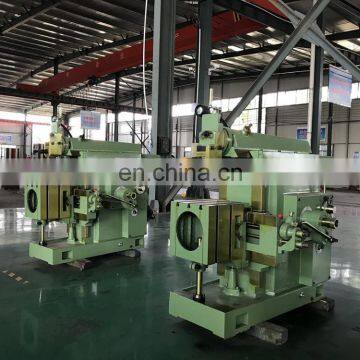

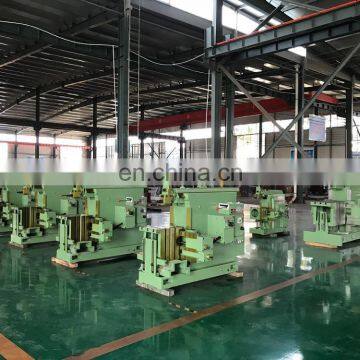

Help CenterAdvantages of Metal Planer Shaping Machine B635A
Related Products
-
Metal Advantages of Planer Shaping Machine BC6050US$ 7600.00 - 8000.00MOQ: 1 Unit -
BC6063 Advantages of Metal Planer Shaping MachineUS$ 7,500 - 8,000MOQ: 1 Unit
-
Hydraulic Metal Shaping Machine Tool for SaleUS$ 4,500 - 5,000MOQ: 1 Unit
-
Metal Shaping Machine Tool in Planer Slotting MachineUS$ 3,000 - 10,000MOQ: 1 Unit
-
B5020 5032 High Quality Vertical Slotting Machine for MetalUS$ 9,900 - 11,000MOQ: 1 Unit
Item |
Unit |
BL-B635A |
Max. planing length |
mm |
350 |
Cross travel of worktable |
mm |
400 |
Max. distance between ram bottom and worktable |
mm |
330 |
Worktable max. vertical moving distance |
mm |
270 |
Max. distance between machine and front guide face |
mm |
550 |
Max. travel of ram |
mm |
170 |
Table max. rotary angle(without vice) |
deg |
±90° |
Table max. rotary angle(with vice) |
deg |
±55° |
Working surface size of the worktable |
mm |
350×300 |
Travel of the tool post |
mm |
110 |
No. of ram strokes per minute |
times |
32,50,80,125 |
Table feeding when ram head move and return(Wheel rotate 1 gear-vertical) |
mm |
0.18 |
Table feeding when ram head move and return(Wheel rotate 1 gear-horizontal) |
mm |
0.21 |
Table feeding when ram head move and return(Wheel rotate 4 gears-vertical) |
mm |
0.73 |
Table feeding when ram head move and return(Wheel rotate 4 gears-horizontal) |
mm |
0.84 |
Max. size of planing tool shank(width*thick) |
mm |
20×30 |
Table's center T slot width |
mm |
14 |
Main motor |
kw |
1.5 |
Overall dimension(L×W×H) |
mm |
1530×930×1370 |
Weight |
kg |
1100 |
Send Inquiry to This Supplier
