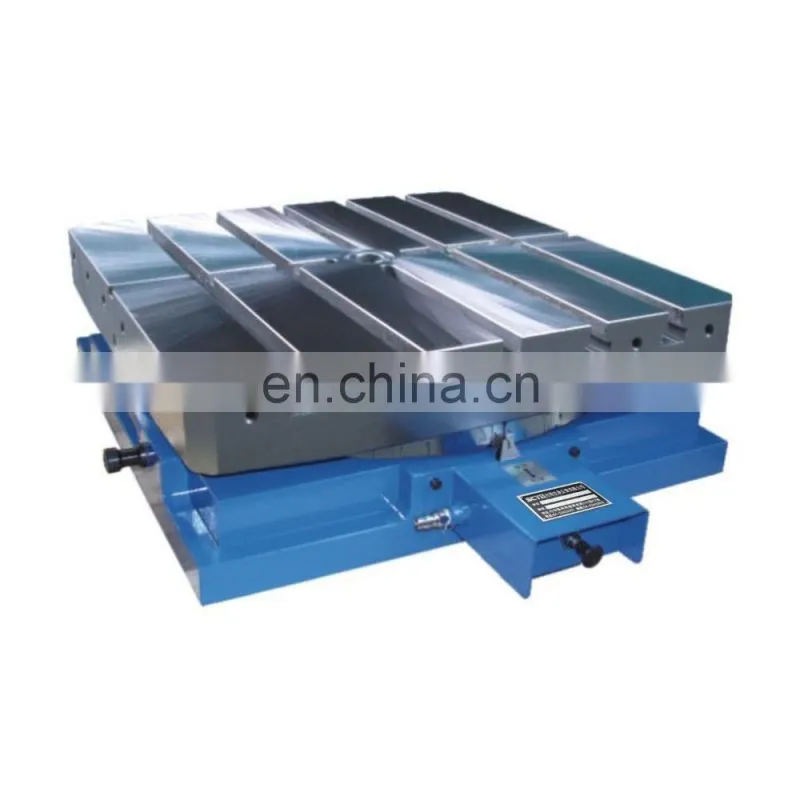

Precision 450*450 Milling and Boring Machine Cutting Table
Feature:
1.This type indexing table use 2 pieces clutch tooth position and locking device .
2.There are two types division:5 degree and 1 degree (72D or360D)
3.Manul type to release the back disc .
4. There is a bracket inside for support the rotate spindle steady.
5.Horizontal use .

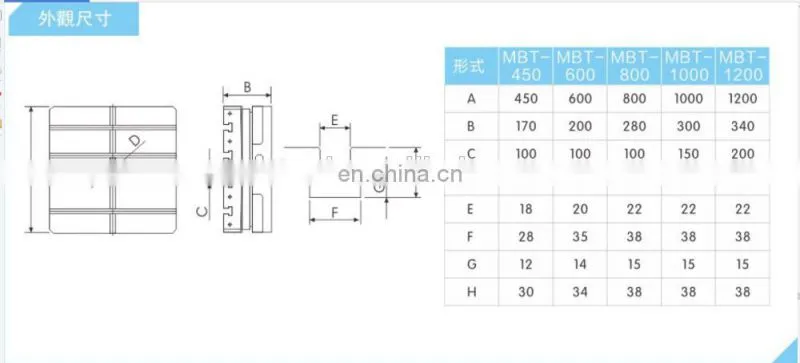

Specification:
MBT-450
Table size |
450*450 |
The disc spindle center hole |
30H7mm |
The table total weight |
170mm |
Disc T-slot width |
18 H7mm |
The rotate disc drive mode |
manual |
Working applicable environment temperature |
18~40 degree |
Equal division number |
72 360 |
Mini angle of equal division |
5 degree 1 degree |
Locking clamp capacity |
2200kgf-m 21560 N-m |
Total weight |
200 kg |
Division precision |
±2” |
Load weight |
1000kg |
