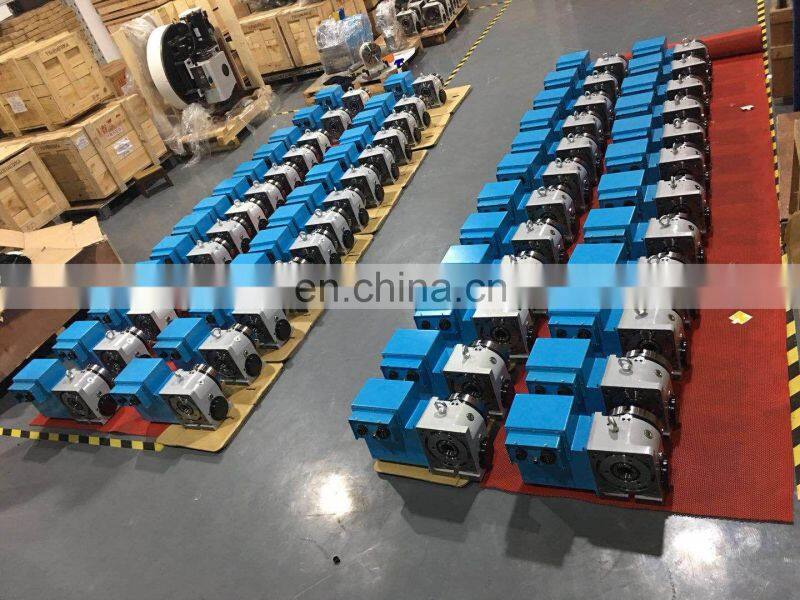

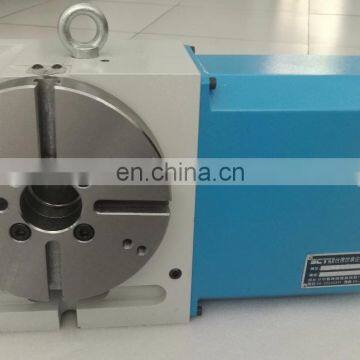

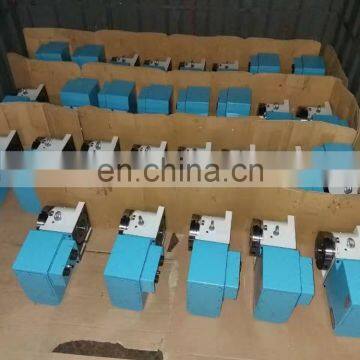

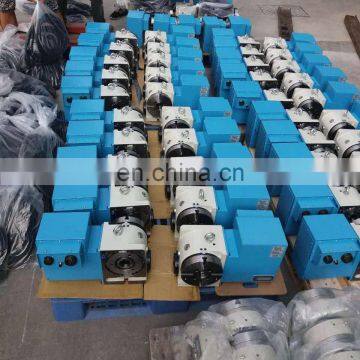

Precision automatic indexing rotary milling table 4 axis cnc tilt table dongguan mechanical hardware manufacturer
Feature:
1. This 4 Axis CNC rotary table use imported precision dual-lead worm, turbine, turbine with aluminum bronze alloy,ensure the transmission positioning in high precision accuracy.
2.The turbine size nearly the disc size and the steel rigidity is better 30%~50% than similar products.
3.The bearing used cross roller bearings,improved the the rotary table’s rotation accuracy and rigidity. It can be maintained long time processing and no need to worry make defective workpiece.
Specification:
MD-255HA
The Disc diameter | 255mm |
The disc spindle center hole | 50H7mm |
The disc spindle center through hole | 32mm |
Level placement height | 200mm |
Level placement center height | 170mm |
T-slot width of the rotary shaft disc | 12H7 |
Guide block width | 14H7 |
Working applicable environment temperature | 18~40 degree |
Pressure of the locking device | 5(pneumatic)35(hydraulic) kg/cm2 |
The mini angle of equal division | 0.001degree |
Total gears rate | 1/120 |
Max speed of the rotary disc | 3000 RPM X |
4000 rpm 44.4 | |
Division precision | 15” |
G.W weight | 90kg |
Q: Are You Trading Company Or Manufacturer ?
A: SHIN CHENG is a professional manufacturer,have more than 30 years experience in tool holder and NC rotary table.
Q: Is Free Shipping Possible?
A: We don't offer free shipping service,but we will give you some discount if you buy large quantity products.
And we have cooperation Express Companies,can offer you the best price of shipping cost.
Q: Can You Send Products To Our Forwarder In China?
A: Yes,if you have Forwarder in China,we will glad to send products to him/her.
Q: What's The Warranty Of The Goods?
A: All products from us wanrranty is 12 months .
Q: What's The System Of Your NC Rotary Table Use ?
A:Our NC rotary table support :FANUC , Mitsubishi,GSK etc.
