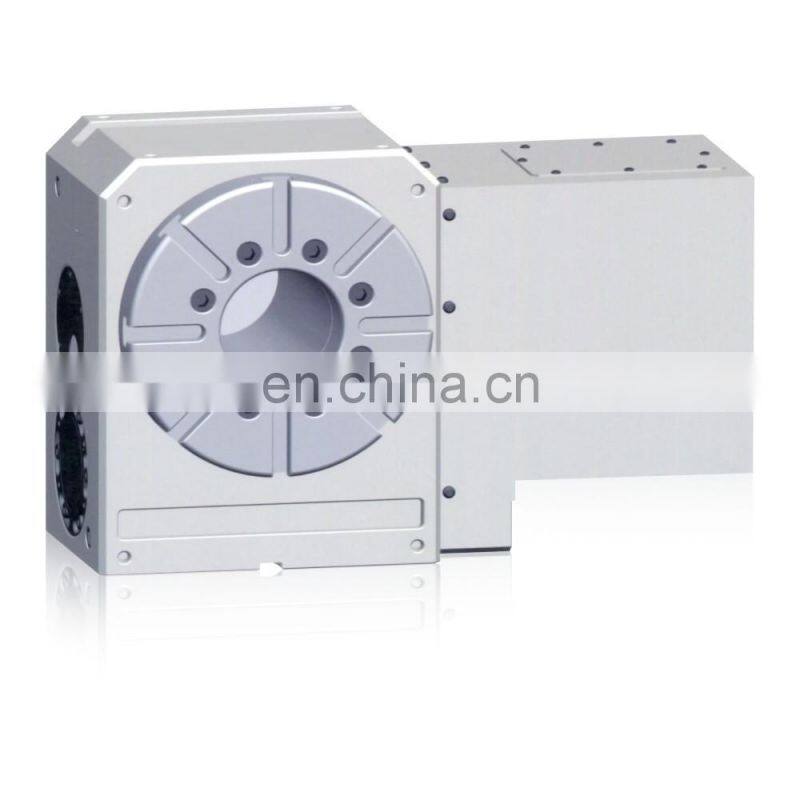

Best Selling Hydraulic Locking 4th axis cnc indexing rotary table from China
Feature:
1. 90 degree indexing time only need 0.3 seconds.
2.Material:cam used special alloy steel, after carburizing can be precision grind.
3.The needle bearing used bearing steel ,after carburizing can be precision grind.
4. The advantages of cam roller structure:
<1.>The Cam and the needle roller bearings preloaded without clearance rolling drive.
<2.> No sliding friction and wear, continue to maintain no clearance movement characteristics
<3.> The indexing disc uses the brake servo motor. When the workpiece is machined in the indexing machine, the brake servo motor auxiliary cam mechanism is braked to meet the torque requirements of the processing and also save time.
Specification:

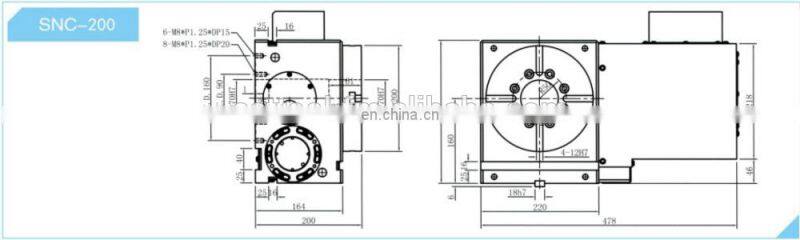

SNC-200
The Disc diameter | 200mm |
The disc spindle center hole | 70H7mm |
The disc spindle center through hole | 70mm |
Vertical placement center height | 135mm |
T-slot width of the rotary shaft disc | 12H7 |
Guide block width | 18H7 |
Working applicable environment temperature | 18~40 degree |
Pressure of the locking device | 5(pneumatic)35(hydraulic) kg/cm2 |
The mini angle of equal division | 0.001degree |
Total gears rate | 1/60 |
Max speed of the rotary disc | 3000 RPM X |
4000 rpm 66.6 | |
Division precision | 15” |
G.W weight | 90kg |
