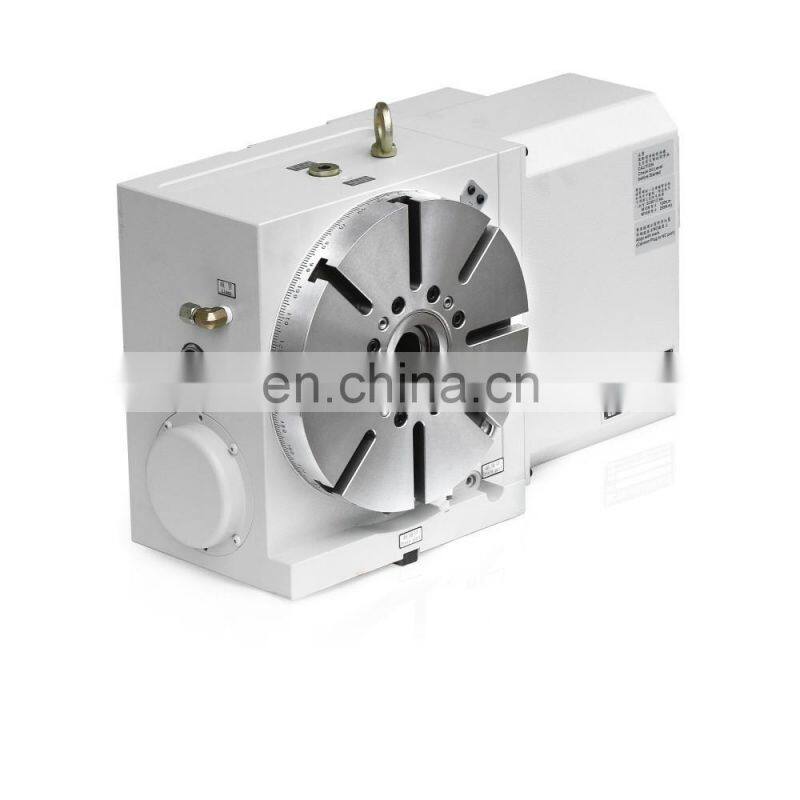

CNC milling machine index 6" rotary table
Feature:
1. This 4 Axis CNC rotary table use imported precision dual-lead worm, turbine, turbine with aluminum bronze alloy,ensure the transmission positioning in high precision accuracy.
2.The turbine size nearly the disc size and the steel rigidity is better 30%~50% than similar products.
3.The bearing used cross roller bearings,improved the the rotary table’s rotation accuracy and rigidity. It can be maintained long time processing and no need to worry make defective workpiece.
Specification:

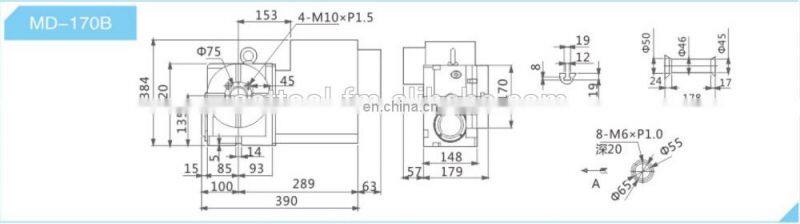

MD-170B
The Disc diameter | 170mm |
The disc spindle center hole | 50H7mm |
The disc spindle center through hole | 45mm |
Level placement height | 179mm |
Level placement center height | 135mm |
T-slot width of the rotary shaft disc | 12H7 |
Guide block width | 14H7 |
Working applicable environment temperature | 18~40 degree |
Pressure of the locking device | 5(pneumatic)35(hydraulic) kg/cm2 |
The mini angle of equal division | 0.001degree |
Total gears rate | 1/90 |
Max speed of the rotary disc | 3000 RPM X |
4000 rpm 44.4 | |
Division precision | 30” |
G.W weight | 40kg |
