Best quality cabinet type 20w 30w 50W fiber laser marking machine for metal

FOB Price

USD $6,500 - $7,000 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Sanwave	Place of Origin	Guangdong, China
Certification	CE	After-sales Service Provided	No overseas service provided
Condition	New	Graphic Format Supported	AI, PLT, DXF, BMP, DST, DWG, LAS, DXP
Control Software	Sanwave cad3.0	Cooling Mode	Air Cooling
CNC or Not	No

Best quality cabinet type 20w 30w 50W fiber laser marking machine for metal

Feature

1. This machine used fiber laser output.

2. High electro-optical conversion rate.

3. Small size,no need outside water cooling device.

4. Good quality beam.

Advantage

1. Fiber laser is the most advanced solid laser,it with high quality beam.

2. Used high speed scan head,easy mark.

3. Air cooling,no consumables,low cost and energy saving.

Processing object

1. Various metal raw materials ,such as :iron,copper,aluminum,steel and other hard metal.

2. Some non-metal,such as:PU,PV,PC and wood.

3. Surface coating product,such as:nickel plating,zincification,titanium plating and alumina.

Other filed:sanitary ware,medical instruments,glasses ,clock,car accessories,plastic,paper,electron and hardware etc.

Equipment composition

Part name	Model	Origin	Marks
Fiber laser	Solid laser QSFL series	Germany/China (optional)	IPG,SPI,JPT,MAX (Optional)
Laser vibrating lens	High speed analog digital scanning galvanometer	Germany/China	ScannerL lad/Galvo tech
Cabinet	Sanwave QXGW	China	With foot pads,4 pcs brake wheels
Operate computer	Industrial computer with windows system	China	Intel core 4^th Kingston hardware
field lens	75/110/150/200/250mm	Singapore	Sanwave cad3.0
Red light emitting pen	CA5V	China	Iaber
Beam mirror	2010B	China	Iaber
Laser power	220V-24V 50Hz	Taiwan -China	Mean well
Vibrating lens power	220V-24V 50Hz	Taiwan -China	Mean well
Control card power	220V-5V 50Hz	Taiwan -China	Mean well
Operate software	Sanwave CAD3.0	China	Sanwave

Machine configuration capability

Capability	20W	30W	50W
Output power	>20W	>30W	>50W
Wave length	0.5mm	0.5mm	0.5mm
Minimum character	Sanwave QXGW	China	With foot pads,4 pcs brake wheels
Minimum width	0.03mm	0.03mm	0.03mm
Beam quality(M2)	<1.1	<1.1	<1.1
Modulation frequency	0~80Hz	0~80Hz	0~80Hz
Pulse Width	100NS
Cooling	Air cooling	Air cooling	Air cooling
Votage	220V 50Hz	220V 50Hz	220V 50Hz
Power	<200W	<250W	<450W
Cabinet size	0.8x0.6x1.4m	0.8x0.6x1.4m	0.8x0.6x1.4m
Marking speed	≤500 character/s	≤500 character/s	≤500 character/s
repeatability accuracy	±0.003mm	±0.003mm	±0.003mm
Engraving depth	≤0.2	≤0.3	≤0.5

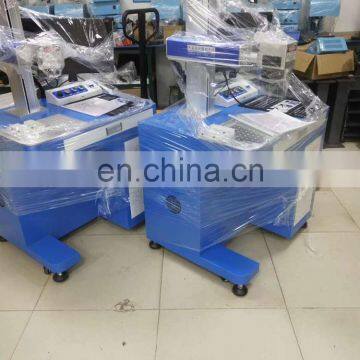

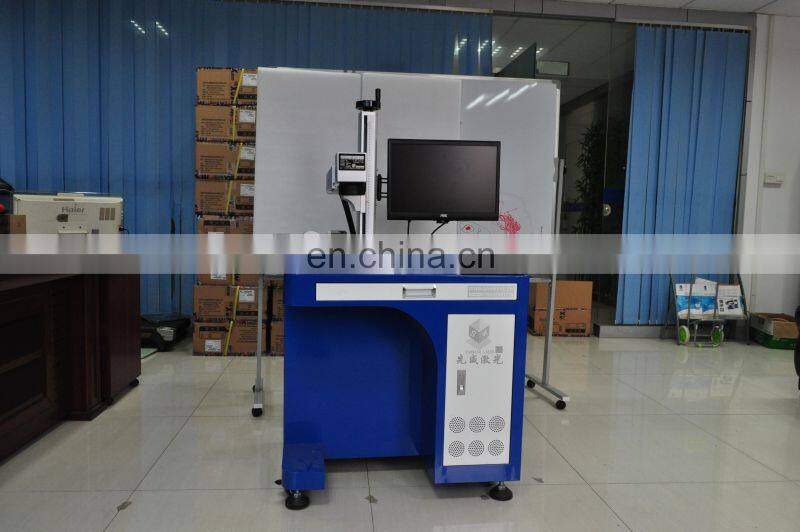

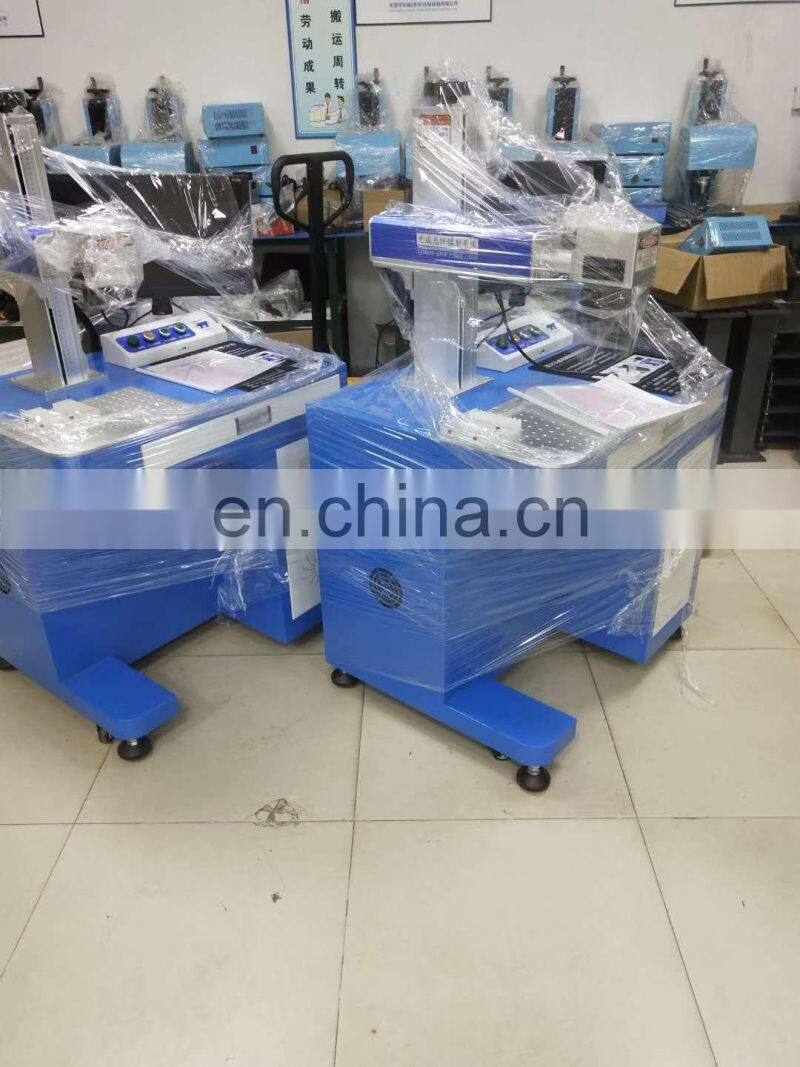

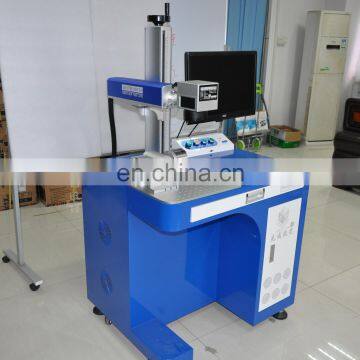

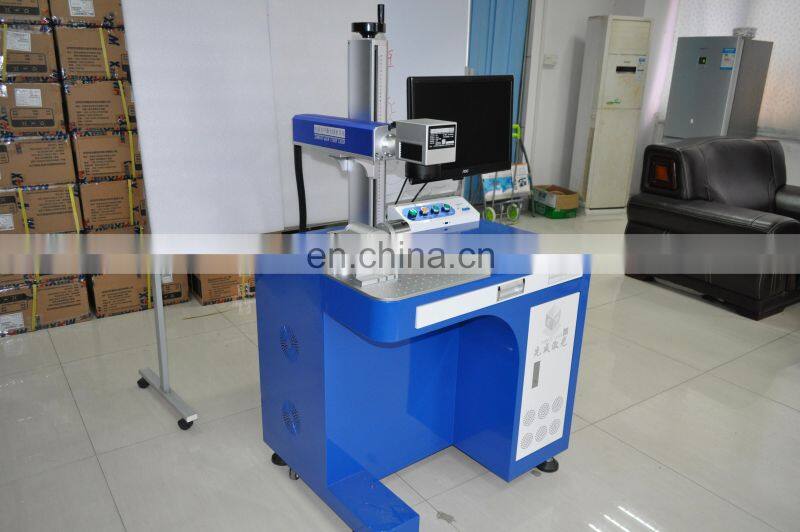

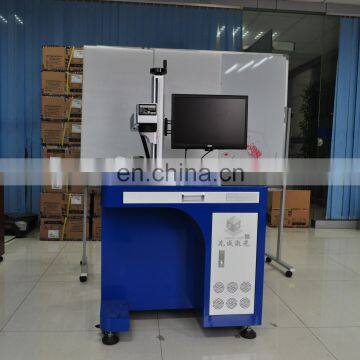

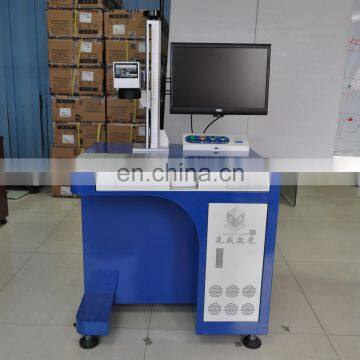

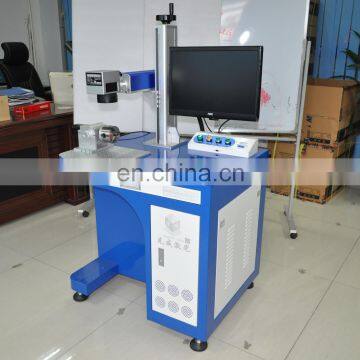

Products view
