Product Details
Brand Name: | SCT | Place of Origin: | Guangdong, China | Model Number: | SCT-25Y3 |
Condition: | New |
Product Description

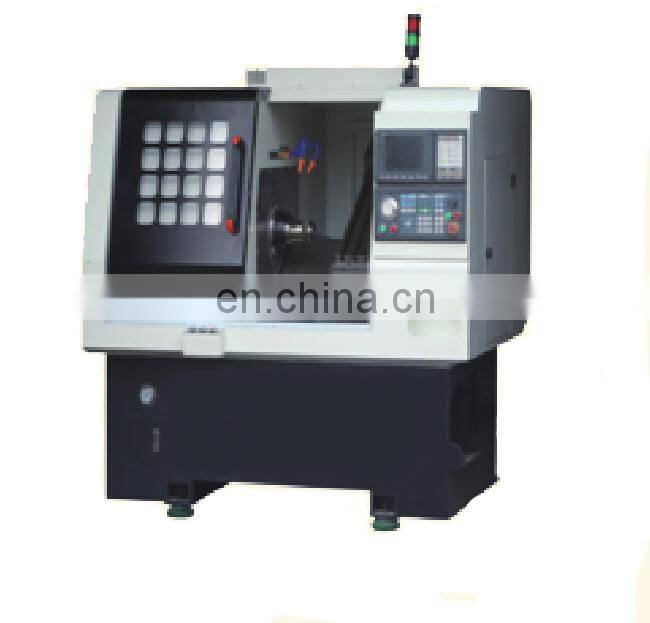

Best selling slant bed cnc lathe machine tools and accessory for metal lathe
Feature :
1. These type CNC Lathe can be used for both face ,side milling & drilling .
2.Side milling : 25mm diameter workpiece use 25Y3.
3.Side milling :25mm~100mm diameter workpiece use 46Y3 .
SCT-25Y3 slant cnc lathe specification :
Model | SCT-25Y3 | SCT-46Y3 | SCT-45Y6P | |
Main specification | Max swing over bed | 280mm | 330mm | 330mm |
Bed tilting angle | 30° | 30° | 60° | |
Spindle
| Spindle type | A2-4 | A2-5 | A2-5 |
Spindle bore | 25mm | 45mm | 45mm | |
Spindle speed | 6000 r/mini | 4500 r/min | 4500r/min | |
Feed | X axis travel(Radius) | 620mm | 860mm | 1180mm |
Z axis travel | 130mm | 300mm | 305mm | |
Milling Head | 3 side milling ER16 | 3 side milling ER20 | 3+3 side milling ER20 | |
Other | Motor | 3.7KW | 5.5KW | 5.5KW |
| Collet | Collet 36 type | Collet 46 type | Collet 46 type |
| Motor torque | 5/5/6NM | 6/5/7.7NM | 7.7/6/7.7NM |
1. Our company is a manufacture of NC rotary table ,tool holder ,cnc machines ,we can
supply technical support for these products without charge .
All tool holder and nc rotary precesion parts were made in taiwan factory,no need to
worry about the quality.
2. About the nc rotary table :
<1>. Before place an order of the nc rotary table ,please let us know your machine
center work table size,brand,system,wire case position,so we can supply the right
cnc rotary table with serve motor ,drive and cable etc .
<2>. About the tool holder ,we can supply tool holder specification before customers place order .
Q: Are You Trading Company Or Manufacturer ?
A: SHIN CHENG is a professional manufacturer,have more than 30 years experience in tool
holder and NC rotary table.
Q: Is Free Shipping Possible?
A: We don't offer free shipping service,but we will give you some discount if you buy large quantity
products.And we have cooperation Express Companies,can offer you the best price of shipping
cost.
Q: Can You Send Products To Our Forwarder In China?
A: Yes,if you have Forwarder in China,we will glad to send products to him/her.
Q: What's The Warranty Of The Goods?
A: All products from us wanrranty is 12 months .
Q: What's The System Of Your NC Rotary Table Use ?
A:Our NC rotary table support :FANUC , Mitsubishi,GSK etc.
