Help CenterSUNRISE Automatic TPL108 Multi-stations CNC Punching Machine For Plates Of Automobile Steel Structure Industry
Related Products
-
TPP103 China Equipment Jinan Clamp Production Line Machines Flange Steel Structure CNC Hole Punching Machinery Drilling MachineUS$ 43,000 - 47,000MOQ: 1 Set -
High Speed CNC Punching Marking Machines For Bridge Parking Garage Flanges Plate SheetsUS$ 43,000 - 47,000MOQ: 1 Set
-
CNC Hydraulic Plates Punching Marking MachineUS$ 46,000 - 48,500MOQ: 1 Set
-
CNC Punching Machine for PlatesUS$ 39,000 - 43,000MOQ: 1 Set
-
China CNC Hydraulic Punching Machine For PlatesUS$ 105,000 - 150,000MOQ: 1 Unit
Main Features
1. The machine equipped with independent hydraulic power system and electrical control system, adopt centralized control.
2. The machine-frame is made by C-type plate welding, with good rigidity and big handling space. The machine sets eight die-stations, automatic switching die-stations. Clamping system can adapt to different work piece, with zero baffles as datum mark, and work piece supported by rolling-ball working table. Axis X & Y action should be controlled by servo motor and ball-screw driving, and double-axis CNC system controls the position of punching, so as to make the whole machining process automatically; operator may input the sizes of work piece to computer for repeated calling program in the future.
3. Adopt CNC technology, servo motor in feeding, with high efficiency, stable work piece precision.
4. The hydraulic system mainly used ATOS solenoid directional valve, supplemented by small plug-in component parts system, the structure is simple, easy to operate and maintenance.
5. The host of machine equipped with Mitsubishi two-axis CNC system, the work piece can be precisely positioned anywhere on the work area to complete the punching function. The clams have the function of Home position. Ensure the accuracy of single work piece and interchangeability of the same work piece.

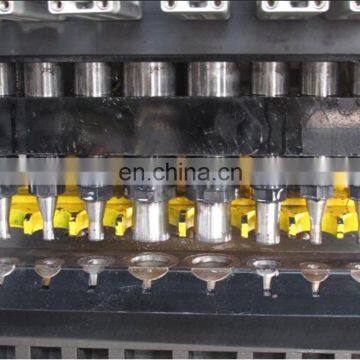

6. The machine have eight die-stations , there are three kinds of molds - big , middle, small, achieved multi-species, multi-aperture processing. Easy assembly and dis-assembly of molds, accurate positioning, greatly shorten the pause time and adjustment time of molds, improve work efficiency, and expand the scope of application of the machine.

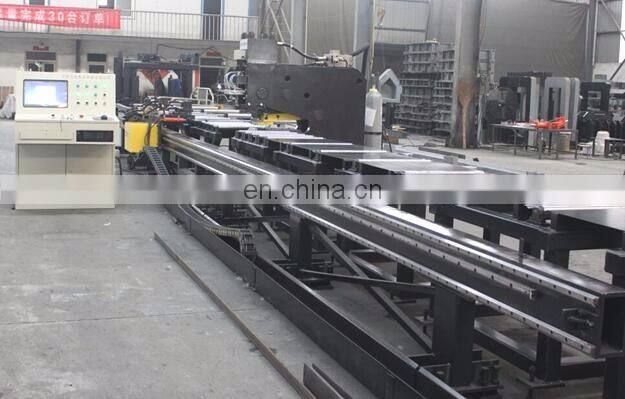

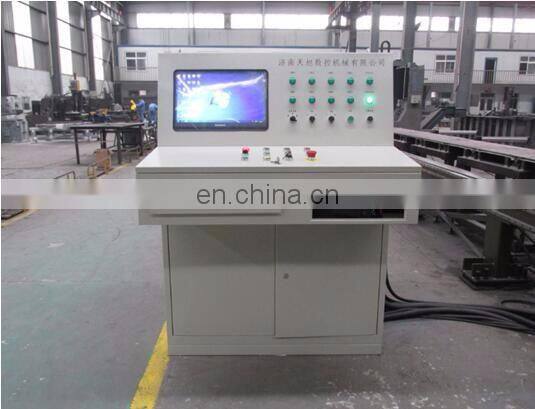

Electric Cabinet

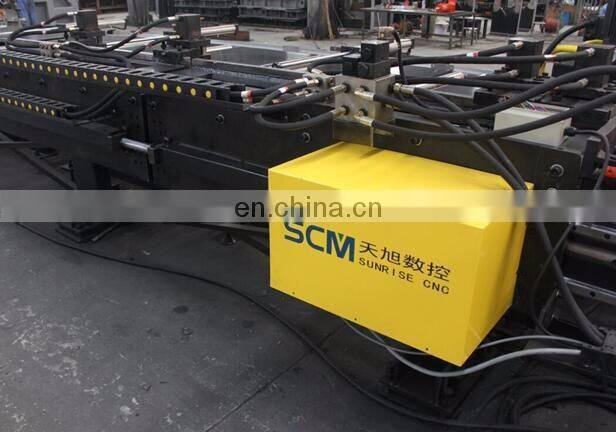

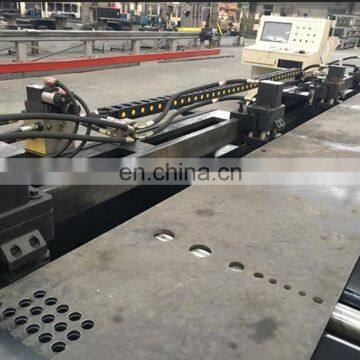

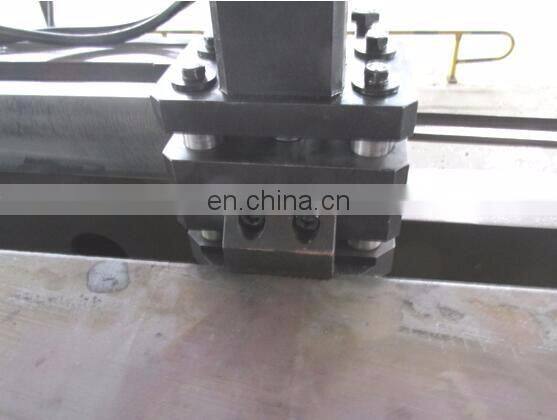

Hydraulic Clamps

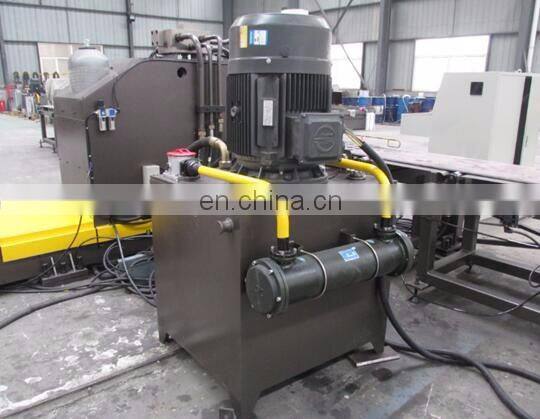

Independent Hydraulic Station

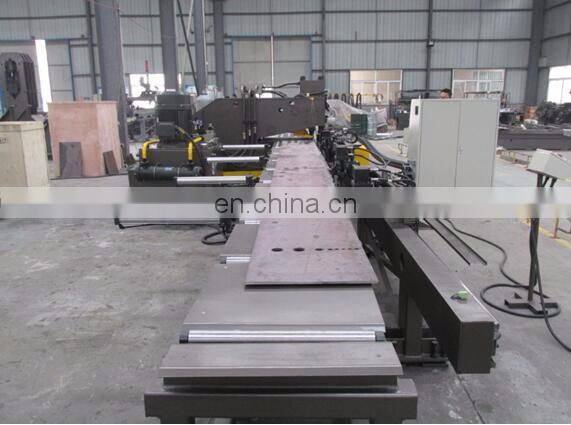

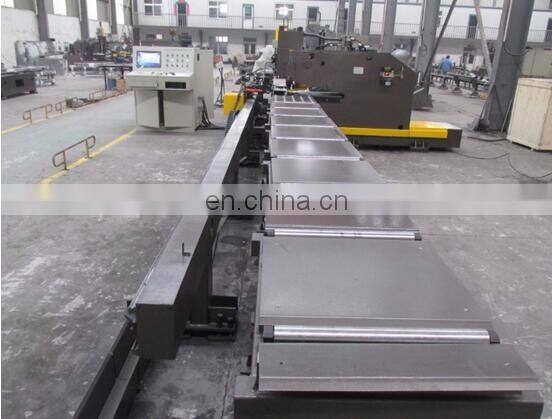

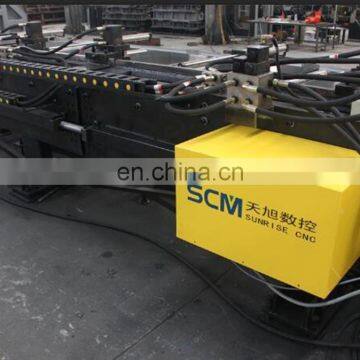

NC Feeding Carriage
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
