TPPD103 Jinan Clamp Production Line Machines Parts Steel Structure CNC Punching Machinery Drilling Machine

Product Application

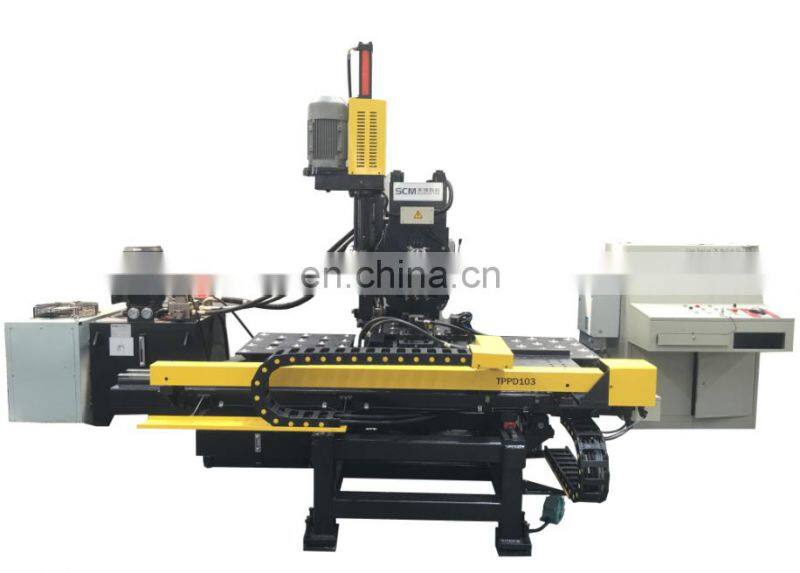

TPPD103/TPPRD103 (Enhanced model) CNC Punching, Drilling & Marking Machine For Plates

Main Features

1. The machine-frame is made by C-type plate welding, with good rigidity and big handling space.

2. Adopt CNC technology, servo motor infeeding, with high efficiency, stable work-piece precision.

3. Important functional components adopt modular assembly, easy to repair it.

4. Carry out punching, marking and drilling on the one plate.

5. Drilling unit has the functions including rapid falling, slow work-feeding and quick feeding back to improve working efficiency.

6. Easy programming, may input the diameter and position of holes to computer, and also may use the program generated by lofting software, or adopt direct conversion CAD/CAM.

7. The hydraulic station adopts double pump, single motor, water cooling system, sleeve type coupling for all pipelines. The glue of hose and coupling are exported.

8. The X & Y axis are driven by servo motor, ball screw and linear guide, which ensure the high precision.

9. With self-diagnosis failures function.

10. Lighten the working strength of workers

Machine Parts

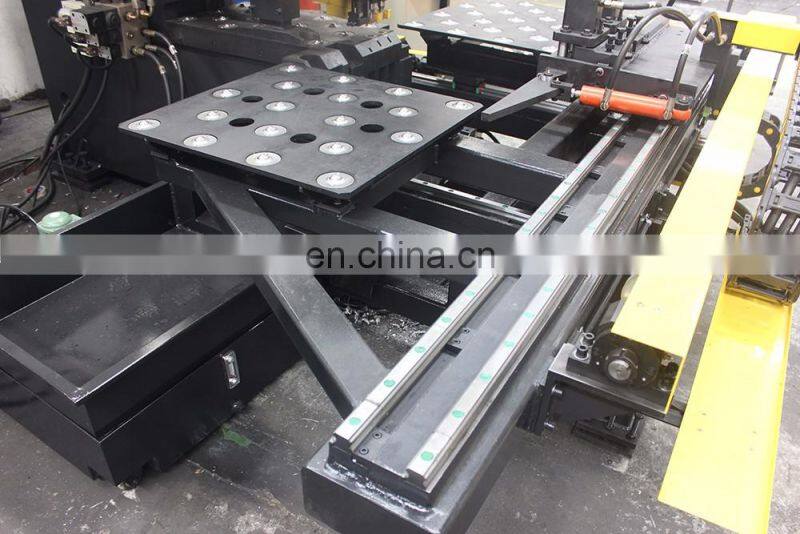

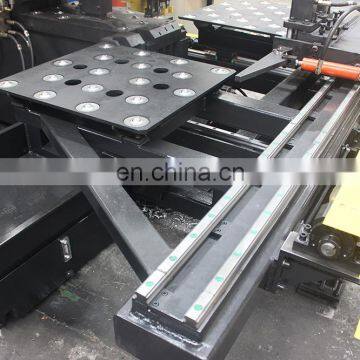

Name: clamps

Brand: Made by ourself

Original: China

Reinforce the metal plates, high precision

Machine Parts

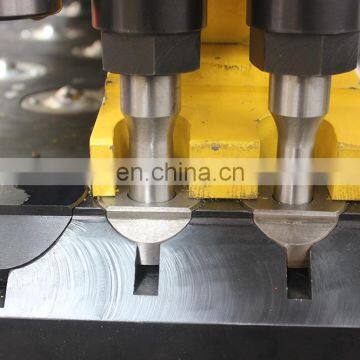

Name: Marking unit
Brand: Made by ourself
Original: China
Character size: 14*10*19mm

Qty. of character: 12/16

Machine Parts

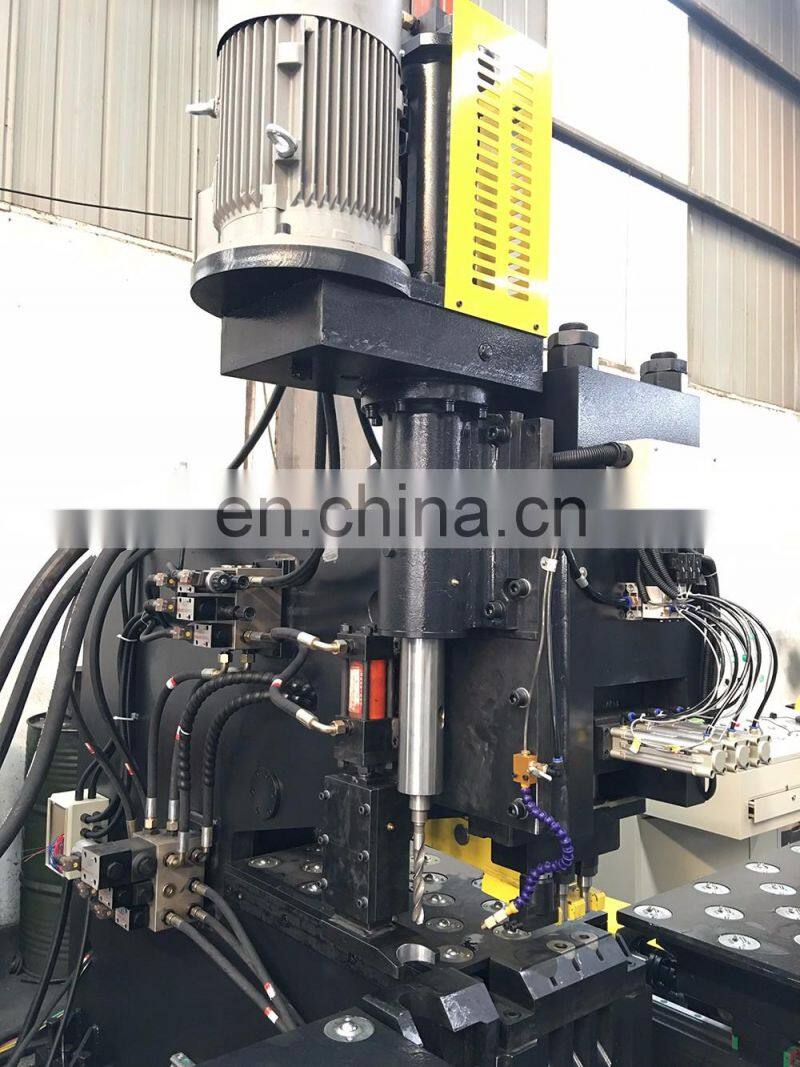

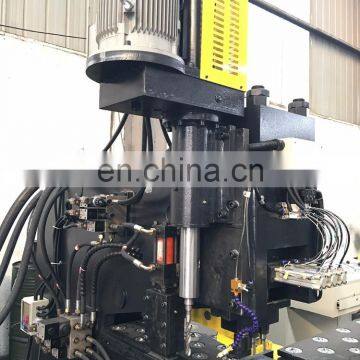

Name: Drilling Unit
Brand: Made by ourself
Original: China
Max.drilling diameter(mm): 50

Max.drilling thickness(mm): 40
