CNC Tube Sheet Drilling Machine

Name: CNC Tube Sheet Drilling Machine
Brand: Sunrise
Availability: InStock

FOB Price

USD $160,000 - $170,000 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Sunrise	Place of Origin	Shandong, China
Model Number	TPM2020	Certification	ISO9001:2008
After-sales Service Provided	Engineers available to service machinery overseas	Weight	28t
Dimension(LWH)	5800X5800X3600mm	Voltage	380V
Condition	New	Power(W)	48kw
CNC or Not	CNC

Product Description

CNC Tube Sheet Drilling Machine

1, About Our Company- We always do the best !

JINAN SUNRISE CNC MACHINE CO., LTD. is a specialist company dedicated to developing, studying, designing, manufacturing, and selling CNC machines, for example, drilling machine, punching machine,

band sawing machine, shearing machine, bending, beveling, chamfering, milling, welding machines and

other optical-electro-mechanical integration equipments, which mainly used for processing angle steel,

metal plate, H-beam, channel steel, box steel, round steel, flange plate and etc in power tower, transmission tower, telecom tower, steel structure, central air-conditioner, automobile, household appliance, petrochemical, construction industries.

2,Why Choose Our Company.

(1) We are a team of experienced and dynamic

professionals .

We are a team of experienced and dynamic professionals who are experts in handling precision work through scientific processes. The professional excellent talents unite a powerful and creative team of design, research and development, which build our solid technical strength and competitiveness.

(2) Certification of quality.

We have been awarded by Ministry of Construction with title of “Recommended Product”, “Chinese Top Brand” and “AAA Enterprise”, “High-tech enterprises” in terms of quality, service and credit. Also we have applied for many patens in this field. The company has already passed International Quality Management System ISO9001:2008 certification for many years and never stop controlling and improving quality and service with this scientific management system.

Quality make brand, honesty win market, harmony converge talents, and innovation promote development. Our ability to consistently provide innovative, high quality products that outlast and outperform the competition, is why we are the one of the most successful companies offering the most advanced and productive solutions in the CNC machine industry.

3, Details of products:

Specifications:

Parameter Name	Item	Specifications
Max. size	L X W	2000X2000mm
Max thickness		250mm
Work table	Width of T slot	28/500mm
Vertical slide type drill head	Quantity	1
	Main spindle taper hole	BT50
	Max drill diameter(common carbon steel)	φ40mm(carbide drill)
	Max drill diameter(common carbon steel)	φ50mm(HSS twist drill)
	Main spindle speed	30—2800r/min
	Motor power of spindle	22/33kW
	Distance between spindle tip to work table	300-800mm
(X axis) Gantry longitudinal move	Max. stroke	2000mm
	Moving speed of X axis	0-8m/min
	Servo motor power of X axis/torque	2X3kW/28.4Nm
(Y axis) Power head transversal move	Max stroke	2000mm
	Moving speed of Y axis	0-8m/min
	Servo motor power of Y axis/torque	2x3kW/28.4Nm
(Z axis) Vertical slider feeding	Stroke of Z axis	500mm
	Feeding speed of Z axis	0-5m/min
	Servo motor power of Z axis/torque	3kW/28.4Nm
Positioning accuracy	X/Y axis	≤0.1mm/ Full length
Repositioning accuracy	X/Y axis	≤0.05mm
Hydraulic system	Hydraulic pump pressure/flow rate	6.5MPa /25L/min
Hydraulic system	Hydraulic pump motor power	3kW
Pneumatic system	Compressed air pressure	≥0.4MPa

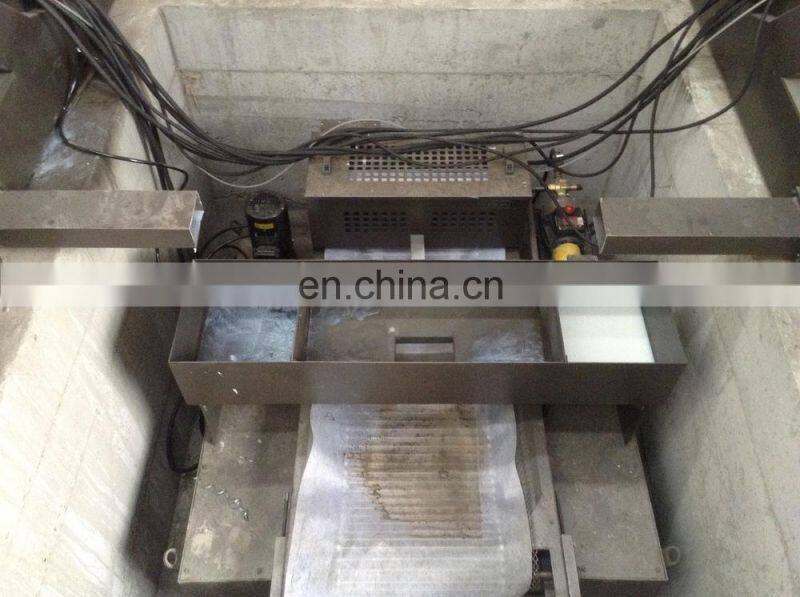

Chip cleaning and cooling	Chip cleaner type	Plate chain type
	Chip cleaner no.	2
	Chip cleaning speed	1m/min
	Chip cleaner motor power	0.75kW
	Motor power of inner cooling water pump	3kW
	Motor power of Outer cooling water pump	0.75kW
Automatic lubricating system	Lubrication pressure	2MPa
	Lubrication point oil injecting amount	0.1mL
	Lubrication period	6-10min
Electric system	CNC system	FAGOR8055
Electric system	CNC axis NO.	4
Tool change system		5 tools
Whole power of motors		Approx. 48kW
Overall size	LxWxH	Approx. 5800X5800X3600mm
Weight	Approx. 28t

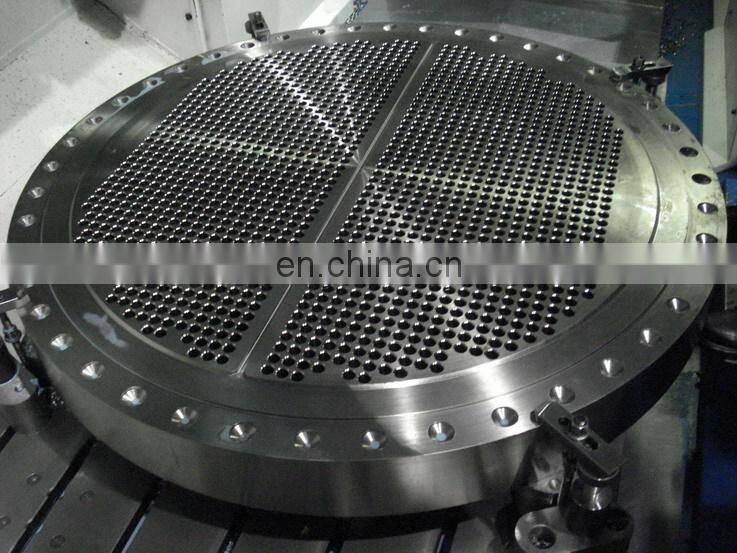

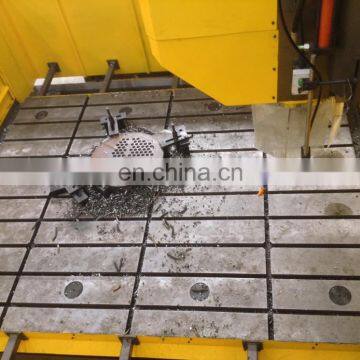

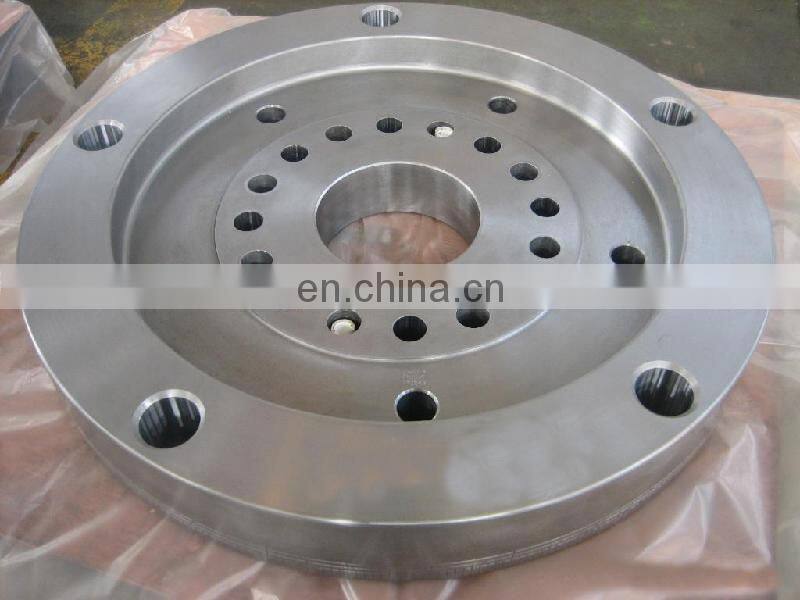

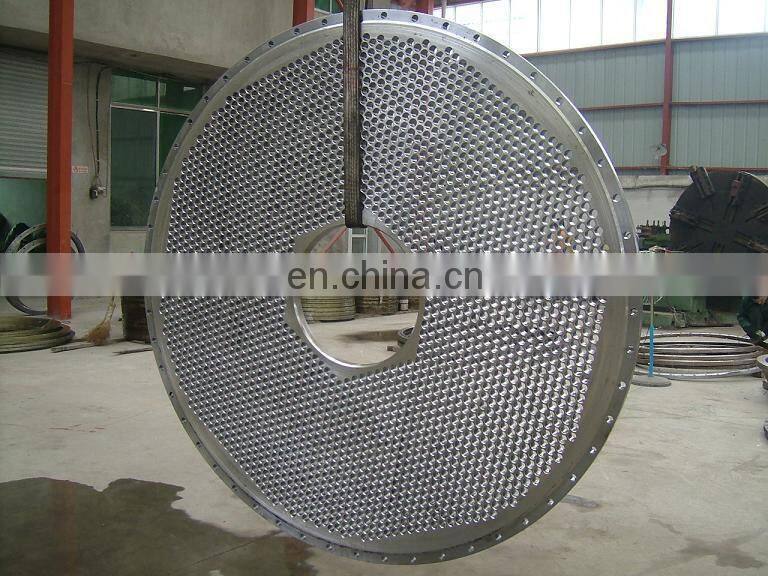

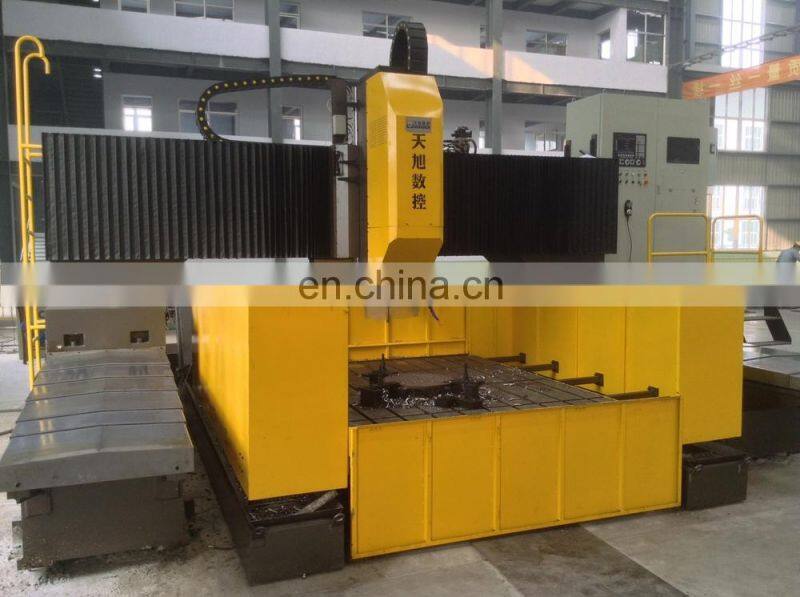

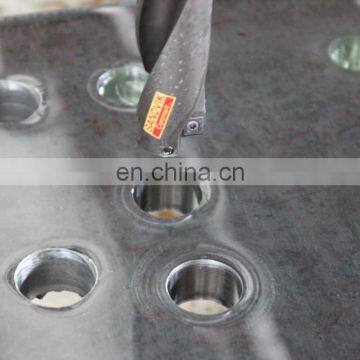

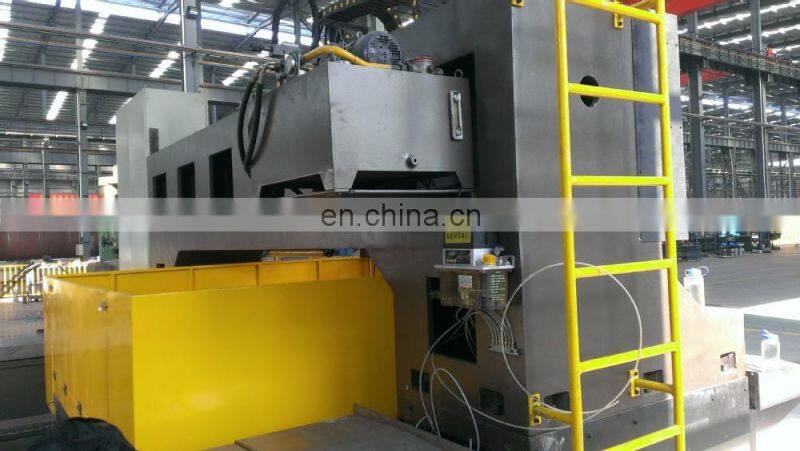

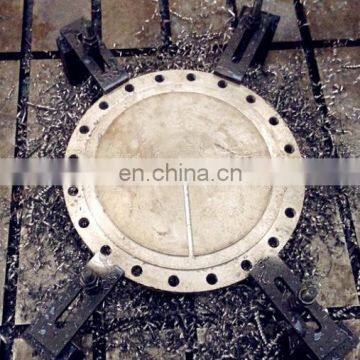

4,Pictures Of Products:

5,Our Customers :

Your Success Is Our Business !

You will be satisfied when it comes to choosing us!
