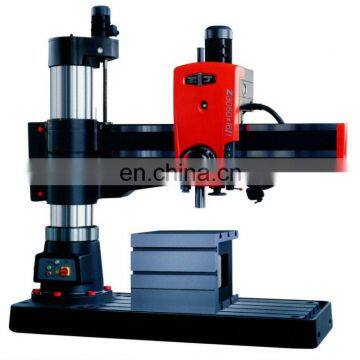

Help CenterRadial Drilling Machine Z3040*16/1 Model
Related Products
-
Radial Drilling Machine Z3040*16/1US$ 1 - 9,300MOQ: 1 Set -
Good Quality Gantry CNC Drilling Machine/GDC 1620US$ 1 - 200,000MOQ: 1 Set
-
Universal Radial Drilling Machine /Z3040*16IUS$ 1 - 200,000MOQ: 1 Set
-
ZJ Travelling-type Universal Radial Drilling MachineUS$ 1 - 20,000MOQ: 1 Set
-
SMTCL Radial Drilling Machine Z3050*16/1 New DesignUS$ 1 - 500,000MOQ: 1 Set
- Basic information
Max. drilling diameter: 40mm, arm length: 1600mm;
Spindle traverse: 315mm, speed range: 25-2000rpm.
- Feature
Our company has nearly 60 years' experience on the development and manufacture of
radial drilling machines, and processes advanced manufacturing processes and
equipment which make it the largest such facility in the world. The machine can be
broadly used for boring, enlarging, reaming, countersinking, tapering, etc.
High-strength cast iron or special steel is used for critical components.
The parts and components are durable through 1st class heat treatment.
The basic components are provided with stable precision through specialized processing.
The hydraulic power can realize spindle variable speed flexibly on the safe side.
Economic cutting is availiable for 16-step spindle rotation speed and feed.
The hydraulic power can realize clamping and unclamping quickly on the safe side.
It is quick and convenient to operate under the mechanical, electrical and hydraulic control over
the headstock.
New technology keeping improving shows the style of the times.
- Technical parameter
| Item | Unit | Z3040x16/1 | |
| max. drilling dia. | mm | 40 | |
| distance between spindle centerline & generatix | max. | mm | 1600 |
| min. | mm | 350 | |
| distance between spindle centerline & working surface | max. | mm | 1250 |
| min. | mm | 350 | |
| spindle traverse | mm | 315 | |
| spindle taper (Morse) | No. | 5# | |
| spindle speed range | r/min | 25-2000 | |
| spindle speed steps | step | 16 | |
| spindle feed range | mm | 0.04-3.2 | |
| spindle feed steps | step | 16 | |
| worktable dimension | mm | 630*500*500 | |
| spindle box(cross arm) horizontal moving distance | mm | 1250 | |
| Max. allowable torque | Nm | 400 | |
| main motor power | kw | 3 | |
| rocker arm landing distance | mm | 580 | |
| slider moving distance | mm | - | |
| total weight | kg | 3500 | |
| out dimenstion | mm | 2500*1070*2840 | |
