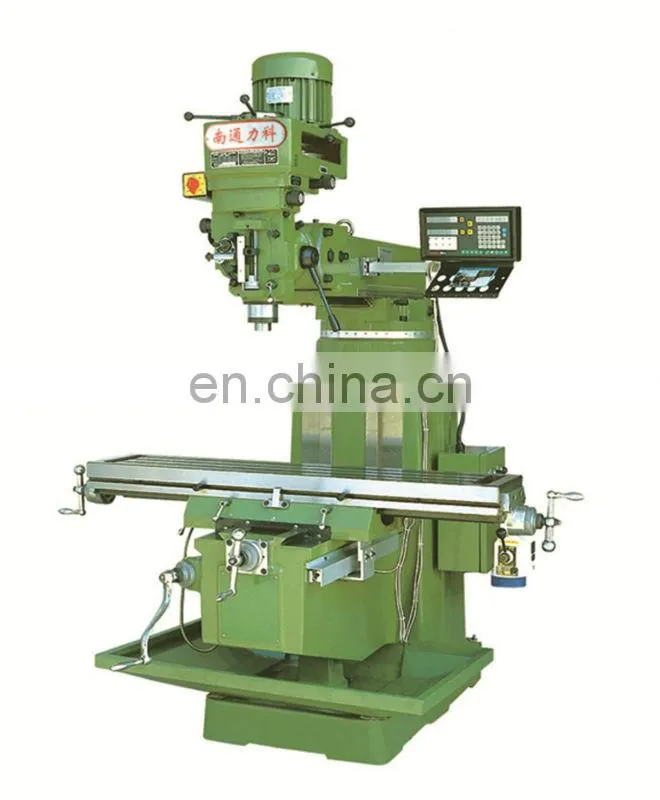

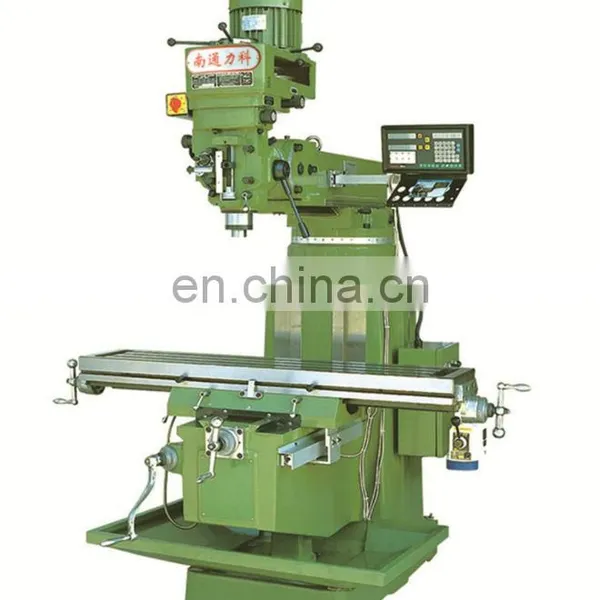

PRODUCT NAME:XJ6330A universal radial milling machine
SPECIFICATIONS:
| Item | Units | X6330A |
| Table size | mm | 300x1370 |
| No.of T-slots | 3 | |
| Width of T-slots | mm | 14 |
| Distance between T-slots | mm | 80 |
| spindle taper | R8 | |
| Longitudinal travel(manual/auto) | mm | 900 |
| Cross travel(manual/auto) | mm | 420 |
| Vertical travel(manual/auto) | mm | 460 |
| main spindle bore dia. | mm | 13 |
| spindle travel | mm | 127 |
| distance frpm spindle nose to table surface | mm | 100~500 |
| distance from centre line of spindle to vertical guideway surface | mm | 140-520 |
| No.of feeds | steps | 16 |
| spindle feed rate | mm | 0.04/0.08/0.15 |
| Spindle speed range | rpm | 80~5440 |
| max.swivel angle of milling head( longitudinal /cross) | - | ±90°/±45° |
| motor of milling head | kw | 2.2 |
| coolant pump motor | w | 40 |
| Overall dimensions(LxWxL) | mm | 1780x1480x2250 |
| weight of the machine | kg | 1600 |
| guideway of the machine body | dovetail | |
| power of feed motor | kw | 0.2 |
STANDARD ACCESSORIES:
drawbar,one set of R8 collet, wrenches,oil gun,slot type screwdriver,cross head screwdriver
OPTIONAL ACCESSORIES(charge separately):
deviding head, DRO(for two axis or three axis), machine vise,rotary table,power feed,etc.
WHY CHOOSE US?
We are the MANUFACTURER of high quality milling machine with competitive price!
Such as vertical milling machine X5040/X5032, universal horizontal milling machine
X6140/X6132,radial milling machine X6330, cnc milling machine,etc.
The sales performance, satisfied accessories,longtime work team experience,
stability & durability of the machines are our best selling points!
|
Company Brief Nantong Lecroy Machine Tool Manufacturing Co,.Ltd specializes in machine tool research and development, design, manufacturer and sales. We have a long history to produce precision machine tool. |
|
|
Assembly shop of vertical machining center We follow strict assembly technique after we check each parts are eligible. |
|
|
Assembly shop
|
|
|
Warehouse |
|
|
Casting
|
|
|
The main parts gear
|
|
