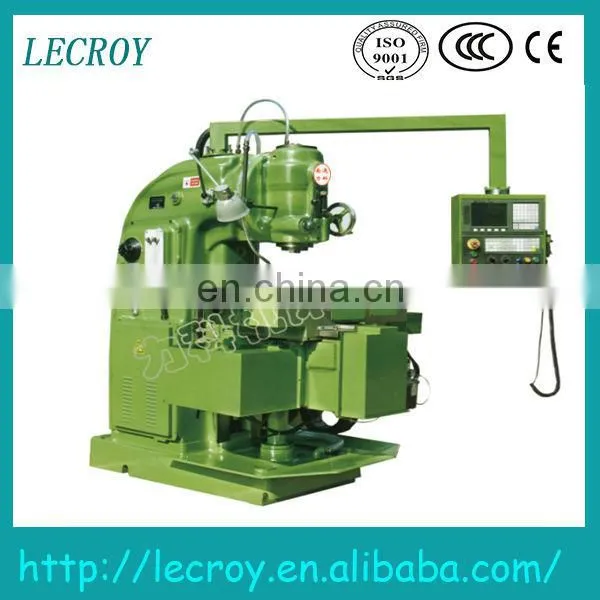

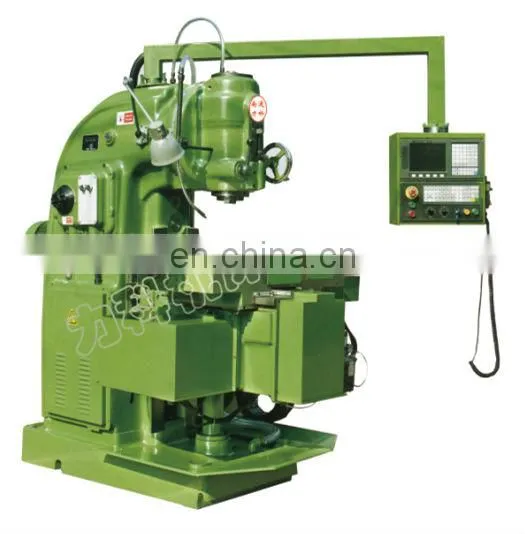

1.The photo of machine( XK5032-320x1325 metal processing cnc mill machine )
2.The specifications of machine
| Item | Units | XK5032 | |
| Table | Table size | mm | 320x1325/1600 |
| No.of T-slots | 3 | ||
| Width of T-slots | mm | 18 | |
| Distance between T-slots | mm | 70 | |
| Max load | kg | 500/450 | |
| Travel | Longitudinal travel(manual/auto) | mm | 700/980 |
| Cross travel(manual/auto) | mm | 250/310 | |
| Vertical travel(manual/auto) | mm | 360/375 | |
| Accuracy of worktable |
Position accuracy of worktable | mm | 0.035/0.045 |
| Repeat position accuracy of worktable | mm | 0.025/0.035 | |
| Spindle | Spindle taper | 7:24(ISO NO.50) | |
| Spindle bore diameter | mm | 29 | |
| Spindle travel | mm | 85 | |
| Max. angle of vertical milling head | deg | ±45 | |
| Distance between spindle nose and table surface(Min./Max.) | mm | 45/415 | |
| Distance from vertical guidway to spindle centerline | mm | 350 | |
| Distance from vertical guidway to center of T-slot in center worktable center | mm | 215/470 | |
| Spindle speed range | r/min | 30-1500 | |
| Spindle speed step | steps | 18 | |
| Feedrates | Feed rate of axis x | mm/min | 6-3500 |
| Feed rate of axis y | mm/min | 6-3500 | |
| Feed rate of axis z | mm/min | 6-1200 | |
| Motor | Power capacity | KVA | 23 |
| Power of main motor | KW | 7.5 | |
| Main motor rotate speed | r/min | 1450/1440 | |
| Longitudinal feed motor torque | Nm | 10 | |
| Transverse feed motor torque | Nm | 10 | |
| Vertical feed motor torque | Nm | 15 | |
| Power of coolant pump motor | KW | 0.125 | |
| Rotate speed of coolant pump motor | r/min | 2790 | |
| Others | Overall dimensions(LxWxH) | mm | 2272/2550X1970X2094 |
| Net weight | kg | 2800 | |
| Dimentions of control cabinet(LxWxH) | mm | 450X420X1200 | |
| Dimentions of maneuvering box(LxWxH) | mm | 450X420X280 | |
| Weight of maneuvering box | kg | 30 | |
3.Accessories of machine
Standard Accessories:
wrenches,sleeves,morse taper intermediate sleeve,end mill arbor,spanner for end mill arbor,drawbar, oil gun, lump,cooling device(in the machine),RS232 communication cable
Optional Accessories (charge separately):
machine vise,milling chuck,boring chuck,facing cutter,vertical mill cutter,etc .
4.Maching equipment
5.Why choose us?
We are the MANUFACTURER of high quality milling machine with competitive price!
Such as vertical milling machine X5040/X5032, universal horizontal milling machine X6140/X6132,radial milling machine X6330, etc.
The sales performance, satisfied accessories, longtime work team experience,stability & durability of the machines are our best selling points!
6.Company Profile:
Nontong Lecroy Machine Tool Manufacture Co., Ltd., specializes in machine tool research and development design, manufacture and sales, with many years of production history of precision machine tool.
As "X53K milling machine professional manufacturer",the company has experienced engineering andtechnical staff and production workers.and more than 12000 square meters of workshop, we inherit and carry foward the traditional manufacturing technology with a large number of high level and precision machining equipment, perfect quality assurance system and complete testing facilities.
We professionally produce X5040(X53K), X5032(X52K) vertical knee type milling machine,X6140(X63W),X6132(X62W) series of unversal milling machine, X6325,X6330,X6332 rocker unversal milling machine etc. and we always devotes to development of new products to meet the various needs of customers!
With business philosophy of "excellent quality,customer first,integrity-oriented".we supply high quality machines to more and more customers,we will spare no efforts to pay you back with excellent quality, competitive price and quick aftersale service for your attention and support!
