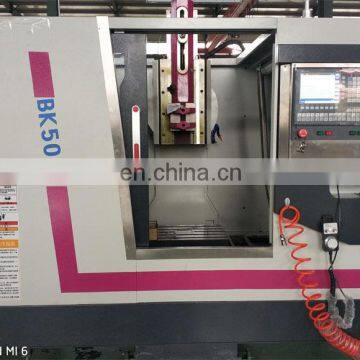

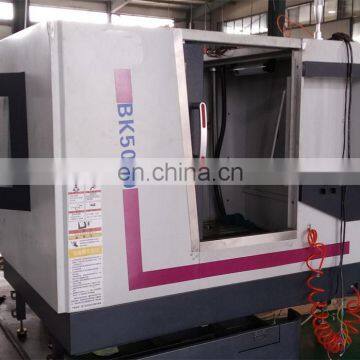

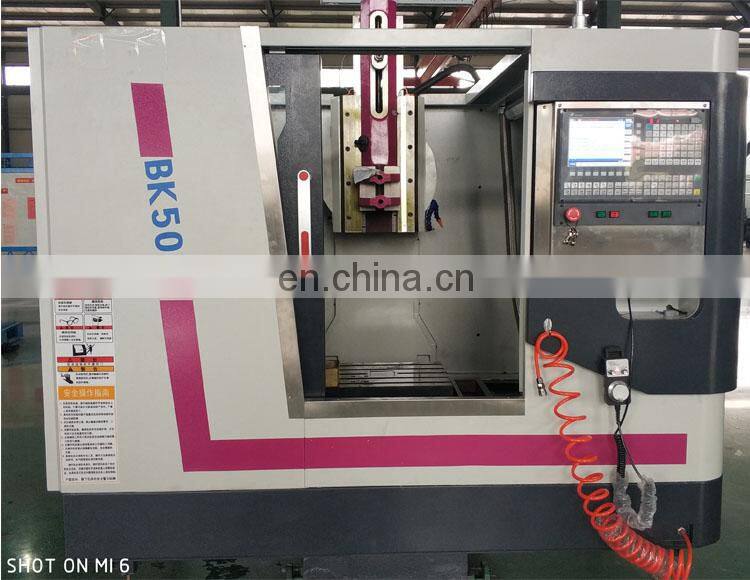

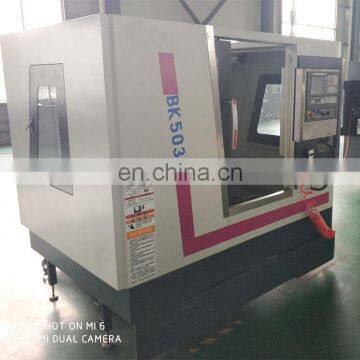

BK5030 Promotion activities vertical cnc slotting machine
Model |
|
BK5030 |
The Max. Slotting Length of Ram |
mm |
300 |
|
Adjusting Travel of Ram |
mm |
75 |
Number of pillow movements |
n/min |
30--180 |
Table size |
mm |
550*405 |
table travel(X,Y) |
mm |
280*330 |
The Distance between Axial Line of Toolhead Bearing Hole to Front-arm of Column |
mm |
505 |
The Distance between End Plane of Toolhead Bearing Hole to Worktable |
mm |
540 |
X Motor Torque |
(N.M) |
6 |
Y Motor Torque |
(N.M) |
6 |
Rapid Movement |
X(m/min) |
5 |
Y(m/min) |
5 |
|
Ball Screw(X) |
|
FFZD3205-3/P4 |
Ball Screw(Y) |
|
FFZD3205-3/P4 |
Main Motor Power |
KW |
3.7 |
|
|
Product description and usage
BK5030 Promotion activities vertical cnc slotting machine is a new product designed and developed by our company.This machine tool has the function of cutting plane, forming surface and keyway.The machine adopts the famous and superior numerical control system at home and abroad to realize full screen editing of Chinese characters.The main transmission is a crank and crank mechanism, and the servo motor drives large torque through deceleration. X and Y feed are servo control to realize stepless speed regulation function, X to ball screw is directly connected with the motor, Y to ball screw is transmitted with the motor through synchronous belt.

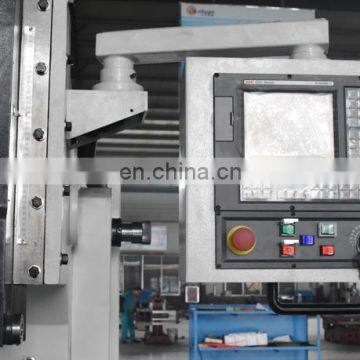

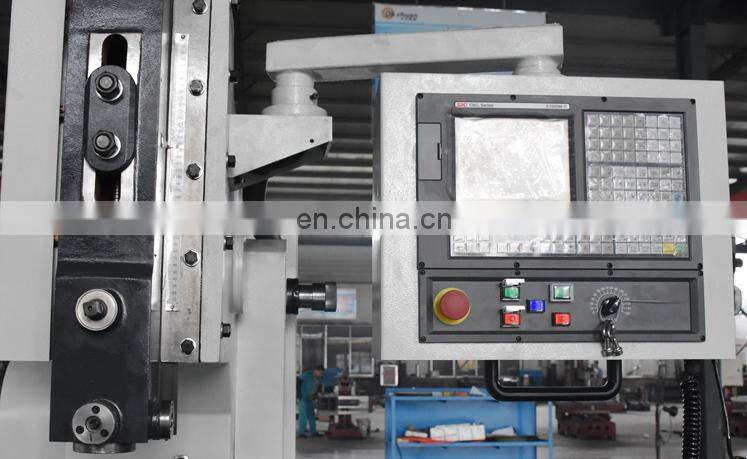

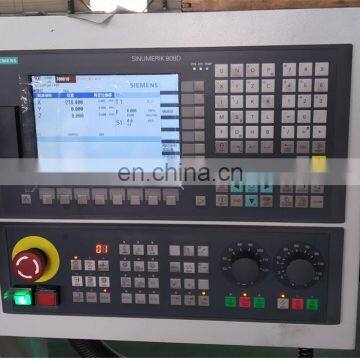

1. BK5030 Promotion activities vertical cnc slotting machine rotary table is controlled by knd1000m-c numerical control system.Equipped with external hand wheel.
2. The transmission mode is synchronous belt transmission with low noise and high transmission power.
3. The main motor is the servo motor.
4. The Y-axis screw nut type is preloaded with double nuts.
5. The vertical degree of Z direction and Y axis is no more than 0.02mm.

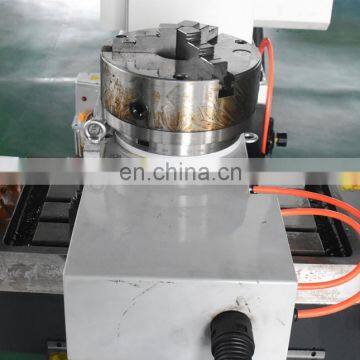

6. Optional TK13250 CNC rotary table is available
7. Full protection.
Luyang CNC machinery company has 20 years of production lathe experience, main CNC lathe, CNC milling machine, processing center, Swiss CNC lathe high-tech enterprise.The company has a professional production and development team and favorable after-sales technical team support.The company takes the strength to make the product, the service wins the customer, the customer as the basic management concept.Our company has gained a good reputation both at home and abroad by providing customers with cost-effective CNC machine tools and excellent timely sales advice and after-sales service.Development, innovation, people-oriented, is the direction my company has been working on.
1. The warranty period of our products is one year. If there is any damage in the warranty period, we will send it to you for free.We provide 24-hour online technical service and contact us at any time.
2. 365 days without false service, uninterrupted supply, pre-sales consultation, after-sales service and other technical support
We also offer free technical training and overseas services.
1.Non-fumigation packaging, we use seaworthy plywood.
2. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
3.Water-proof and damp proof, water resistant film wraped all the machine.
4.Fully sheathed case,prevention of collision and keep the goods intact.
1. Our customers come from more than 40 different countries and promote the most suitable products for different countries to provide the best service;
2 we participated in many exhibitions, the Chinese machinery exhibition, guangzhou commodities fair, through the exhibition to expand overseas market, we invite customers to visit our factory, also can be customized according to customer demand, through our products and services for customers
1.Our company has 20 years of experience in CNC lathes.Our company produces more than 1000 CNC machine tools per year, more than 40 countries export, and get good evaluation and affirmation.The high quality assurance of our lathe has good rigidity and stability.
2.electrical components from famous brand, provided by the Japanese and Taiwanese brands, its mechanical precision reach or exceed the international standard. Our CNC lathe is durable, safe and reliable, life for more than 10 years.
3. After 20 years of improvement, we have formed a complete production to maintain high quality and control costs. We will provide high quality prices to help you establish advantages in your local market.
4.We have a professional technical service team that provides the best service for you. Overseas services can provide 24-hour online sales and free after-sales service.
FAQ
How long is your warranty period?
A: our warranty period is one year, and we will maintain the product free of charge during the warranty period.Use our machines to supply standard parts and accessories during shipment.In the correct operation, if there are any damaged parts or accessories, we will replace them immediately by airmail or express mail.
What kind of packing do you have?
Answer: we use a plywood cases, to ensure the packing quality durable, fully protect the safety of the goods in the cabinet, appearance is bright and clean, smooth and beautiful, durable, has low cost, big load, afraid of sun rain no moth, etc.
How long will your delivery date be?
A: our delivery date is one month.30 days
How can I contact you?
Through cell phone number and QQ, there is also email contact.
