xk7125 3 axis 4 axis high speed vertical cnc milling machine center for metal
- 1000 per Month
- T/T Credit Card
- BC6050 company price cnc slotting machine of tool horizontal
- CK6432 cnc training machine horizontal lathe with factory price
- CK6130 lathe machine cnc turning center center with price
- CK6130 high quality cheap horizontal cnc small metal lathe for sale
- CK0640 Cheap mini horizontal metal educational cnc lathe machine
- CK6432 high speed precision horizontal chinese metal cnc small lathe
Product Details
Brand Name: | Lu Young | Place of Origin: | Shandong, China | After-sales Service Provided: | Engineers available to service machinery overseas |
Condition: | New |
Product Description
xk7125 3 axis 4 axis high speed vertical cnc milling machine center for metal
xk7125 3 axis 4 axis high speed vertical cnc milling machine center for metal is composed of mechanical equipment and numerical control system. Is an automated machine that is suitable for efficient machining of complex parts. CNC machining center is the world's highest yield, the most widely used one of the CNC machine tools. Its comprehensive processing capacity is strong, the workpiece can be completed after a single processing content, processing accuracy is higher, the middle of the difficulty of the bulk of the workpiece, the efficiency of ordinary equipment is 5 to 10 times, in particular, it can be completed Many ordinary equipment can not be completed processing, the shape of the more complex, high precision single-piece processing or small and medium-sized multi-species production is more applicable. |
Specification of xk7125 3 axis 4 axis high speed vertical cnc milling machine center for metal
CNC Milling Machine | XK7125 |
X-Axis travel | 535mm |
Y-Axis travel | 320mm |
Z-Axis travel | 375mm |
Distance from Spindle nose to worktable surface | 25-425mm |
Distance from center of spindle to surface of column ram | 345mm |
T slot (width x no.) | 16mmX3 |
Worktable size | 1000X250mm |
Max.loading of worktable | 120Kg |
Power of spindle motor | 1.5/2.2KW |
Spindle speed | 4000/(or 8000/12000) |
Spindle taper | BT30 |
Spindle bearing | P4 |
Rapid traverse speed of 3 axes | X /Y:15m/min(servo) |
Z:15m/min(servo) | |
Cutting feeding rate | 0-2000mm/min |
Min.set unit & moving unit | 0.001mm |
Pitch of X/Y axes | 6mm |
Pitch of Z axis | 6mm |
Positioning accuracy (300mm) | ±0.008 |
Repeatability accuracy (300mm) | ±0.005 |
Changing way of tools | Manual |
Tool spec. max.dia(neighboring Tool) x | φ60mmX3.5KgX175 |
weight x length | |
Machine weight | 1700kg |
Air pressure | 0.6MPa |
Power of cooling pump for cutting | 370W |
Overall sizse | 1516X1764X1708mm |
1. High strength resin sand casting

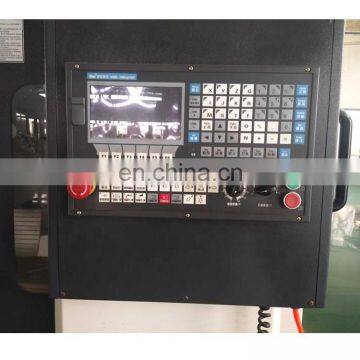

2. KY CNC Controller
3. 12 tools auto tool changer
4. BT30 Taiwan high speed spindle unit 8000rpm
5. Separate the hand wheel
6. Pneumatic broach system
7. Full guard
8. Automatic intermittent lubrication
Workpiece Sample:
Product process:
The feature of xk7125 3 axis 4 axis high speed vertical cnc milling machine center for metal
1. Auto Tool Changer :Our ATC all come from Taiwan famous brand;Hat ATC Brand is HDW(Taiwan hand wheel), Disc type brand is OKADA.
2. CNC controller system: You can choose the cnc system brand: KND,GSK,SYNTEC, SIEMENS, FANUC
3.Modular panel and electronic controller system ensure the system with high reliability.
4.Ball screw pre-tightening and protection: Both of the ball screw adopt imported bearing and lock nut,that could ensure the feeder precision. The bumper block at the end of the ball screw could protect the machine parts when have impact.
5.4 Axis and 5 Axis support : if you have special request for the 4 axis or 5 axis, we also could supply as your request.
Why choose our xk7125 3 axis 4 axis high speed vertical cnc milling machine center for metal ?
1.Strong strength,The company has 20 years of production experience, rich product range to meet the needs of different customers.
2.Quality product ,Workshop workers skilled and rigorous testing of product quality, strict control of each production process.
3.Direct factory price,provide competitive factory price and save your costs.
4.7×24 hours after-sale service,Any questions, please contact us directly at any time
5.Strong packing,will protect the goods from any possible damage during transit.
6.TRADE ASSURANCE,protect your orders from payment to delivery.
20 years' production experience
The main product of Taian Luyoung Machinery Co.,Ltd is CNC lathe machine, CNC milling machine, CNC machine centers,CNC swiss type automatic lathe. Annual output is 900sets/ year.
1.More than 20 years of production experience.
2.Exported more than 40 countries.
3.More than 300 staffs in factory.
4.CE and ISO9001 certification .
5.7×24 hours online service.
Who Choose Lu Young
The products have exported more than 40 countries around the world, please look who choose us:
7×24 hours after-sale service
1. Warranty for one year.
2.Supply 7×24 hours online technology support.
3.Professional solution one by one.
4.Free training for customers online or in our factory.
5.The oversea service is available.
Strong packing will protect the goods from any possible damage during transit
Packaging of xk7125 3 axis 4 axis high speed vertical cnc milling machine center for metal
1.Non-fumigation packaging, we use seaworthy plywood.
2. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
3.Water-proof and damp proof, water resistant film wraped all the machine.
4.Fully sheathed case,prevention of collision and keep the goods intact.
1.Does the xk7125 3 axis 4 axis high speed vertical cnc milling machine center for metal can be customized?
Of course, if our standard configuration can not meet your needs, please tell us that we redesign and produce the machine to meet your needs. |
2.How long is the warranty period of the cnc lathe machine?
Warranty period is one year, if parts damage within one year, we will send free of charge. Free online training or factory training to ensure that you can use our products properly. We can offer overseas paid installation, commissioning service. |
3.What time is your work time?
We work online 24 hours a day, offer quotes and technical support at any time. |
4.Do you use the Trade Assurance on Alibaba?
Yes, all of the order use this.Can guarantee the quality of the product and your payment. |
5.How to get a quote?
Please tell us the model you need or send us drawings of the workpiece, then we can recommend the most suitable products to you. We will give you the best offer within 24 hours. |
How to contact us? My mobile/whatsapp: +86 18660853235; QQ:3494630853
|
