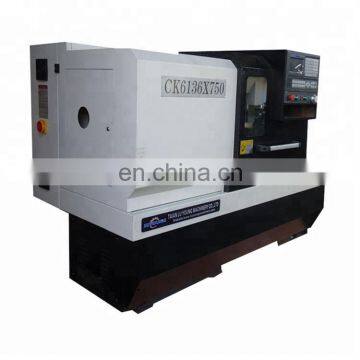

CK6136 small pneumatic lathe machine with automated
| CK6136 | ||||
| Item | CK6136A | |||
| Max. swing dia. over bed | 360mm | |||
| Max. swing dia. over cross slide | 190mm | |||
| Max. processing length(mm) | 500 | 750 | 1000 | |
| Dia. of spindle hole | 60mm | |||
| Spindle speed | 150-2500rpm | |||
| spindle taper | MT6 | |||
| Tool holder | ||||
| Tool bar section | 20x20 | |||
| Main motor power | 4kw | 5.5kw | ||
| X/Z axis fast feeding speed | 6/8 m/min | |||
| X/Z axis position accuracy(mm) | 0.01/0.015 | |||
| X/Z-axis repeatability(mm) | 0.012/0.013 | |||
| Clamping | 3 Jaw Manual Chuck(optional pnematic or hydraulic chuck) | |||
| Tailstock sleeve dia. | 60mm | |||
| Tailstock sleeve travel | 120mm | |||
| Tailstock taper | MT4 | |||
| Dimension | 1850x1400x1700 | 2120x1400x1700 | 2370x1400x1700 | |
| Weight(kg) | 1500 | 1650 | 1750 | |

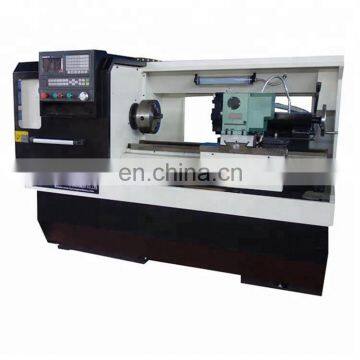

CK6136 small pneumatic lathe machine with automated guide rail by the super audio quenching and fine grinding, high precision, main shaft adopts frequency conversion stepless speed regulation control, can automatically complete the parts of the inner and outer cylinder, end face, arbitrary conical surface, circular arc surface, male inch thread cutting process continuous processing, etc.

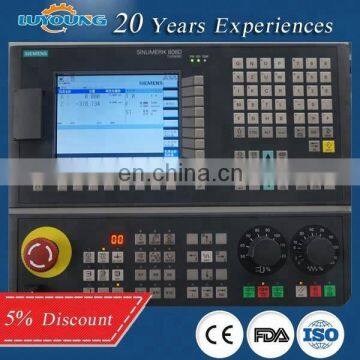

According to the user's request, the nc system of Siemens or Japan will be selected.
According to the requirement of the user to add pneumatic chuck, hydraulic chuck and other special accessories.

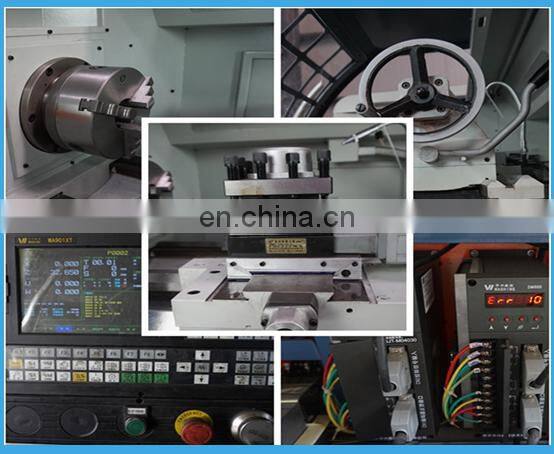

ck6136 small pneumatic lathe machine with automated High precision tool, the main shaft adopts Harbin bearing HRB high precision double ball bearing support, low noise, high precision and good stability.
2. The CK136 cnc lathe machine guide is refined by ultrasonic quenching, high hardness and good rigidity.
3. The electric four-position tool holder is positioned with precise gear positioning, and the positioning accuracy is high.

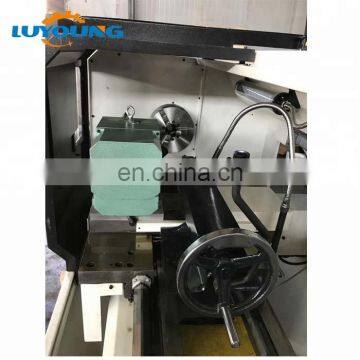

4. The tail frame has fast CAM clamping device, and the work efficiency is high.The tail seat sleeve has the device to prevent the drill bit rotation, avoiding the taper of the hole of the socket sleeve caused by the rotation of the drill caused by the wrong operation, and the tail part is protected effectively.
5 CK6136 cnc lathe machine the hybrid stepping motor driver or optional ac servo motor drive, can also according to user's request matching other systems.
6. Easy to operate, especially suitable for complex parts or high precision machining of high-volume parts, which is also the first choice for numerical control teaching.
Luyang CNC machinery company has 20 years of production lathe experience, main CNC lathe, CNC milling machine, processing center, Swiss CNC lathe high-tech enterprise.The company has a professional production and development team and favorable after-sales technical team support.The company takes the strength to make the product, the service wins the customer, the customer as the basic management concept.Our company has gained a good reputation both at home and abroad by providing customers with cost-effective CNC machine tools and excellent timely sales advice and after-sales service.Development, innovation, people-oriented, is the direction my company has been working on.
Our company continuously strengthen product performance improvements, innovation cost-effective CNC machinery, optimize product quality control system, to provide global support services as the dominant direction of the development of the company.
1. Our customers come from more than 40 different countries and promote the most suitable products for different countries to provide the best service;
2.we participated in many exhibitions, the Chinese machinery exhibition, guangzhou commodities fair, through the exhibition to expand overseas market, we invite customers to visit our factory, also can be customized according to customer demand, through our products and services for customers
Our packing is standard sea export plywood box, which can guarantee the quality of the goods and also reduce the loss.
The mode of transportation is by sea.
You can also pack and transport according to your requirements
1.Non-fumigation packaging, we use seaworthy plywood.
2. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
3.Water-proof and damp proof, water resistant film wraped all the machine.
4.Fully sheathed case,prevention of collision and keep the goods intact.
1. We have excellent technology, have a professional r&d team and quality control system, manufacture and sell the most reliable and reliable technical products, and strictly control each product.Make sure the products are 100% qualified, and can be customized according to your requirements.
2 we have a solid strength, committed to the development achievements of numerical control equipment customers, innovation, honest business philosophy, through the international quality certification standards, products many times get the patent certificate.
3. We have reliable quality, strict control of quality control, high quality products and high efficiency services. We have received the approval of customers, and our price is excellent.
4 have perfect service, equipped with professional service team, perfect after-sales service team, quickly solve the problem for you.
How long is your warranty period?
A: our warranty period is one year, and we will maintain the product free of charge during the warranty period.Use our machines to supply standard parts and accessories during shipment.In the correct operation, if there are any damaged parts or accessories, we will replace them immediately by airmail or express mail.
What kind of packing do you have?
Answer: we use a plywood cases, to ensure the packing quality durable, fully protect the safety of the goods in the cabinet, appearance is bright and clean, smooth and beautiful, durable, has low cost, big load, afraid of sun rain no moth, etc.
How long will your delivery date be?
A: our delivery date is one month.30 days
CK6136 small pneumatic lathe machine with automated products can be customized?
A: of course, if our product can't meet your need, tell us the model and send us the drawing, recommend suitable products to you, we can also design and produce the machine meet your requirements.
How can I contact you?
Through cell phone number and QQ, there is also email contact.
