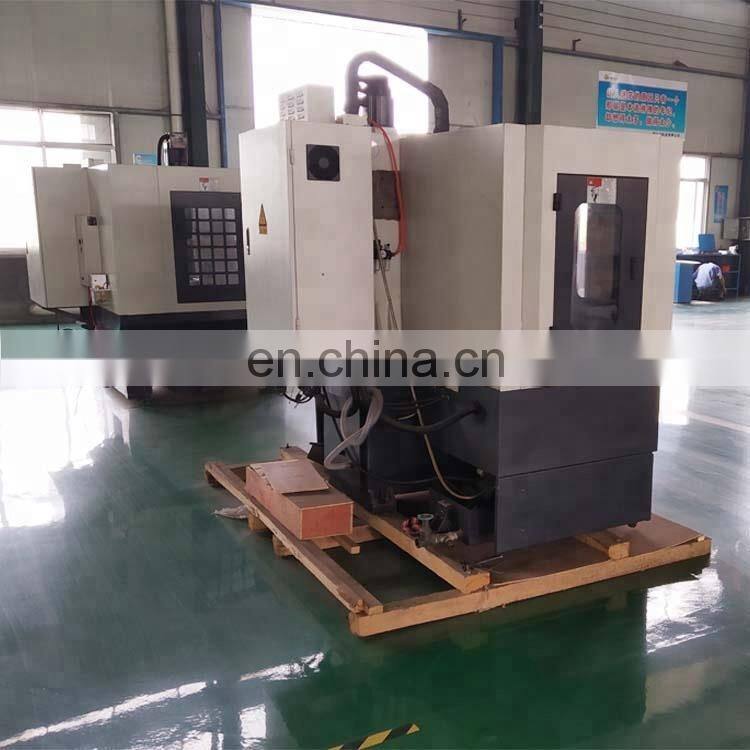

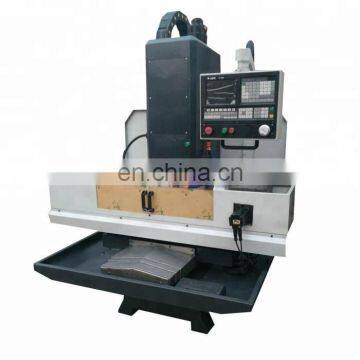

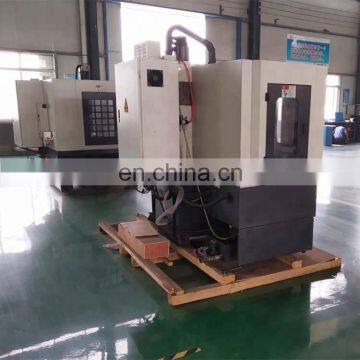

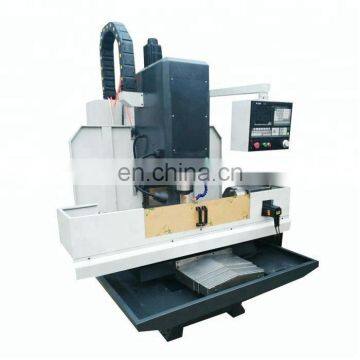

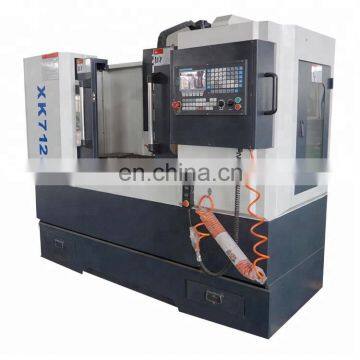

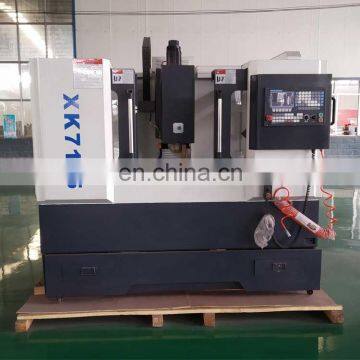

XK7125 cheap milling machine vertical with hot sale
| CNC Milling Machine | XK7125 |
| X-Axis travel | 535mm |
| Y-Axis travel | 320mm |
| Z-Axis travel | 375mm |
| Distance from Spindle nose to worktable surface | 25-425mm |
| Distance from center of spindle to surface of | 345mm |
| column ram | |
| T slot (width x no.) | 16mmX3 |
| Worktable size | 1000X250mm |
| Max.loading of worktable | 120Kg |
| Power of spindle motor | 1.5/2.2KW |
| Spindle speed | 4000/(or 8000/12000) |
| Spindle taper | BT30 |
| Spindle bearing | P4 |
| Rapid traverse speed of 3 axes | X /Y:15m/min(servo) |
| Z:15m/min(servo) | |
| Cutting feeding rate | 0-2000mm/min |
| Min.set unit & moving unit | 0.001mm |
| Pitch of X/Y axes | 6mm |
| Pitch of Z axis | 6mm |
| Positioning accuracy (300mm) | ±0.008 |
| Repeatability accuracy (300mm) | ±0.005 |
| Changing way of tools | Manual |
| Tool spec. max.dia(neighboring Tool) x | φ60mmX3.5KgX175 |
| weight x length | |
| Machine weight | 1700kg |
| Air pressure | 0.6MPa |
| Power of cooling pump for cutting | 370W |
| Overall sizse | 1516X1764X1708mm |
XK7125 cheap milling machine vertical with hot sale is composed of mechanical equipment and numerical control system. Is an automated machine that is suitable for efficient machining of complex parts. CNC machining center is the world's highest yield, the most widely used one of the CNC machine tools. Its comprehensive processing capacity is strong, the workpiece can be completed after a single processing content, processing accuracy is higher, the middle of the difficulty of the bulk of the workpiece, the efficiency of ordinary equipment is 5 to 10 times, in particular, it can be completed Many ordinary equipment can not be completed processing, the shape of the more complex, high precision single-piece processing or small and medium-sized multi-species production is more applicable.

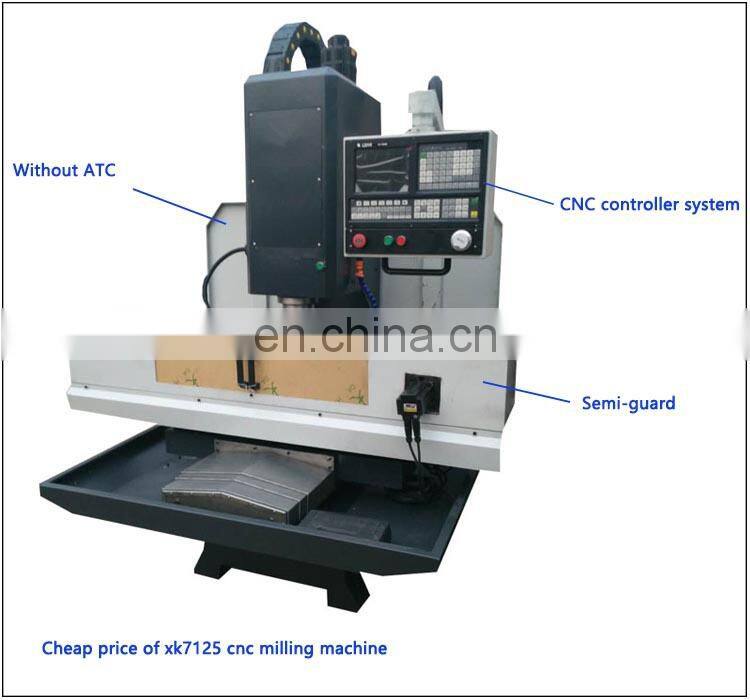

The feature of XK7125 high qualiy cnc milling machine with GSK controller
1. Auto Tool Changer :Our ATC all come from Taiwan famous brand;Hat ATC Brand is HDW(Taiwan hand wheel), Disc type brand is OKADA.

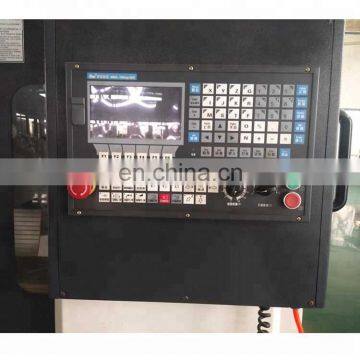

2. CNC controller system: You can choose the cnc system brand: KND,GSK,SYNTEC, SIEMENS, FANUC
3.Modular panel and electronic controller system ensure the system with high reliability.
4.Ball screw pre-tightening and protection: Both of the ball screw adopt imported bearing and lock nut,that could ensure the feeder precision. The bumper block at the end of the ball screw could protect the machine parts when have impact.
5.support : if you have special request for the 4 axis or 5 axis, we also could supply as your request.
1. High strength resin sand casting
2. SIEMENS 808D CNC Controller
3. 12 tools auto tool changer
4. BT40 Taiwan high speed spindle unit 8000rpm
5. Separate the hand wheel
6. Pneumatic broach system
7. Full guard
8. Automatic intermittent lubrication
The main product of Taian Luyoung Machinery Co.,Ltd is CNC lathe machine, CNC milling machine, CNC machine centers,CNC swiss type automatic lathe. Annual output is 900sets/ year.
1.More than 20 years of production experience.
2.Exported more than 40 countries.
3.More than 300 staffs in factory.
4.CE and ISO9001 certification .
5.7×24 hours online service.
1.Non-fumigation packaging, we use seaworthy plywood.
2. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
3.Water-proof and damp proof, water resistant film wraped all the machine.
4.Fully sheathed case,prevention of collision and keep the goods intact.
1. Warranty for one year.
2.Supply 7×24 hours online technology support.
3.Professional solution one by one.
4.Free training for customers online or in our factory.
5.The oversea service is available.
1.Strong strength,The company has 20 years of production experience, rich product range to meet the needs of different customers.
2.Quality product ,Workshop workers skilled and rigorous testing of product quality, strict control of each production process.
3.Direct factory price,provide competitive factory price and save your costs.
4.7×24 hours after-sale service,Any questions, please contact us directly at any time
5.Strong packing,will protect the goods from any possible damage during transit.
6.TRADE ASSURANCE,protect your orders from payment to delivery.
