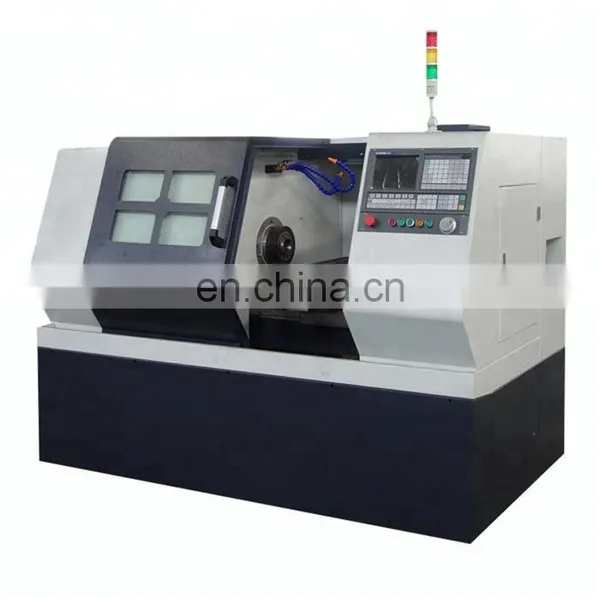

H36 linear guide way cnc turning machine
| Linear Guideway CNC Lathe Machine H360 | |
| max. swing over bed | Φ360mm |
| max. swing over slide | Φ110mm |
| Chuck/collet | 6” hydraulic chuck |
| X axis max travel range | 340mm |
| Z axis max travel range | 250mm |
| Guide way | High speed linear guide way |
| Spindle speed | 4000rpm |
| Spindle nose | A2-5 |
| Spindle hole | Φ48mm |
| Bar through the spindle | Φ38mm |
| Fast feeding speed | X:20 Z:20 m/min |
| Main motor power | 3.7KW(servo) |
| Tool size | 20*20 mm |
| Tool quantity | 4 station electric tool holder |
| X/Z min set unit | 0.001 mm |
| X/Z positionaI accuracy | 0.01 mm |
| X/Z Repositioning Accuracy | 0.005 mm |
| Weight | 1.5 T |
| Configuration: | |
| GSK928 CNC Controller | Auto feeder with change side feature |
| hydraulic collet | |
| Taiwan HIWIN High speed Linear Guide way | |
| Gang type tool holder | |
| Auto lubrication system | |
| Lighting system | |
| Cooling System | |
1. H36 linear guide way cnc turning machine Electromechanical integration design, aesthetic appearance, reasonable structure, high cost performance and high cost of the line rail.
2..linear guide way cnc lathe machine Inclined bed body casting, prevent deformation, improve rigidity and precision.
3. The H36 small cnc lathe machine main shaft adopts the precision spindle unit, the radial pulsation is small, the operation is smooth, the noise is small, the speed is high, the service life is long, the maximum speed of the main shaft unit of luoyang can reach every minute 4000 RPM.The maximum rotating speed of the main shaft of Taiwan posen can be reached at 6000 revolutions per minute.Adopt servo spindle drive, speed output torque large.
4. H36 linear guide way cnc lathe machine Line rail and screw rod adopt Taiwan silver product, high accuracy, dynamic performance, high stability, fast can reach 20 meters per minute.
5. Adopt guangzhou CNC 980TB and 980TD system with powerful functions, quick response and easy operation.
6. The H36 cnc lathe machine spindle motor can be used in the main shaft of guangzhou numerical control, which can realize the quasi-stop, hold the brake, divide the speed, stabilize the speed, and guarantee the low speed and high torque.The power head realizes the milling coincidence.(and optional frequency conversion motor)
7. Clamping mode, using hydraulic station, hydraulic rotary oil cylinder, hydraulic chuck and tube clip.The clamping force is large, stable and easy to replace.

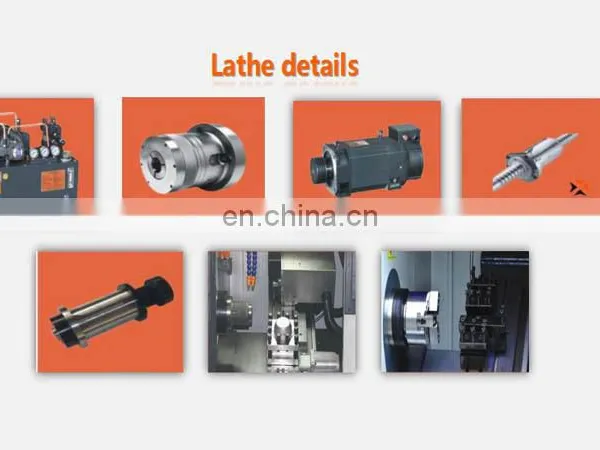

Lathe detailsTaiwan's main shaft
Taiwan collet
Thread rod
Servo motor
Hydraulic station
Power head electric tool holder
Three jaw chuck platoon form
Luyang CNC machinery company has 20 years of production lathe experience, main CNC lathe, CNC milling machine, processing center, Swiss CNC lathe high-tech enterprise.The company has a professional production and development team and favorable after-sales technical team support.The company takes the strength to make the product, the service wins the customer, the customer as the basic management concept.Our company has gained a good reputation both at home and abroad by providing customers with cost-effective CNC machine tools and excellent timely sales advice and after-sales service.Development, innovation, people-oriented, is the direction my company has been working on.
Our company continuously strengthen product performance improvements, innovation cost-effective CNC machinery, optimize product quality control system, to provide global support services as the dominant direction of the development of the company.

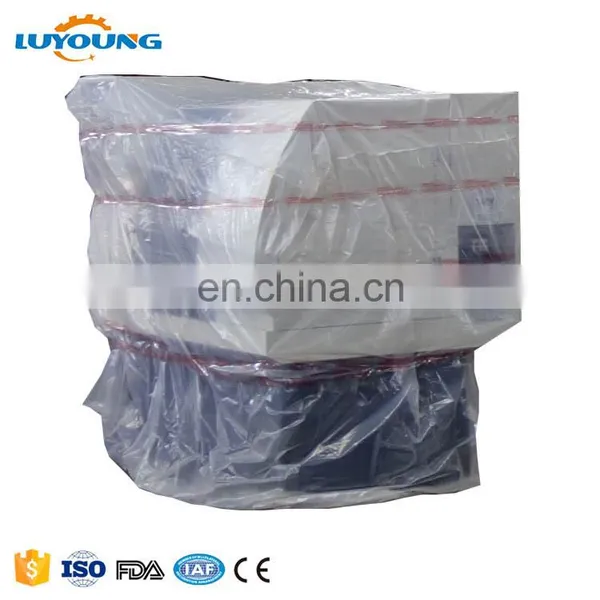

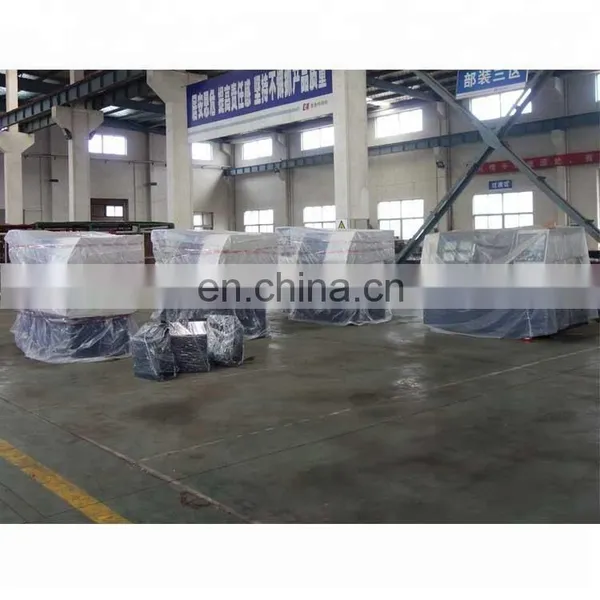

1.Non-fumigation packaging, we use seaworthy plywood.
2. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
3.Water-proof and damp proof, water resistant film wraped all the machine.
4.Fully sheathed case,prevention of collision and keep the goods intact.
1. Our customers come from more than 40 different countries and promote the most suitable products for different countries to provide the best service;
2 .we participated in many exhibitions, the Chinese machinery exhibition, guangzhou commodities fair, through the exhibition to expand overseas market, we invite customers to visit our factory, also can be customized according to customer demand, through our products and services for customersGrowing company strength, also more and more customers choose our products, the company produces the CNC lathe, CNC milling machine,vertical machine center, swiss type cnc automatic lathe annual sales of constant growth, up 20% from 2016 in 2017.
1.Port: Qingdao port or Shanghai port
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.
1. We have excellent technology, have a professional r&d team and quality control system, manufacture and sell the most reliable and reliable technical products, and strictly control each product.Make sure the products are 100% qualified, and can be customized according to your requirements.
2 we have a solid strength, committed to the development achievements of numerical control equipment customers, innovation, honest business philosophy, through the international quality certification standards, products many times get the patent certificate.
3. We have reliable quality, strict control of quality control, high quality products and high efficiency services. We have received the approval of customers, and our price is excellent.
4 have perfect service, equipped with professional service team, perfect after-sales service team, quickly solve the problem for you.
How long is your warranty period?
A: our warranty period is one year, and we will maintain the product free of charge during the warranty period.Use our machines to supply standard parts and accessories during shipment.In the correct operation, if there are any damaged parts or accessories, we will replace them immediately by airmail or express mail.
What kind of packing do you have?
Answer: we use a plywood cases, to ensure the packing quality durable, fully protect the safety of the goods in the cabinet, appearance is bright and clean, smooth and beautiful, durable, has low cost, big load, afraid of sun rain no moth, etc.
How long will your delivery date be?
A: our delivery date is one month.30 days
H36 linear guide way cnc turning machine products can be customized?
A: of course, if our product can't meet your need, tell us the model and send us the drawing, recommend suitable products to you, we can also design and produce the machine meet your requirements.
How can I contact you?
Through cell phone number and QQ, there is also email contact.
