vmc850 High quality factory price 5-axis cnc machining center
vmc850 High quality factory price 5-axis cnc machining center is composed of mechanical equipment and numerical control system. Is an automated machine that is suitable for efficient machining of complex parts. CNC machining center is the world's highest yield, the most widely used one of the CNC machine tools. Its comprehensive processing capacity is strong, the workpiece can be completed after a single processing content, processing accuracy is higher, the middle of the difficulty of the bulk of the workpiece, the efficiency of ordinary equipment is 5 to 10 times, in particular, it can be completed Many ordinary equipment can not be completed processing, the shape of the more complex, high precision single-piece processing or small and medium-sized multi-species production is more applicable.
Specification of vmc850 High quality factory price 5-axis cnc machining center
| Details | Unit | VMC850 |
| Size | mm | 1050×500 |
| Travel of 3 axis(X/Y/Z) | mm | 800/500/600 |
| Max, table load | kg | 600 |
| Size | mm | 5-18×90 |
| Spindle taper | BT40 | |
| Distance from Spindle center to Colum guide | mm | 550 |
| Distance of spindle head to table | mm | 105-655 |
| Max speed | rpm | 8000 |
| Motor power | KW | 7.5/11 |
| Positioning accuracy(X/Y/Z) | mm | ±0.008/±0.006/±0.006 |
| Repeatability(X/Y/Z) | mm | ±0.004/±0.004/±0.004 |
| Power of X/Y/Z | Kw | 2.0/2.0/2.0 |
| Tool changer type | / | 16 toolsfunnel type tool changer |
| Max. tool length | mm | 300 |
| Max. Tool diameter | mm | Φ80(adjacent tool)/φ150(not adjacent tool) |
| Max.tool weight | kg | 8 |
| Tool changing time(tool-to-tool) | sec | 8 |
| Ball screwpitch diameter | mm | 10 |
| torque of X/Y/Z | N.m | 15 |
| Rapid feed of X/Y/Z | m/min | 24/24/24(for linear guide way) |
| Cutting feed of X/Y/Z | m/min | 10 |
| Weight | Kg | 5700 |
| weight of frame machine | kg | 4700 |
| Dimension | mm | 2700*2250*2700 |
| Power | V | 3 phase 380V, |
Standard Configuration of vmc850 High quality factory price 5-axis cnc machining center
| Standard Configuration: |
| 1. High strength resin sand casting |
| 2. 3 axis Taiwan hiwin Linear guide way |
| 3. Siemens/Fanuc/KND CNC Controller |
| 4. BT40 Taiwan high speed spindle unit 8000rpm from Taiwan |
| 5. Separate the hand wheel |
| 6. Pneumatic broach system |
| 7. Full guard |
| 8. Automatic intermittent lubrication |
Workpiece Sample :
Feature of vmc850 High quality factory price 5-axis cnc machining center
1. Auto Tool Changer :Our ATC all come from Taiwan famous brand;Hat ATC Brand is HDW(Taiwan hand wheel), Disc type brand is OKADA.
2. CNC controller system: You can choose the cnc system brand: KND,GSK,SYNTEC, SIEMENS, FANUC
3.Modular panel and electronic controller system ensure the system with high reliability.
4.Ball screw pre-tightening and protection: Both of the ball screw adopt imported bearing and lock nut,that could ensure the feeder precision. The bumper block at the end of the ball screw could protect the machine parts when have impact.

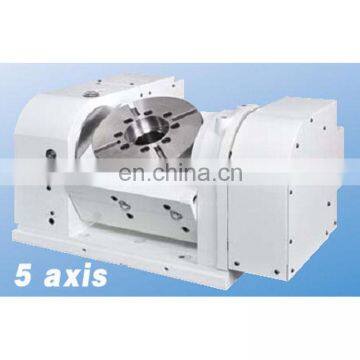

5.4 Axis and 5 Axis support : if you have special request for the 4 axis or 5 axis, we also could supply as your request.
Hot selling product:
Why choose our vmc850 High quality factory price 5-axis cnc machining center?
1.Strong strength,The company has 20 years of production experience, rich product range to meet the needs of different customers.
2.Quality product ,Workshop workers skilled and rigorous testing of product quality, strict control of each production process.
3.Direct factory price,provide competitive factory price and save your costs.
4.7×24 hours after-sale service,Any questions, please contact us directly at any time
5.Strong packing,will protect the goods from any possible damage during transit.
6.TRADE ASSURANCE,protect your orders from payment to delivery.
20 years' production experience
The main product of Taian Luyoung Machinery Co.,Ltd is CNC lathe machine, CNC milling machine, CNC machine centers,CNC swiss type automatic lathe. Annual output is 900sets/ year.
1.More than 20 years of production experience.
2.Exported more than 40 countries.
3.More than 300 staffs in factory.
4.CE and ISO9001 certification .
5.7×24 hours online service.
The products have exported more than 40 countries around the world, please look who choose us:
Customer feedback:
7×24 hours after-sale service
1. Warranty for one year.
2.Supply 7×24 hours online technology support.
3.Professional solution one by one.
4.Free training for customers online or in our factory.
5.The oversea service is available.
Strong packing will protect the goods from any possible damage during transit
Packaging information for vmc850 High quality factory price 5-axis cnc machining center
| Packaging material | Non-fumigation plywood crate |
| Base plate | Steel |
| Packaing size of CK0640(mm) | 2750×2200×2250 |
| packaging feature |
1.Non-fumigation packaging, we use seaworthy plywood. 2. Steel base plate, it is stronger 3-5 times than normal plywood base plate. 3.Water-proof and damp proof, water resistant film wraped all the machine. 4.Fully sheathed case,prevention of collision and keep the goods intact. |
1.Does the vmc850 High quality factory price 5-axis cnc machining center can be customized ?
| Of course, if our standard configuration can not meet your needs, please tell us that we redesign and produce the machine to meet your needs. |
2.How long is the warranty period of the cnc lathe machine?
| Warranty period is one year, if parts damage within one year, we will send free of charge. Free online training or factory training to ensure that you can use our products properly. We can offer overseas paid installation, commissioning service. |
3.What time is your work time?
| We work online 24 hours a day, offer quotes and technical support at any time. |
4.Do you use the Trade Assurance on Alibaba?
| Yes, all of the order use this.Can guarantee the quality of the product and your payment. |
5.How to get a quote?
| Please tell us the model you need or send us drawings of the workpiece, then we can recommend the most suitable products to you. We will give you the best offer within 24 hours. |
|
How to contact us? My mobile/whatsapp: +86 18660853235; QQ:3494630853
|
