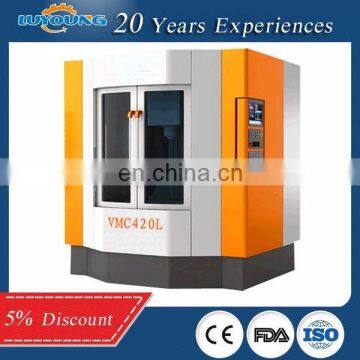

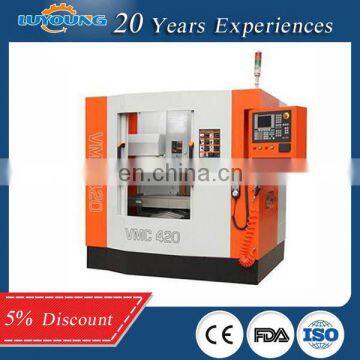

Low Cost Small CNC Milling Machine for Sale High Speed VMC420
Our advantage:
- 20 years experiences in cnc lathe machine reserach and production.
- Mechanical precision of our cnc lathe machine meet or exceed international standards
- High reliability ,long lifetime to 10 years
- Friendly factory price
- One year warranty for whole machine,GSK CNC System is 3 years
- Professional engineer team to help you choose the suitable model and configuration.
- 7X24 hours telephone or online technology support for free.

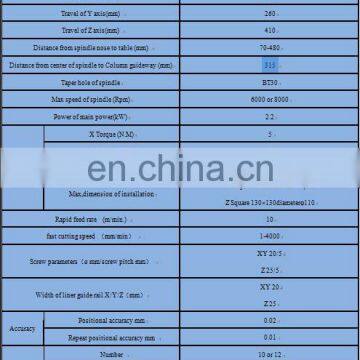

Specification:
Item | VMC420L(XH7124) | |||
Table size (mm) | 800×260 | |||
T-Slot Q-W(mm)–Distance(mm) | 5-16-50 | |||
Max,load (kg) | 150 | |||
Travel of X axis(mm) | 410 | |||
Travel of Y axis(mm) | 260 | |||
Travel of Z axis(mm) | 410 | |||
Distance from spindle nose to table (mm) | 70-480 | |||
Distance from center of spindle to Column guideway (mm) | 315 | |||
Taper hole of spindle | BT30 | |||
Max speed of spindle (Rpm) | 6000 or 8000 | |||
Power of main power(kW) | 2.2 | |||
Motor of feeding | X Torque (N.M) | 5 | ||
X Torque(N.M) | 5 | |||
X Torque(N.M) | 6 | |||
Max,dimension of installation | XY Square 110×11diameter φ95 | |||
Rapid feed rate (m/min.) | 10 | |||
fast cutting speed (mm/min) | 1-4000 | |||
Screw parameters(ø mm/screw pitch mm) | XY 20/5 | |||
Width of liner guide rail X/Y/Z(mm) | XY 20 | |||
Accuracy | Positional accuracy mm | 0.02 | ||
Repeat positional accuracy mm | 0.01 | |||

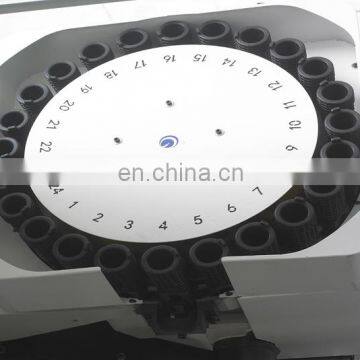

Tools | Number | 10 or 12 | ||
/ |
| |||
Time of tool changing |
| 8 | ||
Operation pressure Mpa | 0.6 | |||
Weight kg |
1700 | |||
Dimension | 1900×1400×2100mm | |||
Standard Configuration:
- 1. High strength resin sand casting
- 2. Three axis line rail in Taiwan
- 3. KND 200M CNC Controller Optional (GSK,Siemens,Fanuc)
- 4. BT30Taiwan high speed spindle unit 8000rpm
- 5. Separate the handwheel
- 6. Pneumatic broach system
- 7. Full guard
- 8. Automatic intermittent lubrication
|
|
|
|
|
| |
We have 20 years experiences in cnc machine export.
- According the weight of our machine,we desgin defferent package to insure the transportation safety.
- We choose famous and well-established express company to arrange the shipping,they are professional and have the ability to confirm every process work well.
-
Any other question,pls kindly contact with us!
