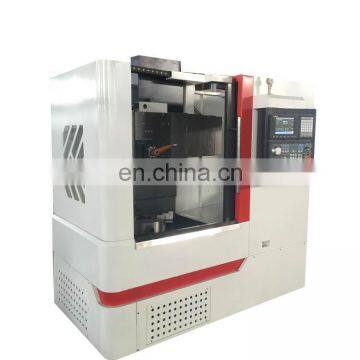

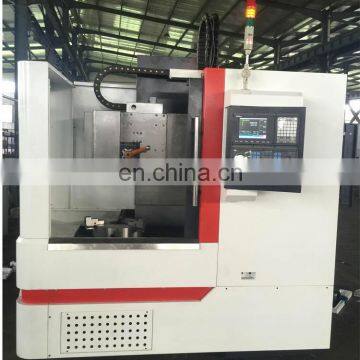

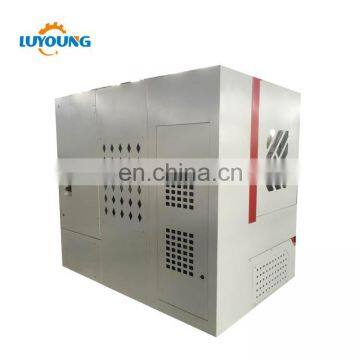

CK680 High quality vertical cnc lathe machine with live tool price
| Ck680 | parameter |
| Maximum slewing diameter of workpiece | 680mm |
| Hydraulic chuck diameter | 500mm |
| Spindle speed | 50-300rpm 300-1500rpm |
| Cutting feed speed | 0.1-1000mm/min |
| The knife-edge moves at a vertical distance | 550mm |
| The knife holder horizontal movement distance | 420mm |
| The X-axis moves fast | 8000mm/min |
| The z-axis moves fast | 5000mm/min |
| Tool post form | Electric tool post |
| Tool rod cross section | 32×32mm |
| Main motor power, torque | 7.5/11kW/143.3NM |
| Feed motor power, torque | 2.4 kW /15NM |
| Cooling pump motor power, flow | 0.9 kW /40L/min |
| Positioning accuracy of machine tool | X:0.015mm Z:0.02mm |
| Repeat positioning accuracy of machine tool | X:0.012mm Z:0.012mm |
| Machine weight | 6000kg |
| Machine dimensions | 2250×1960×2650mm |
CK680 High quality vertical cnc lathe machine with live tool price Nc vertical lathe is suitable for machining large diameter shaft and plate parts inside and outside the cylinder, conical surface, circular arc surface, end, grooving, all sorts of thread, boring, reaming, chamfering process of machining, such as the machine applicability is wide and high efficiency, good stability and precision of parts size uniformity is good, easy to operate, can satisfy the high precision of the single or batch products processing requirements, particularly suitable for automotive brake hub, wheel hub, clutch pressure plate, flywheel shell and other parts processing.
1. CK680 High quality vertical cnc lathe machine with live tool price Casting is made of resin sand technology. It has a beautiful appearance and small deformation. All castings are treated with a secondary aging process and the heat deformation is small.
2. Whole bed foot, casting water tank, fully enclosed sheet metal, waterproof performance is much better than similar products
3. Double audio quenching is used in bed guide rail, with high precision retention
4. The z axis screw is installed in the middle of the bed (i.e
5. The three supporting four bearing the high rigidity of spindle system, absolute temperature rise of less than 25 ° especially for plate parts processing
6. The machine tool is not worthy of the tail
7. Adopt the larger and heavier slabs and the towing plate, which is more rigid and better, and the cutting is more stable and powerful.
Luyang CNC machinery company has 20 years of production lathe experience, main CNC lathe, CNC milling machine, processing center, Swiss CNC lathe high-tech enterprise.The company has a professional production and development team and favorable after-sales technical team support.The company takes the strength to make the product, the service wins the customer, the customer as the basic management concept.Our company has gained a good reputation both at home and abroad by providing customers with cost-effective CNC machine tools and excellent timely sales advice and after-sales service.Development, innovation, people-oriented, is the direction my company has been working on.
1.Port: Qingdao port or Shanghai port
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.
1. Our customers come from more than 40 different countries and promote the most suitable products for different countries to provide the best service;
2. we participated in many exhibitions, the Chinese machinery exhibition, guangzhou commodities fair, through the exhibition to expand overseas market, we invite customers to visit our factory, also can be customized according to customer demand, through our products and services for customers
1. We have excellent technology, have a professional r&d team and quality control system, manufacture and sell the most reliable and reliable technical products, and strictly control each product.Make sure the products are 100% qualified, and can be customized according to your requirements.
2 we have a solid strength, committed to the development achievements of numerical control equipment customers, innovation, honest business philosophy, through the international quality certification standards, products many times get the patent certificate.
3. We have reliable quality, strict control of quality control, high quality products and high efficiency services. We have received the approval of customers, and our price is excellent.
4 have perfect service, equipped with professional service team, perfect after-sales service team, quickly solve the problem for you.
How long is your warranty period?
A: our warranty period is one year, and we will maintain the product free of charge during the warranty period.Use our machines to supply standard parts and accessories during shipment.In the correct operation, if there are any damaged parts or accessories, we will replace them immediately by airmail or express mail.
What kind of packing do you have?
Answer: we use a plywood cases, to ensure the packing quality durable, fully protect the safety of the goods in the cabinet, appearance is bright and clean, smooth and beautiful, durable, has low cost, big load, afraid of sun rain no moth, etc.
How long will your delivery date be?
A: our delivery date is one month.30 days
CK680 High quality vertical cnc lathe machine with live tool price products can be customized?
A: of course, if our product can't meet your need, tell us the model and send us the drawing, recommend suitable products to you, we can also design and produce the machine meet your requirements.
How can I contact you?
Through cell phone number and QQ, there is also email contact.
