CK6136A automatic cnc metal machine precision machining cnc turning
- 1000 Set / Sets per Month
- T/T Credit Card
- CK6140A china metal tool posts electric lathe machine price cnc lathe
- CK6150A production cnc cutting horizontal machine lathe equipment
- CK6130 horizontal automatic cnc machine working small metal lathe
- CK6432 china small automatic chuck cnc lathe machine horizontal lathe
- CK6160 cnc turning machine working high speed cnc lathe machine
- CK 0640 cnc lathe machine mini china hot selling with bar feeder
Product Details
Brand Name: | Luyoung | Place of Origin: | Shandong, China | Model Number: | CK6136A |
Condition: | New |
Product Description
CK6136A automatic cnc metal machine precision machining cnc turning
Item | CK6136A-1 |
Max. swing dia. over bed | 360mm |
Max. swing dia. over cross slide | 190mm |
Processing length | 500mm |
Dia. of spindle | 60mm |
Through hole dia. of drawing pipe | |
Spindle speed | 150-2500rpm |
Taper of spindle bore | MT6 |
Tool holder | 4 station |
Tool bar section | 20x20 |
Main motor power | 4KW |
X/Z axis torque | 4/6N.M |
X/Z axis fast feeding speed | 6/8 M/MIN |
Tailstock sleeve travel | 120mm |
Tailstock taper | MT4 |
Dimension | 1850*1400*1700mm |
Net weight | 1500KG |

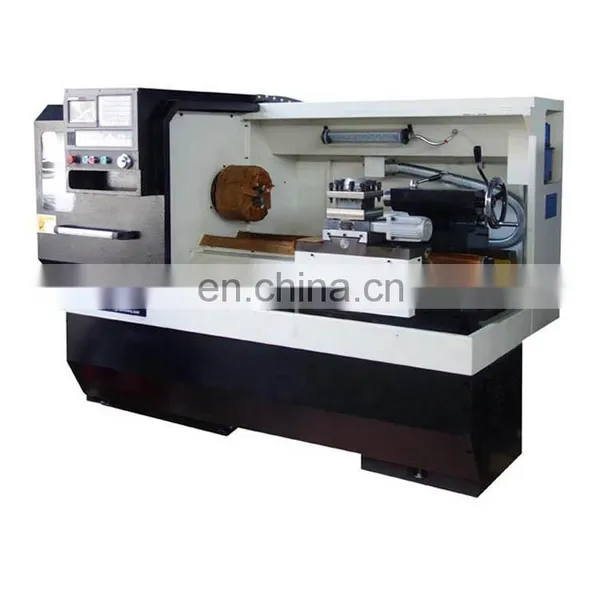

CK6136A automatic cnc metal machine precision machining cnc turning is a high precision and efficient automatic machine tool.Equipped with multi-station dao tower or power tower, the machine has a wide range of process performance, machinable straight cylindrical, slash cylinder, circular arc and a variety of thread, groove, worm and other complex artifacts, compensated by linear interpolation, arc interpolation function, and in the mass production of complex parts in good economic effect.
1. High precision of machine tool, high precision double ball bearing support, low noise, high precision and good stability.
2.CK6136A automatic cnc metal machine precision machining cnc turning can be used to peel various rotating surfaces such as cylindrical surface, tapered surface, special surface, etc., and can be used for cutting grooves, threading, boring, hinge processing, high efficiency and strong applicability.
3. The bed guide rail is refined by ultrasonic quenching, high hardness and good rigidity.
4. The ball screw is used in the whole inner loop wire rod, with the diagonal contact ball bearing support and pretension.The guide rail and screw are used for automatic lubrication, which has the characteristics of flexible movement, reducing heat deformation and stability.
5. The electric four-position tool holder is positioned with precise tooth disk, and the positioning accuracy is high.

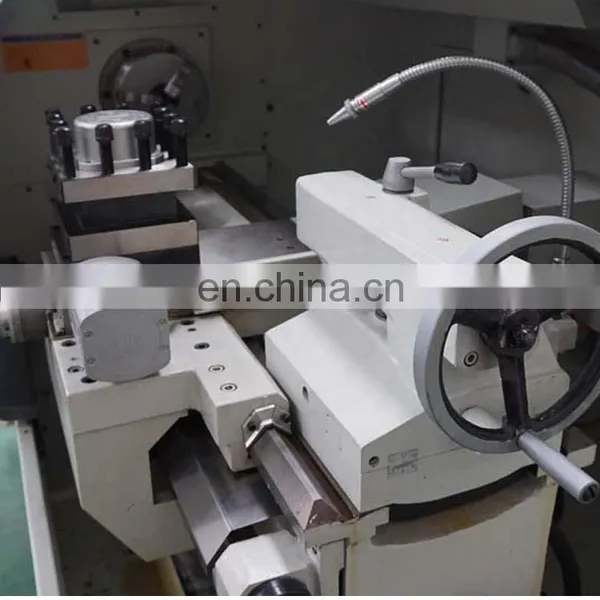

6. The tail frame has fast CAM clamping device, and the work efficiency is high.The tail seat sleeve has the device to prevent the drill bit rotation, avoiding the taper of the hole of the socket sleeve caused by the rotation of the drill caused by the wrong operation, and the tail part is protected effectively.
7. The CNC system adopts famous products, which can be used to drive or ac servo motor driven by hybrid stepper, and other systems can be selected according to users' requirements.
8. Easy to operate, especially suitable for complex parts or machining of high-precision mass parts. It is also the first choice for numerical control teaching.
Shandong Lu Young Machinery Co., Ltd is a modern and high- tech company which is a professional manufacturer of CNC LATHE, CNC MILLING, CNC MACHINE CENTER . With 50000sqm workshops and offices, we have more than 20 years experiences in cnc machine research and production.Our products all pass CE Certification,and our factory pass ISO9001Quality Certification.Our machines have been exported more than 40 countries and have been well received by our customers.we welcome all customers and friends come to visitour factory! Regarding the technical force, we have the most professional research and development staff, who can meet all different requirements on.
We have 20 years of accumulated experience in CNC lathe and CNC milling machine,so our products has been exported more than 40 countries. We have professional engineers who are responsible for every product we export. Because of our high degree of professionalism , good quality, factory price and the best service,more and more customers choose us, so our export volume of products increased by 20 percent compared with last year.
The packaging and shipping of CK6136A automatic cnc metal machine precision machining cnc turning:
On the mechanical packaging, we use the fumigation-free plywood.Fumigation-free wooden keel support bar is adopted by the export of LVL material, wood is made from multi-layer plywood custom-made, multi-layer plywood and LVL material are after high temperature sterilization and glue them into a wooden . The wooden box itself does not have any log, so it does not need to be fumigated to be exported directly.The goods are well packed in good condition and can prevent the breakage and leakage of the contents during the shipping process.We will adopt Marine transportation to prevent the turbulence and vibration of the transportation process from causing damage to the goods and ensure that the goods are safe and sound when delivered.
Our company has exported all kinds of mechanical products to more than 40 countries.We provide suitable products for different countries and provide the best and most thoughtful service for our customers.
We attended a lot of mechanical trade fair, in the fair, we talk about products with customers, and invite customers to visit our production workshop, understanding of mechanical manufacturing process, thus expanding the overseas market. If customers have special product requirements, we can also customize them according to customer needs.
1. What’s the term of payment ?
As usual, Our term of payment is:
30% downpayment by T/T (Telegraphic transfer ) in advance.
70% by T/T before shipment.
Besides, We can also accept term of payment by irrevocable letter of credit at sight. D/P or D/A.
2. What’s the quality warranty ?
We will supply standard parts and accessories with our machines when shipment. Within one year after receiving our machines, In the right operation, If there are any damaged parts or accessories, We will replace them by air-mail or express mail immediately free of charge.
3. What’s the delivery time ?
We will supply goods to you within 1 months after getting your 30% downpayment by T/T according to the different products.
4. What’s the charge of installing and commissioning ?
For some machines, It need our technician to go to your local site and help you install and commission machines. At the same time, Our technician will train your workers. It will take 7-15 days for different machines. The return air-tickets, accommodation, food, salary ( USD60.00/day for every technician ),etc will be born by the end-user.
