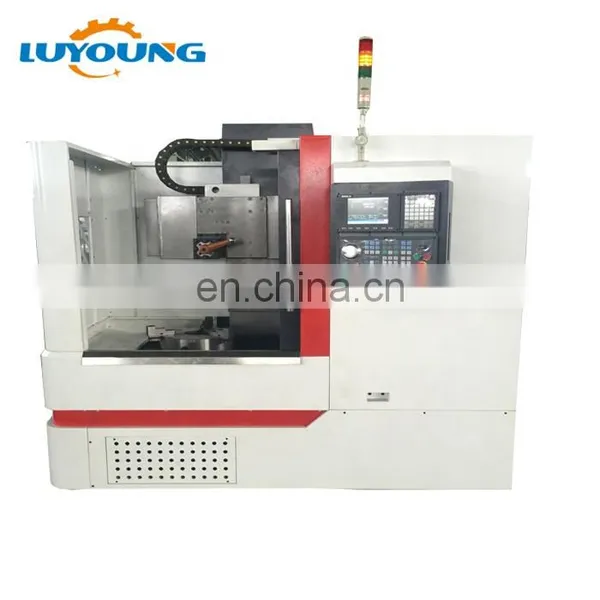

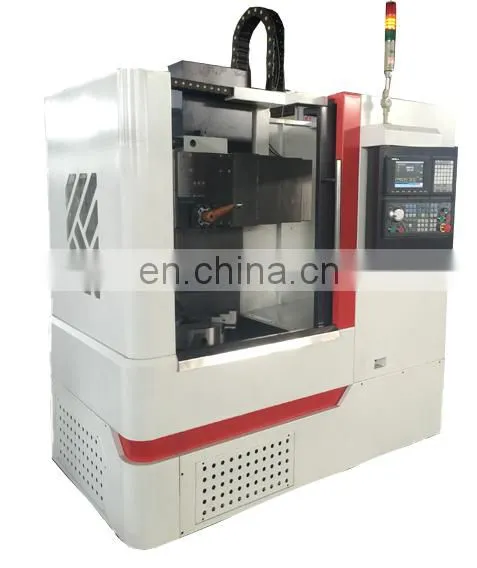

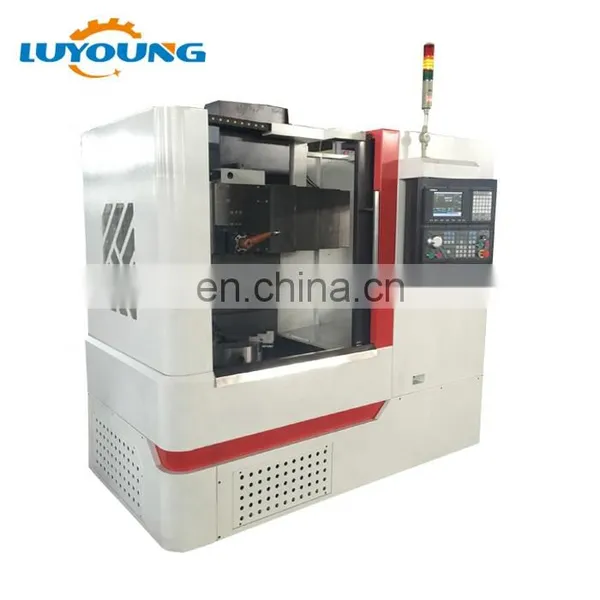

ck680 high quality 2 axis metal cnc vertical turning lathe machine
| ck680 high quality 2 axis metal cnc vertical turning lathe machine can be processed workpiece diameter and weight is relatively large, or the processing of the workpiece is difficult to install in the horizontal lathe. Its spindle axis is perpendicular to the horizontal plane, the workpiece is mounted on the horizontal rotary table, the main movement of the rotation by the table, by the vertical knife and side knife to achieve feed movement. Compared with the horizontal lathe, the workpiece in the horizontal lathe folder on the folder inside the clip. The vertical axis of the vertical axis of the lathe layout, table table in a horizontal plane, so the workpiece clamp and find more convenient. This layout reduces the load on the spindle and the bearing, so the vertical lathe can maintain long working accuracy. |
Specification of ck680 high quality 2 axis metal cnc vertical turning lathe machine
| No | Item | Specification |
| 1 | Max. swing dia. over bed | 680mm |
| 2 | Max.dia of workpiece | 650mm |

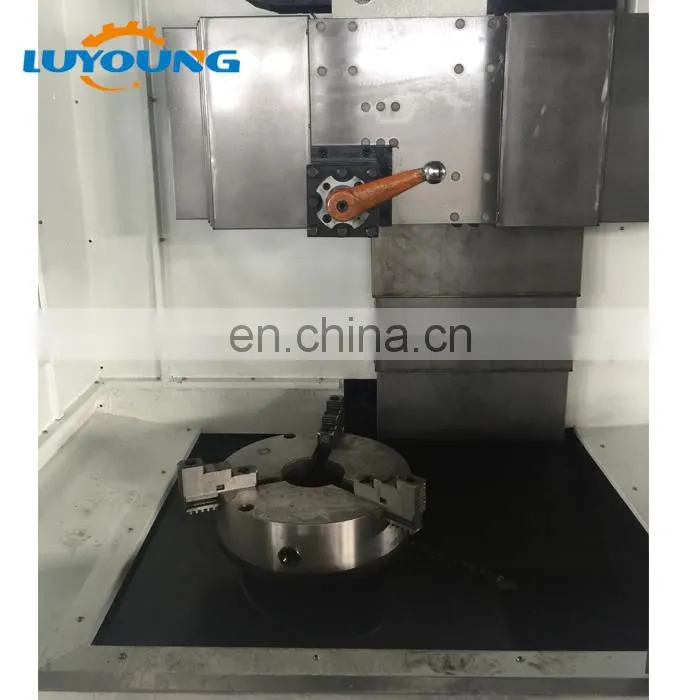

| 3 | Dia of hydraulic chuck | 500mm |
| 4 | Spindle speed | 50-1000rpm |
| 5 | Cutting feed speed | 0.1-1000mm/min |
| 6 | Vertical travel of tool holder | 550mm |
| 7 | Horizontal travel of tool holder | 420mm |
| 8 | X axis rapid moving speed | 8000mm/min |
| 9 | z axis rapid moving speed | 5000mm/min |
| 10 | Tool holder type | electric tool holder |
| 11 | Tool bar section | 32×32mm(electric tool holder) |
| 12 | Main motor power | 7.5/11kW |
| (Low speed high torque output, double base speed) | ||
| 13 | Feed motor power /torque | 2.4 kW /15NM |
| 14 | Cooling pump Motor power/flow | 0.9 kW / 40L/min |
| 15 | X/Z positionaI accuracy | X:0.015mm Z:0.02mm |
| 16 | X/Z repeatability | X:0.012mm Z:0.012mm |
| 17 | Weight | ≈5800kg |
| 18 | Dimension | 2250×1960×2650mm |
| 19 | standard configuration |

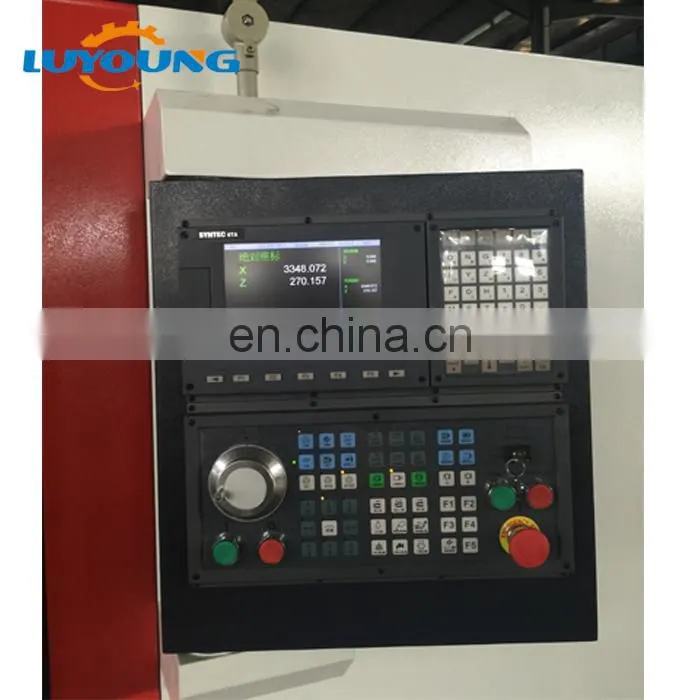

SYNTEC 6TA controller system; A2-8 spindle units; HIWIN screw,NSK bearing; Mobile hand-wave pulse generator; Alarm lamp |
|

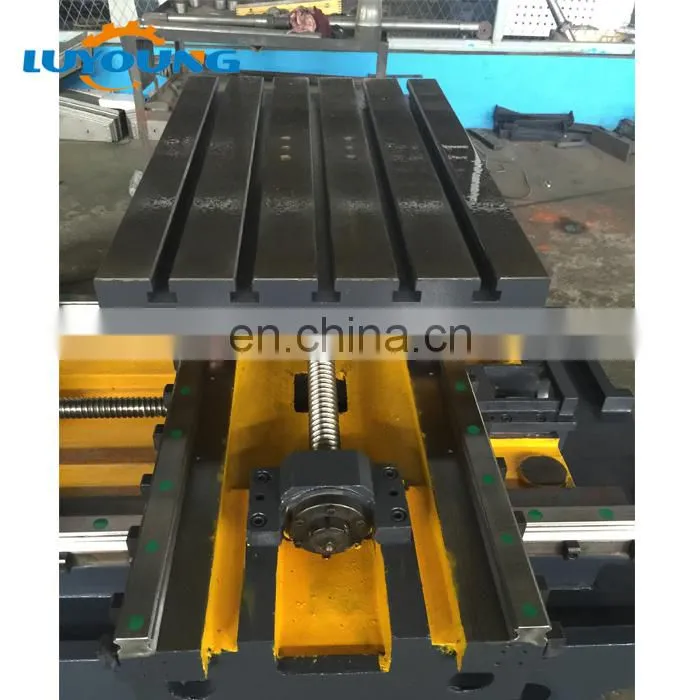

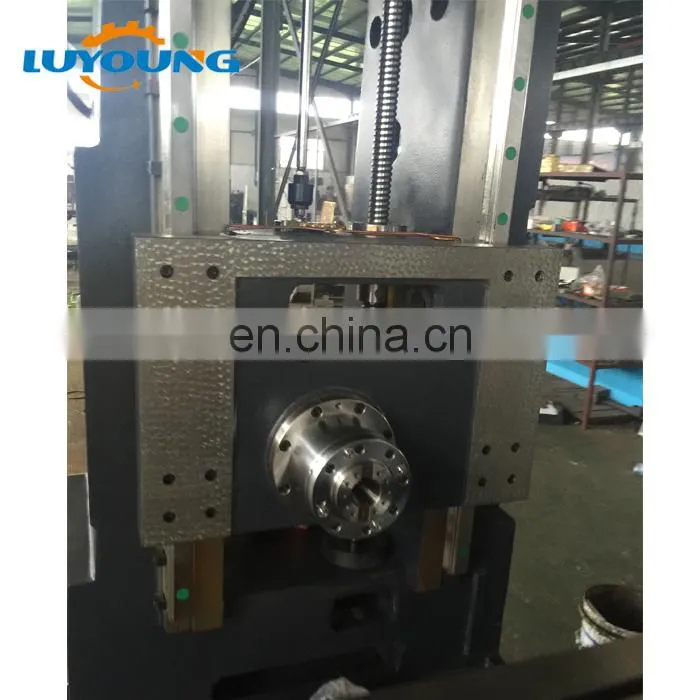

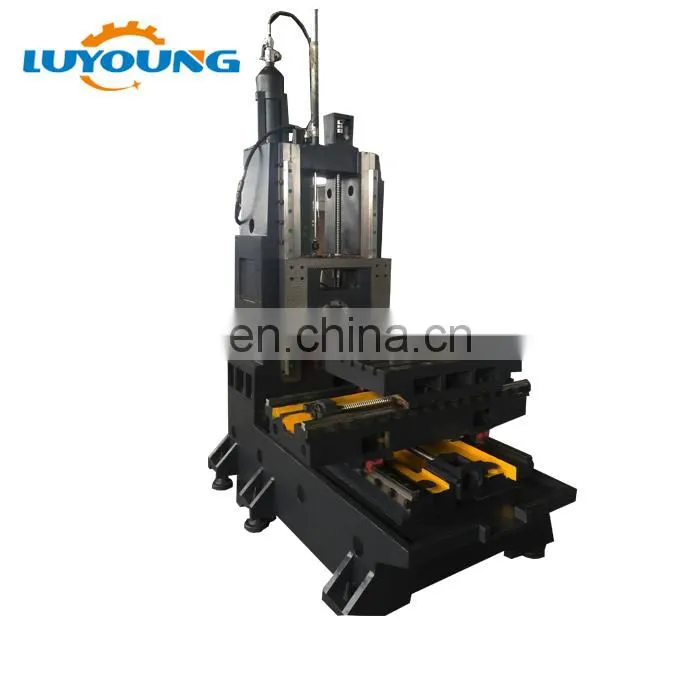

The feature of ck680 high quality 2 axis metal cnc vertical turning lathe machine 1.Long-term stability,the machine is a single column vertical rail structure, column, base and slide are used high grade gray cast iron resin sand casting process, and by aging treatment; with the rail surface with ultrasonic sound quenching and paste processing; reasonable structural design, Improve the processing and assembly process, to ensure long-term use of the stability of the machine and the accuracy of maintaining. |
Why choose our ck680 high quality 2 axis metal cnc vertical turning lathe machine?
1.Strong strength,The company has 20 years of production experience, rich product range to meet the needs of different customers.
2.Quality product ,Workshop workers skilled and rigorous testing of product quality, strict control of each production process.
3.Direct factory price,provide competitive factory price and save your costs.
4.7×24 hours after-sale service,Any questions, please contact us directly at any time
5.Strong packing,will protect the goods from any possible damage during transit.
6.TRADE ASSURANCE,protect your orders from payment to delivery.
20 years' production experience
The main product of Taian Luyoung Machinery Co.,Ltd is CNC lathe machine, CNC milling machine, CNC machine centers,CNC swiss type automatic lathe. Annual output is 900sets/ year.
1.More than 20 years of production experience.
2.Exported more than 40 countries.
3.More than 300 staffs in factory.
4.CE and ISO9001 certification .
5.7×24 hours online service.
The products have exported more than 40 countries around the world, please look who choose us:
7×24 hours after-sale service
1. Warranty for one year.
2.Supply 7×24 hours online technology support.
3.Professional solution one by one.
4.Free training for customers online or in our factory.
5.The oversea service is available.
Strong packing will protect the goods from any possible damage during transit
1.Port: Qingdao port or Shanghai port
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.
1.Does the ck680 high quality 2 axis metal cnc vertical turning lathe machine can be customized?
| Of course, if our standard configuration can not meet your needs, please tell us that we redesign and produce the machine to meet your needs. |
2.How long is the warranty period of the cnc lathe machine?
| Warranty period is one year, if parts damage within one year, we will send free of charge. Free online training or factory training to ensure that you can use our products properly. We can offer overseas paid installation, commissioning service. |
3.What time is your work time?
| We work online 24 hours a day, offer quotes and technical support at any time. |
4.Do you use the Trade Assurance on Alibaba?
| Yes, all of the order use this.Can guarantee the quality of the product and your payment. |
5.How to get a quote?
| Please tell us the model you need or send us drawings of the workpiece, then we can recommend the most suitable products to you. We will give you the best offer within 24 hours. |
6.How to contact with you?
|
My mobile/whatsapp: +86 18660853235; QQ:3494630853
|
