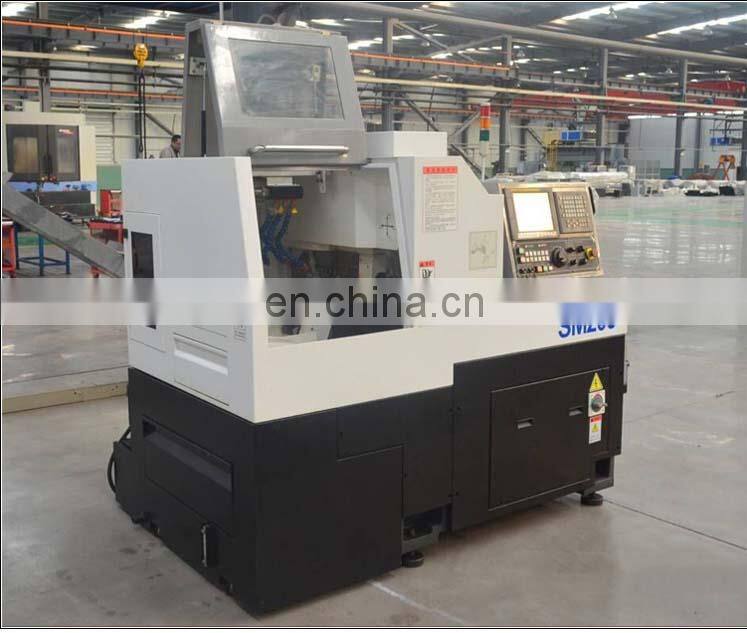

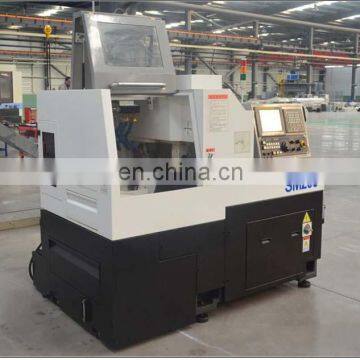

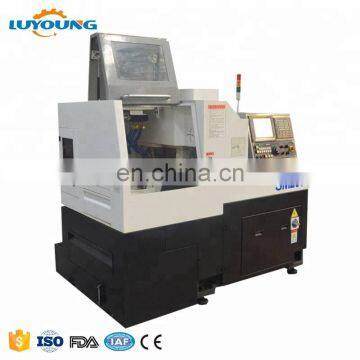

SM203 China flat bed cnc swiss machine with high quality
| Description | Unit | Specifications | ||
| Processing capacity | Max maching diameter | mm | 20 | |
| Stroke | mm | 260 | ||
| Max. Turning Diameter | mm | 20 | ||
| Main Spindle RPM | rpm | 8000 | ||
| Sub Spindle RPM | rpm | 8000 | ||
| Cross Driven Tools | rpm | 5000 | ||
| Back Work Tools | rpm | 5000 | ||
| C axis Additional Positive Brake | degree | 1/1000(0.001) | ||
| Max. Turning Diameter | mm | 20 | ||
| Traverse Rate | Stroke | X1 axis | mm | 60 |
| Y axis | mm | 342.5 | ||
| Z1 axis | mm | 260 | ||
| X2 axis | mm | 355 | ||
| Z2 axis | mm | 220 | ||
| Rapid Traverse Rate | X1 axis | m/min | 24 | |
| Y/Z1/X2/Z2 axis | m/min | 32 | ||
| Number of tools | O.D Tools | ea | 6 | |
| Front Work Tools | ea | 5 | ||
| Cross Living Tools | ea | |||
| Back Work Tools | ea | 3(Rotation)+1(fixed) | ||
| O.D Tools specification | mm | 12×12 | ||
| Front Work Tools diameter | mm | (Standard)25 | ||
| Power Tool Chuck Specifications | mm | ER16 | ||
| Spindle motor | kw | 4.4 | ||
| Sub Spindle motor | kw | 2.9 | ||
| Motors | Servo axis motor | kw | 0.75 | |
| Cross Driven Tools motor | kw | 0.75/2.5kw | ||
| Back Work Tools motor | kw | 1 | ||
| Lubrication pump motor | w | 5 | ||
| Coolant motor | kw | 0.4(pressure 0.5bar) | ||
| Coolant tank capacity | L | 180 | ||
| Lubrication tank capacity | L | 1.8 | ||
| Height from floor tospindle center | mm | 1000 | ||
| Dimension | mm | 2560×1510×1660 | ||
| Cross Weight | KG | 3600 | ||
SM203 China flat bed cnc swiss machine with high quality ture is the workpiece after a clamping can be achieved complete processing, reducing the number of equipment required, but also improve the production efficiency. After cutting off the parts, the sub-spindle grips the part and completes the machining on the back, such as drilling, boring and milling on the back. The machine is also equipped with automatic feeder, the feeder part can be installed short feeder and long feeder. Can be achieved continuous feeding of materials under the continuous processing. The equipment is most suitable for aerospace, aerospace, military, automotive, communications, optics, medical equipment and other high-precision, work complex slender

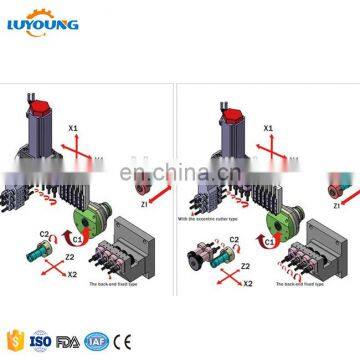

1. SM203 High quality 3 axis swiss type cnc lathe machine Arrangement of tooling:13 fixed tools and 9 live tools among 22 tools can handle complex processing.
2.Fanuc system: Stability self diagnostician(chucking,ejector, oil cooling,cut, tool breakdown).

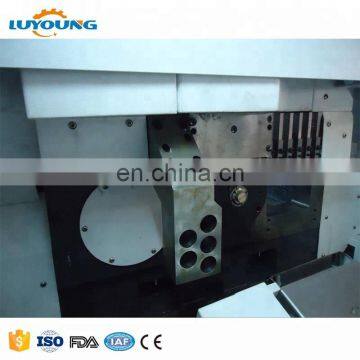

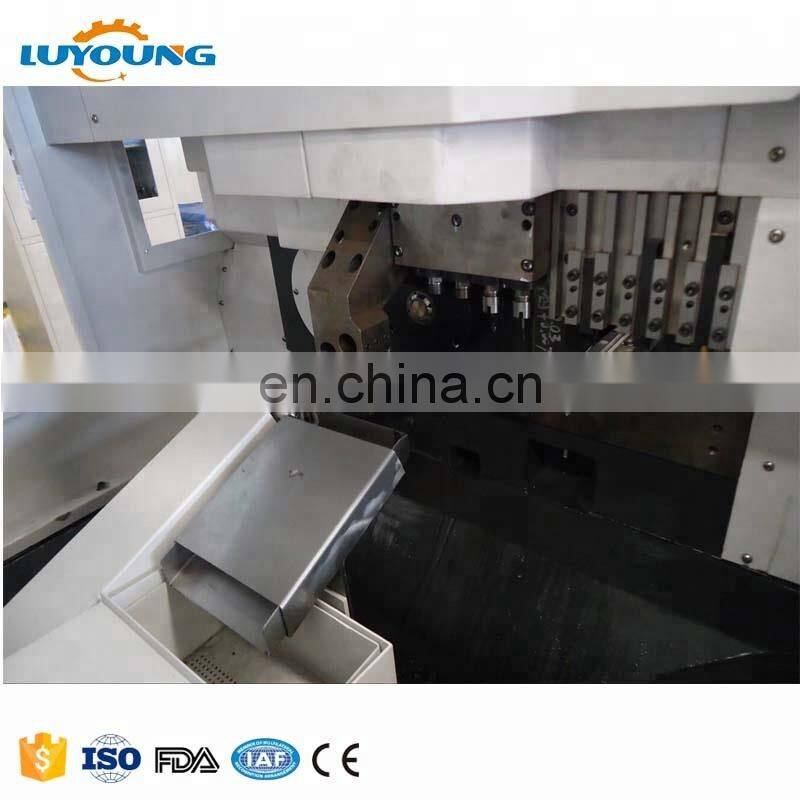

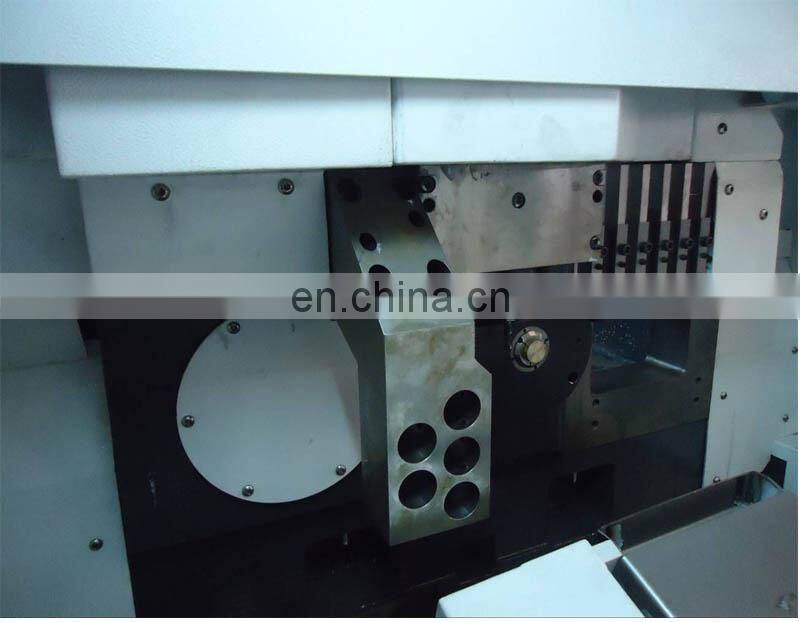

3.Front end tool:5 fixed tools in front end tool, 4 live tools in cross drill,6 fixed tools in bite tool.
4.Back-end fixed tool:1 fixed tool and 3 live tools.
5. Toggle system: Lt is possible to maintain continuous process without toggle’s damage.
6.Off-center tool:1 fixed tool and 2 live tools,finished parts by our machine toolsSwiss lathe machinable stainless steel, titanium alloy, brass, aluminum alloy, platinum and iridium alloy. It is suitable for high-processing of complex parts such as aviation, aerospace, military, automobile, motorcycle,communication, refrigeration, optics, home appliances, electronics, watches, toys, medical and other industries.
The main product of Taian Luyoung Machinery Co.,Ltd is CNC lathe machine, CNC milling machine, CNC machine centers,CNC swiss type automatic lathe. Annual output is 900sets/ year.
1.More than 20 years of production experience.
2.Exported more than 40 countries.
3.More than 300 staffs in factory.
4.CE and ISO9001 certification .
5.7×24 hours online service.
1. We use the special plywood box for export, and our products are shipped by sea.
2. We can guarantee the quality of the goods, while also reducing the loss, with environmental protection, good resistance and good barrier
1. Our customers come from more than 40 different countries and promote the most suitable products for different countries to provide the best service;
2 we participated in many exhibitions, the Chinese machinery exhibition, guangzhou commodities fair, through the exhibition to expand overseas market, we invite customers to visit our factory, also can be customized according to customer demand, through our products and services for customers
1.Non-fumigation packaging, we use seaworthy plywood.
2. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
3.Water-proof and damp proof, water resistant film wraped all the machine.
4.Fully sheathed case,prevention of collision and keep the goods intact.
