CK46P cnc horizontal milling machine specification lathe machine
- 1000 Set / Sets per Month
- T/T Credit Card
- ck6140 flat bed precision metal china factory price cnc lathe machine
- CK6136A cnc horizontal cnc metal machine turning cnc lathe
- CK6140A china metal electric lathe machine flat bed lathe
- CK6130 2 axis cnc horizontal lathe automatic turning machine
- SM203 High quality 3 axis swiss type cnc lathe machine
- CK6130 metal cnc cutting machine lathe tools ck6130 cnc lathe
Product Details
Brand Name: | Lu Young | Place of Origin: | Shandong, China | After-sales Service Provided: | Overseas third-party support available |
Condition: | New |
Product Description
CK46Pcnc horizontal milling machine specification lathe machine
Specifications | Units | CK46D-8 |
Max.swing over bed | mm | 450 |
Max. Swing over cross slide | mm | 130 |
Max. Processing length | mm | 450 |
Cross slide length | mm | 780 |
Lathe bed straucture |
| 30° integral inclined lathe |
Distance between cross slide and spindle axis | mm | 80 |
Spindle nose |
| A2-5 |
Spindle (C axis )speed range | R/min | 50-4500 |
Spindle bore | mm | 56mm |
Bar capacity | mm | 45mm |
Spindle (C Axis)motor | kw | 7.5 |

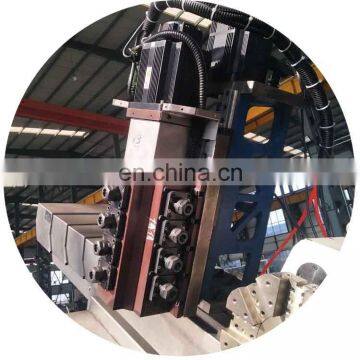

Milling head |
| (side)4 (nose)4 |
Milling head power | kw | 2.3 |
Milling head speed | R/min | 3000 |
Distance of each milling head | mm | 60 |
X axis travel | mm | 500 |
Z axis trave | mm | 450 |
Y axis trave | mm | 240 |
Turret type |
| 8 station hydraulic turret,4+4 milling head |
X rapid traverse | Mm/min | 24000 |
Z rapid traverse | Mm/min | 24000 |
Y rapid traverse | Mm/min | 15000 |
X/Z axis positioning accuracy | mm | 0.006 |
X/Z axis repositioning accuracy | mm | 0.003 |
Spindle (C axis)dividing positioning accuracy | mm | 0.02’’(70 arc-seond) |
Spindle (C axis)dividing repositioning accuracy | mm | 0.006’’(20 arc-seond) |
Machine dimension(LxWxH) | mm | 2500x1800x1800 |
Net weight | Kg | 3000 |
|
|

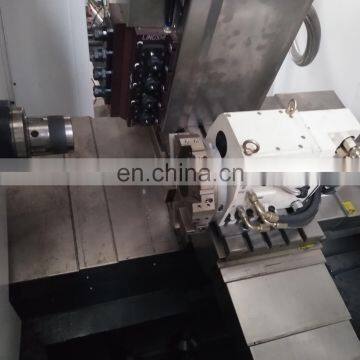

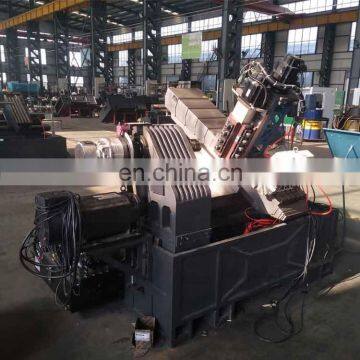

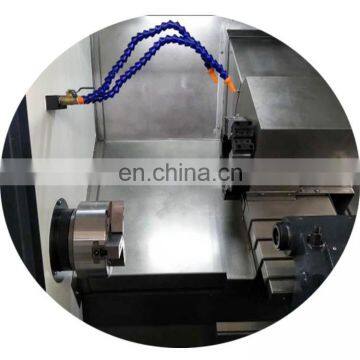

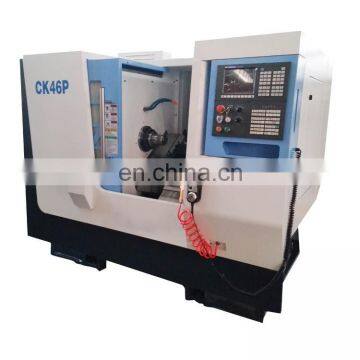

The CK46P cnc horizontal milling machine specification lathe machine product is a semi-closed slant-bed turning and milling machine with X, Y, Z and C axes servo control. The structure and external dimensions are compact and reasonable. The spindle (C axis) is driven by a servo motor. It can realize the turning of the outer circle, the end surface and the thread of various materials, such as shafts and discs, and various surface milling and drilling in radial and axial directions, and is suitable for efficient machining of small parts.
The main product of Taian Luyoung Machinery Co.,Ltd is CNC lathe machine, CNC milling machine, CNC machine centers,CNC swiss type automatic lathe. Annual output is 900sets/ year.
1.More than 20 years of production experience.
2.Exported more than 40 countries.
3.More than 300 staffs in factory.
4.CE and ISO9001 certification .
5.7×24 hours online service.
Why choose our ck0640 cnc lathe ?
1. Factory price.Spend the least money on the best machines.
2.Low failure rate.All the accessories use the famous brands at home and abroad;More than 20 years' experience in this field,strictly control the quality.
3. Supprt oversea service.Our engineer have more exprience for oversea service,supply good service.
4.Export more than 40 countries and receive good feedback from our customer.
5.Trade Assurance.All of the order could placed by Trade Assurance, keep your money safe.
1.Non-fumigation packaging, we use seaworthy plywood.
2. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
3.Water-proof and damp proof, water resistant film wraped all the machine.
4.Fully sheathed case,prevention of collision and keep the goods intact.
1. Our customers come from more than 40 different countries and promote the most suitable products for different countries to provide the best service;
2 we participated in many exhibitions, the Chinese machinery exhibition, guangzhou commodities fair, through the exhibition to expand overseas market, we invite customers to visit our factory, also can be customized according to customer demand, through our products and services for customers
1. Warranty for one year .
2.Supply 7×24 hours online technology support.
3.Professional solution one by one.
4.Free training for customers online or in our factory.
5.The oversea service is available.
How long is your warranty period?
A: our warranty period is one year, and we will maintain the product free of charge during the warranty period.Use our machines to supply standard parts and accessories during shipment.In the correct operation, if there are any damaged parts or accessories, we will replace them immediately by airmail or express mail.
What kind of packing do you have?
Answer: we use a plywood cases, to ensure the packing quality durable, fully protect the safety of the goods in the cabinet, appearance is bright and clean, smooth and beautiful, durable, has low cost, big load, afraid of sun rain no moth, etc.
How long will your delivery date be?
A: our delivery date is one month.30 days
CK46P cnc horizontal milling machine specification lathe machine products can be customized?
A: of course, if our product can't meet your need, tell us the model and send us the drawing, recommend suitable products to you, we can also design and produce the machine meet your requirements.
How can I contact you?
Through cell phone number and QQ, there is also email contact.
