CK20 horizontal china precision mini turning lathe
- 1000 Set / Sets per Month
- T/T Credit Card
- H36 production China cnc metal lathe machines pakistan
- CK680 cnc turning computer numerical control machine tools
- CK6132 china cnc metal electric small lathe cnc machine
- CK6163 Heavy duty cnc lathe machine horizontal for 2 axis
- CK6130 low cost cnc china precision turning lathe machine
- CK6136A production precision machining machine mini cnc lathe
Product Details
Brand Name: | Lu Young | Place of Origin: | Shandong, China | After-sales Service Provided: | Engineers available to service machinery overseas |
Condition: | New |
Product Description

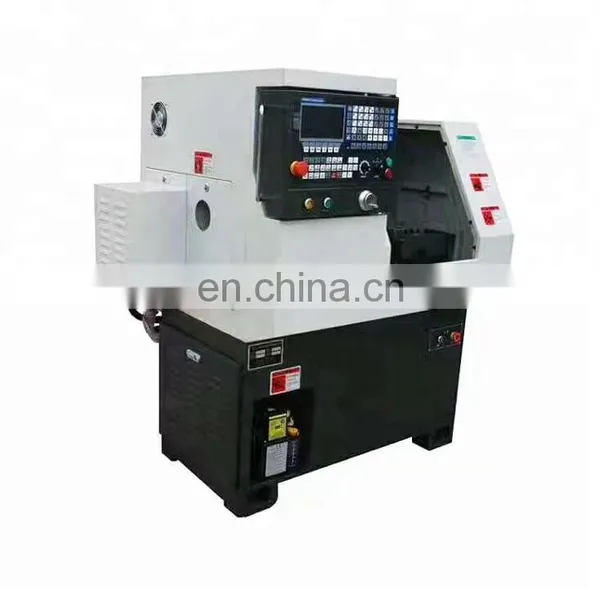

CK20 horizontal china precision mini turning lathe
specification of CK20 horizontal china precision mini turning lathe
Model Name | CK20N |
CNC Controller | HNC808XP |
Max cutting Dia.(mm) | Φ20 |
Max cutting length(mm) | Φ165 |
X axis travel range(mm) | 230 |
Z axis travel range(mm) | 230 |
Spindle hole Dia.(mm) | Φ28 |
Main motor power | 2.2KW |
Max spindle speed | 6000RPM |
X/Z axis servo motor power | 1KW |
Cutting speed | 1-4000mm/min |
Fast feed speed X/Z(m/min) | 15/15 |
Max Tool quantity | 8 pcs |
Tool size(mm) | 12×12 |
Cooling pump power | 0.18KW |
Repositioning Resolution(mm) | 0.003 |
Lubrication pump power | 25W |
Total Power | 5KW |
Size(l×w×h)(mm) | 1430X930X1410 |
weight(kg) | 950 |
Main configuration
Model Name | CK20N |
Cnc Controller | HNC808XP |
Servo motor and driver for x and z axis | HUADA 1KW |
Main servo motor | CTB 2.2KW |
X/Z Linear guideway | Taiwan HIWIN |
X/Z ball screw | Taiwan HIWIN |

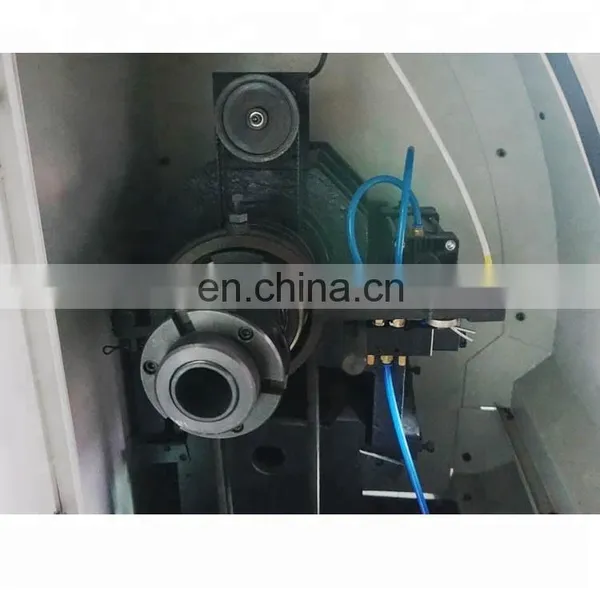

Spindle unit | 6000rpm |
CK20 horizontal china precision mini turning lathe using the GSK controller system to realize the Two - axis Control .The use of FANUC, Siemens, KND and other systems; with less noise, high precision, excellent performance characteristics, the CNC machine tools using mechanical and electrical integration design. Beautiful appearance, reasonable structure, wide range of uses, easy to operate. The machine can be automatically controlled, can automatically process a variety of parts of the first round, end, slot, any cone, spherical, and a variety of British and English cylindrical, tapered thread
Optional configuration:
Application of our cnc lathe machine:
Hot selling flat bed high precision CNC lathe machine for metal
CK0640 mini CNC lathe machine CK6432 small CNC lathe machine |
CK6130 small CNC lathe machine CK6132 small CNC lathe machine |
Why choose our CK20 horizontal china precision mini turning lathe ?
1.Strong strength,The company has 20 years of production experience, rich product range to meet the needs of different customers.
2.Quality product ,Workshop workers skilled and rigorous testing of product quality, strict control of each production process.
3.Direct factory price,provide competitive factory price and save your costs.
4.7×24 hours after-sale service,Any questions, please contact us directly at any time
5.Strong packing,will protect the goods from any possible damage during transit.
6.TRADE ASSURANCE,protect your orders from payment to delivery.

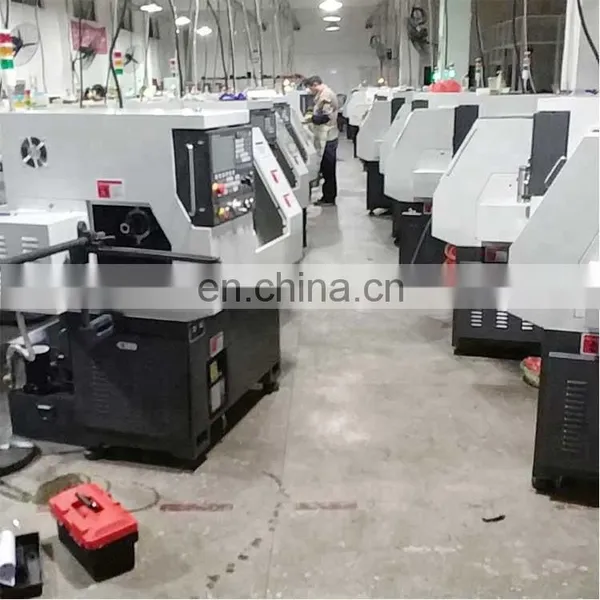

Strong strength :20 years' production experience
The main product of Taian Luyoung Machinery Co.,Ltd is CNC lathe machine, CNC milling machine, CNC machine centers,CNC swiss type automatic lathe. Annual output is 900sets/ year.
1.More than 20 years of production experience.
2.Exported more than 40 countries.
3.More than 300 staffs in factory.
4.CE and ISO9001 certification
5.7×24 hours online service
Exported more than 40 countries around the world, please look who choose us:
Feedback from our customer:
7×24 hours after-sale service
1. Warranty for one year .
2.Supply 7×24 hours online technology support.
3.Professional solution one by one.
4.Free training for customers online or in our factory.
5.The oversea service is available.
Strong packing will protect the goods from any possible damage during transit
1.Non-fumigation packaging, we use seaworthy plywood.
2. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
3.Water-proof and damp proof, water resistant film wraped all the machine.
4.Fully sheathed case,prevention of collision and keep the goods intact.
1.How to get the best quotation?
Tell me the model ,quantity and your requirements, then we will give you our best price to you.
2.If we don’t know the model of the lathe,how to choose the model?
Send the drawing of the workpiece ,then our technicist will recommend the exact model to you.
3.How about the MOQ(Minimum Order Quantity)?
1 set
4.Can we place an order by TRADE ASSURANCE?
Of course, all of our orders can be placed by this way. Please rest assured your money.
5.How long about your guarantee period?
12 months. If there are accessories damaged during the warranty period,we will we will replace it for free.
