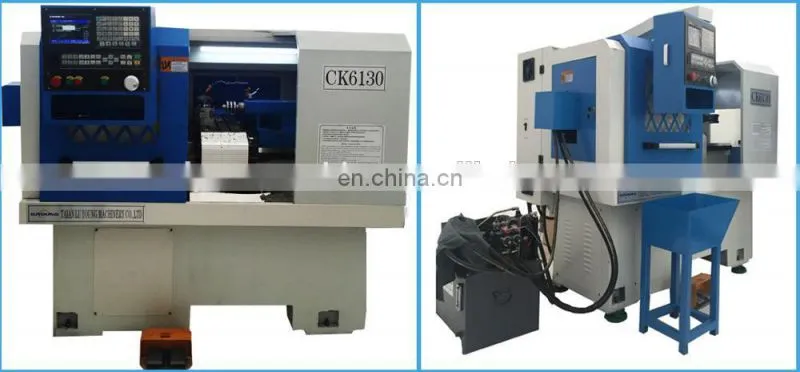

CK6130 china manufacturers high quality 220v cnc turning metal lathe
| The CK6130 china manufacturers high quality 220v cnc turning metal lathe machine uses the design of mechanical and electrical integration, generous appearance beautiful, reasonable structure, easy operation. The machine adopts the integral bed foot, the stability is better. Wear-resistant cast iron after ultra-audio quenching treatment, to ensure the accuracy of the equipment and stability. The fully enclosed cover ensures that a drop of water does not leak out of the machine. |
Specification of CK6130 china manufacturers high quality 220v cnc turning metal lathe
|
CK6130 china manufacturers high quality 220v cnc turning metal lathe | |
| Item | CK6130 |
| Max. swing dia. over bed | 320mm |
| Max. swing dia. over cross slide | 100mm |
| Max. processing length | 400mm(collet) |
| Dia. of spindle hole | 48mm |
| Through hole dia. of drawing pipe | 41mm |
| Spindle speed | 50-3000rpm |
| Tool holder | gang type tool holder |
| Tool bar section | 20x20 16X16mm |
| Main motor power | 4kw |
| X/Z axis travel stoke(mm) | 300/380 |
| X/Z axis fast feeding speed | 8/10 m/min |
| X/Z axis position accuracy(mm) | 0.01/0.015 |
| X/Z-axis repeatability(mm) | 0.012/0.013 |
| Clamping | Pnematic collet |
| Tailstock sleeve dia. | 60mm |
| Tailstock sleeve travel | 100mm |
| Tailstock taper | MT4 |
| Dimension | 1750X1200X1570 |
| weight | 1220kg |
| Standard configuration: | Option configuration: |
| GSK 928TD-L | Siemens,fanuc cnc controller |
| Pneumatic spring collet(2pcs free) | 4 station electrice tool holder |
| Gang type tool carrier | Auto feeder system |
| Manual Tailstock | Pneumatic chuck |
| Auto lubrication system | Hydrualic chuck |
| Lighting system | pneumatice tailstock |
| Cooling system | hydraulic tailstock |
|
380V 3 phase(if your local have special request pls let us know) |
|
Hot selling flat bed high precision CNC lathe machine for metal
|
CK0640 mini CNC lathe machine CK6432 small CNC lathe machine |
|
CK6130 small CNC lathe machine CK6132 small CNC lathe machine |
|
CK6136 middle lathe machine CK6140 middle lathe machine |
|
CK6150heavy duty CNC lathe machine CK6180 heavy duty CNC lathe machine |
Compared with the traditional lathe,the processing performance of CK6130 china manufacturers high quality 220v cnc turning metal lathe
1.Processing complex and high precision workpiece. Bed head box optimization design, suitable for discs, shaft parts of the turning process, you can line, arc, metric thread, long thread processing, can be applied to the complex shape of the complex and high precision disk type, shaft parts Processing.
2.High hardness, good rigidity, high audio quenching, machine guide rails and saddle rails are using special materials, hard rail, high frequency quenching, super hard wear and tear, durable, good processing accuracy
3.Automatic lubrication, the lubrication point of the use of forced automatic lubrication device for quantitative quantitative lubrication of the screw and guide rail, when there is an abnormal state or lack of fuel, the automatic warning signal.
4. High precision, low noise. Spindle high precision double ball bearing support, low noise, high precision, good stability
5.Tailstock self-protection function, tailstock with fast cam clamping device, high efficiency. Tailstock sleeve to prevent the drill bit rotation device, to avoid the malfunction caused by the drill bit rotation and damage the tailstock sleeve hole taper, the effective protection of the tailstock parts.
6.Easy to operate, especially for complex parts or high-precision high-volume parts of the processing, but also the first choice of numerical control teaching.
1.Strong strength,The company has 20 years of production experience, rich product range to meet the needs of different customers.
2.Quality product ,Workshop workers skilled and rigorous testing of product quality, strict control of each production process.
3.Direct factory price,provide competitive factory price and save your costs.
4.7×24 hours after-sale service,Any questions, please contact us directly at any time
5.Strong packing,will protect the goods from any possible damage during transit.
6.TRADE ASSURANCE,protect your orders from payment to delivery.
20 years' production experience
The main product of Taian Luyoung Machinery Co.,Ltd is CNC lathe machine, CNC milling machine, CNC machine centers,CNC swiss type automatic lathe. Annual output is 900sets/ year.
1.More than 20 years of production experience.
2.Exported more than 40 countries.
3.More than 300 staffs in factory.
4.CE and ISO9001 certification .
5.7×24 hours online service.
7×24 hours after-sale service
1. Warranty for one year.
2.Supply 7×24 hours online technology support.
3.Professional solution one by one.
4.Free training for customers online or in our factory.
5.The oversea service is available
The products have exported more than 40 countries around the world, please look who choose us:
Feedback from our customer:
Strong packing will protect the goods from any possible damage during transit
1.Port: Qingdao port or Shanghai port
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.
1.How to get the best quotation?
Tell me the model ,quantity and your requirements, then we will give you our best price to you.
2.If we don’t know the model of the lathe,how to choose the model?
Send the drawing of the workpiece ,then our technicist will recommend the exact model to you.
3.How about the MOQ(Minimum Order Quantity)?
1 set
4.Can we place an order by TRADE ASSURANCE?
Of course, all of our orders can be placed by this way. Please rest assured your money.
5.How long about your guarantee period?
12 months. If there are accessories damaged during the warranty period,we will we will replace it for free.
How to contact us?
My mobile/whatsapp: +86 18660853235; QQ:3494630853
