Product Details
Brand Name: | Lu Young | Place of Origin: | Shandong, China | Model Number: | Ck6136 |
After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
Product Description

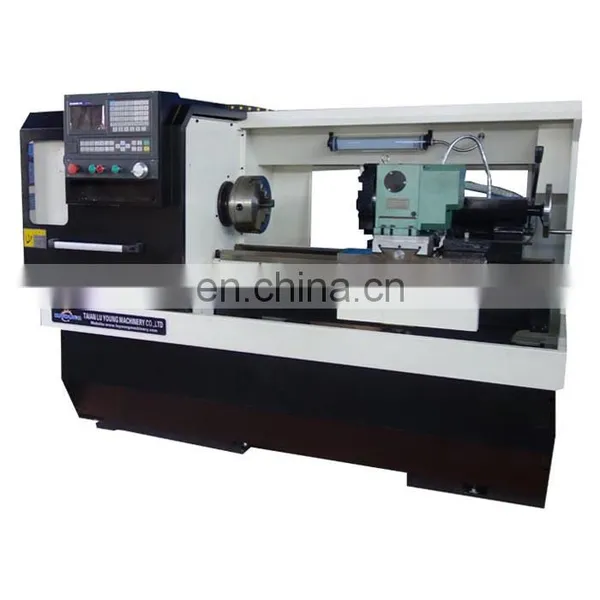

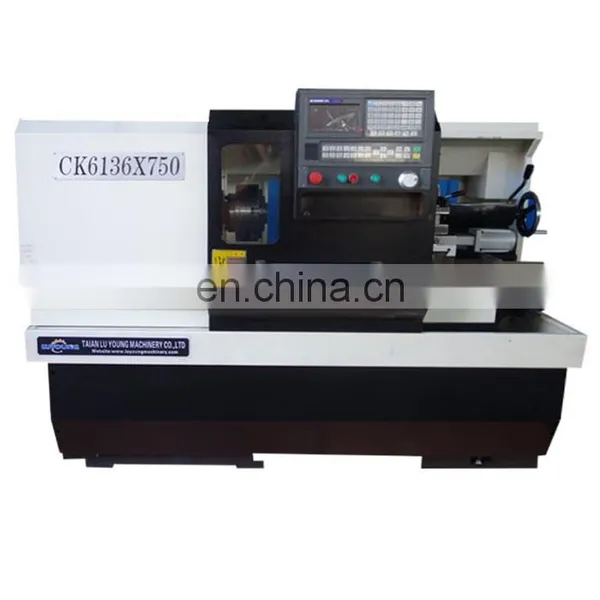

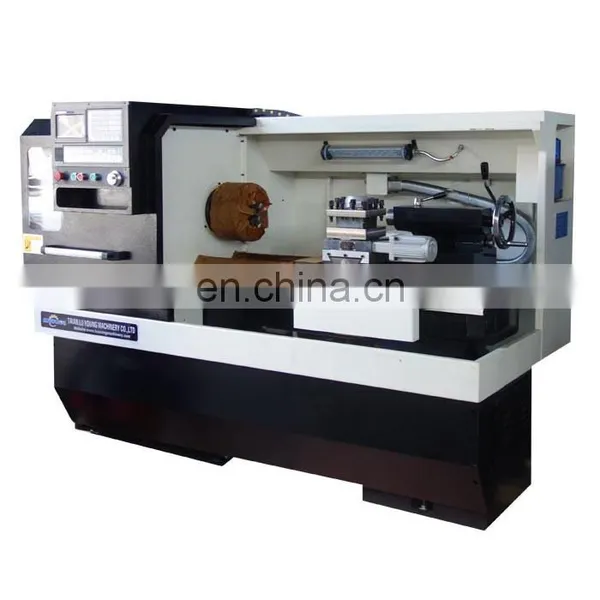

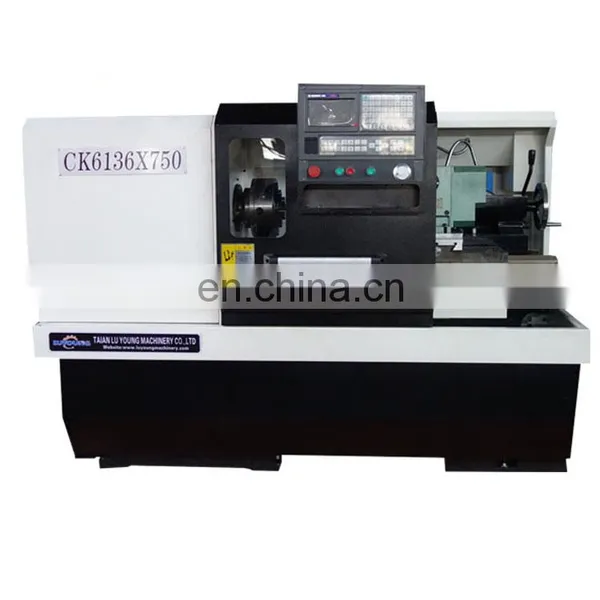

CK6136 New factory price quick change tool holder china hydraulic lathe cnc for sale
CK6136 New factory price quick change tool holder china hydraulic lathe cnc for sale looks generous appearance, the structure is more reasonable, more efficient work. Bed, bed foot made of high quality cast iron, making the machine more stable, more accurate. Guide castings are high temperature customization, ultrasonic sound quenching, the hardness of HRC50 ℃ above, the machine tool processing precision long-term stability. Standard configuration for the three-jaw chuck, and the other can be equipped with hydraulic rotary cylinder, hydraulic chuck, to further improve the efficiency of the machine.
Specification of CK6136 New factory price quick change tool holder china hydraulic lathe cnc for sale
CK6136 New factory price quick change tool holder china hydraulic lathe cnc for sale | ||||
CK6136A | ||||
Max. swing dia. over bed | Φ360mm | |||
Max. swing dia. over cross slide | Φ190mm | |||
Max. processing length(mm) | 500 | 750 | 1000 | |
Dia. of spindle hole | Φ60mm | |||
Spindle speed | 150-2500rpm | |||
spindle taper | MT6 | |||
Tool holder |
| |||
Tool bar section | 20x20 | |||
Main motor power | 4kw | 5.5kw | ||
X/Z axis fast feeding speed | 6/8 m/min | |||
X/Z axis position accuracy(mm) | 0.01/0.015 | |||
X/Z-axis repeatability(mm) | 0.012/0.013 | |||
Clamping | 3 Jaw Manual Chuck(optional pnematic or hydraulic chuck) | |||
Tailstock sleeve dia. | 60mm | |||
Tailstock sleeve travel | 120mm | |||
Tailstock taper | MT4 | |||
Dimension | 1850x1400x1700 | 2120x1400x1700 | 2370x1400x1700 | |
Weight(kg) | 1500 | 1650 | 1750 | |
Standard configuration: | Optinal configuration: | |||
GSK928 CNC Controller | Siemens,Fanuc cnc controller system | |||
Servo motor for X,Z axis, Servo driven | pneumatic chuck,hydraulic chuck | |||
3 Jaw Manual Chuck | pneumatic tailstock,hydraulic tailstock | |||
4 station electric tool post | 6 staion tool turret,8staiton tool turret | |||
Auto lubrication system | Auto feeder system | |||
lighting system | Chip conveyor | |||
cooling system |
The feature of CK6136 New factory price quick change tool holder china hydraulic lathe cnc for sale
1.Processing complex and high precision workpiece. Bed head box optimization design, suitable for discs, shaft parts of the turning process, you can line, arc, metric thread, long thread processing, can be applied to the complex shape of the complex and high precision disk type, shaft parts Processing.
2.High hardness, good rigidity, high audio quenching, machine guide rails and saddle rails are using special materials, hard rail, high frequency quenching, super hard wear and tear, durable, good processing accuracy
3.Automatic lubrication, the lubrication point of the use of forced automatic lubrication device for quantitative quantitative lubrication of the screw and guide rail, when there is an abnormal state or lack of fuel, the automatic warning signal.
4. High precision, low noise. Spindle high precision double ball bearing support, low noise, high precision, good stability
5.Tailstock self-protection function, tailstock with fast cam clamping device, high efficiency. Tailstock sleeve to prevent the drill bit rotation device, to avoid the malfunction caused by the drill bit rotation and damage the tailstock sleeve hole taper, the effective protection of the tailstock parts.
6.Easy to operate, especially for complex parts or high-precision high-volume parts of the processing, but also the first choice of numerical control teaching
Features of cnc turning lathe machine price in india
CK0640 mini cnc lathe CK6432 small cnc lathe CK6130 small cnc lathe machine
CK6132 small cnc lathe CK6136 small cnc lathe CK6140 cnc lathe machine
Why choose our CK6136 New factory price quick change tool holder china hydraulic lathe cnc for sale ?
1.Strong strength,The company has 20 years of production experience, rich product range to meet the needs of different customers.
2.Quality product ,Workshop workers skilled and rigorous testing of product quality, strict control of each production process.
3.Direct factory price,provide competitive factory price and save your costs.
4.7×24 hours after-sale service,Any questions, please contact us directly at any time
5.Strong packing,will protect the goods from any possible damage during transit.
6.TRADE ASSURANCE,protect your orders from payment to delivery.
20 years' production experience
The main product of Taian Luyoung Machinery Co.,Ltd is CNC lathe machine, CNC milling machine, CNC machine centers,CNC swiss type automatic lathe. Annual output is 900sets/ year.
1.More than 20 years of production experience.
2.Exported more than 40 countries.
3.More than 300 staffs in factory.
4.CE and ISO9001 certification .
5.7×24 hours online service.
Annual sales:
Who choose Lu Young?
Feedback from customer:
Strong packing will protect the goods from any possible damage during transit
Packaing information of CK6136 New factory price quick change tool holder china hydraulic lathe cnc for sale
Packaging material | Non-fumigation plywood crate |
Base plate | Steel |
Packaing size (mm) | 1950×1500×1800 |
packaging feature | 1.Non-fumigation packaging, we use seaworthy plywood. 2. Steel base plate, it is stronger 3-5 times than normal plywood base plate. 3.Water-proof and damp proof, water resistant film wraped all the machine. 4.Fully sheathed case,prevention of collision and keep the goods intact. |
FAQ:
1.How to get the quotation of CK6136 New factory price quick change tool holder china hydraulic lathe cnc for sale ?
Tell me the model ,quantity and your requirements, then we will give you our best price to you. |
2.If we don’t know the model of the lathe,how to choose the model?
Send the drawing of the workpiece ,then our technicist will recommend the exact model to you. |
3.How about the MOQ(Minimum Order Quantity)?
1 set |
1 set
4.Can we place an order by TRADE ASSURANCE?
Of course, all of our orders can be placed by this way. Please rest assured your money. |
5.How long about your guarantee period?
12 months. If there are accessories damaged during the warranty period,we will we will replace it for free. |
6.How to contact you?
My mobile/whatsapp: +86 18660853235; QQ:3494630853 |
