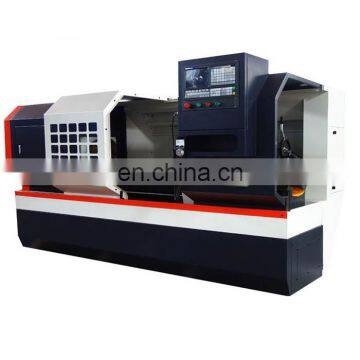

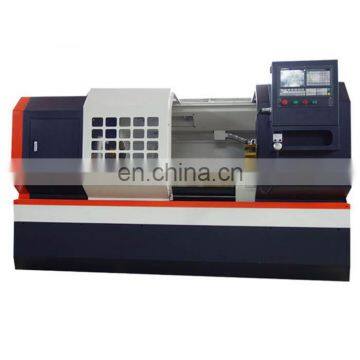

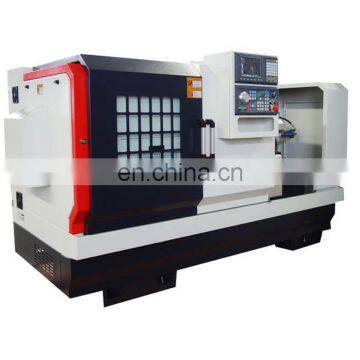

high precision 2m Long bed ck6150 cnc lathe machine
high precision 2m Long bed ck6150 cnc lathe machine is a high-precision, high-efficiency automated machine tools, the whole machine with integrated protection structure, beautiful appearance. Mainly used for complex shape parts or high precision parts processing, can automatically complete internal and external Round surface, conical cotton, round face, end face, a variety of threads, drilling, hinge, boring and other turning. The machine is tested in strict accordance with the inspection procedure. Each machine adopts laser interferometer to detect X and Z axis positioning accuracy and repeat positioning accuracy to ensure the accuracy and reliability of the machine.
specification of high precision 2m Long bed ck6150 cnc lathe machine
| Item | high precision 2m Long bed ck6150 cnc lathe machine |
| Max. swing dia. over bed | Φ500mm |
| Max. swing dia. over cross slide | Φ280mm |
| Processing length | 750mm(Option 1000mm/1500mm) |
| Width of the bed | 400mm |
| Dia. of spindle | Φ82mm |
| Spindle taper | 1:20/Φ90 |
| spindle nose | Type of spindle head D-8 |
| Spindle speed | 150-2000rpm |
| Spindle speed step | step-less |
| chuck size | 250mm |
| Tool holder | 4 station |
| Tool bar section | 25X25mm |
| Main motor power | 7.5KW |
| X/Z axis position accuracy | 0.02/0.025mm |
| X/Z axis repeatability | 0.01/0.012mm |
| X/Z axis torque | 6/10N.M |
| X/Z axis travel | 360/750mm/(1000mm/1500mm) |
| X/Z axis fast feeding speed | 8/10 M/MIN |
| Tailstock sleeve travel | 150mm |
| Tailstock taper | MT5 |
| Dimension |
2410*1560*1730 (2660*1560*1730 /3160*1560*1730) |
| weight | 2800(3200/3500)kg |
| Standard configuration | Option configuration |
| GSK980 | Siemens,Fanuc,KND |
| Manual 3 jaw chuck | Pneumatic chuck |
| 4 station tools carrier | 6/8 station electric tool holder |
| Auto lubrication system | Hydrualic chuck |
| Lighting system | Chip conveyor |
| Cooling system | |
|

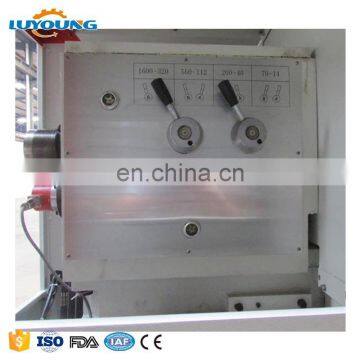

Two gear speed manual change for 4 step, frequency conversion stepless |
|
| 380V 3 phase(can be customized ) |
|
The feature of high precision 2m Long bed ck6150 cnc lathe machine : 1. High machine precision, the system set the minimum unit 0.001mm, X-axis repeat positioning accuracy of 0.010mm, Z-axis repeat positioning accuracy of 0.012mm. 2. High hardness, good rigidity, high audio quenching, machine guide rails and saddle rails are using special materials, hard rail, high frequency quenching, super hard wear and tear, durable, good processing accuracy to maintain good. 3. High stability, high-strength cast iron machine, adding copper and chromium special materials, bed rail quenching depth of 4mm hardness of 52 °or more, effectively improve the machine wear resistance and stability. 4. Centralized automatic lubrication guide, screw, etc., with a flexible movement to reduce the heat distortion, precision and stability characteristics. 5. Low machine noise, the machine gear with precision grinding, effectively improve the gear hardness, reducing machine noise. 6. Tool holder with high positioning accuracy, high precision CNC turret, tool change knife, no contact to send the message, against the sales, the use of international advanced three-pole tooth fine positioning, thread lifting tightening. Optional six-station or eight-station horizontal electric knife, turret with high positioning accuracy, high strength, good seismic performance and so on. |
Why choose our high precision 2m Long bed ck6150 cnc lathe machine?
1.Strong strength,The company has 20 years of production experience, rich product range to meet the needs of different customers.
2.Quality product ,Workshop workers skilled and rigorous testing of product quality, strict control of each production process.
3.Direct factory price,provide competitive factory price and save your costs.
4.7×24 hours after-sale service,Any questions, please contact us directly at any time
5.Strong packing,will protect the goods from any possible damage during transit.
6.TRADE ASSURANCE,protect your orders from payment to delivery.
20 years' production experience
The main product of Taian Luyoung Machinery Co.,Ltd is CNC lathe machine, CNC milling machine, CNC machine centers,CNC swiss type automatic lathe. Annual output is 900sets/ year.
1.More than 20 years of production experience.
2.Exported more than 40 countries.
3.More than 300 staffs in factory.
4.CE and ISO9001 certification .
5.7×24 hours online service.
Who choose Lu Young?
The products have exported more than 40 countries around the world, please look who choose us:
Feedback from our customer:
7×24 hours after-sale service
1. Warranty for one year.
2.Supply 7×24 hours online technology support.
3.Professional solution one by one.
4.Free training for customers online or in our factory.
5The oversea service is available.
Strong packing will protect the goods from any possible damage during transit
1.Non-fumigation packaging, we use seaworthy plywood.
2. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
3.Water-proof and damp proof, water resistant film wraped all the machine.
4.Fully sheathed case,prevention of collision and keep the goods intact.
1.Does the high precision 2m Long bed ck6150 cnc lathe machine can be customized?
| Of course, if our standard configuration can not meet your needs, please tell us that we redesign and produce the machine to meet your needs |
2.How long is the warranty period of the cnc lathe machine?
|
Warranty period is one year, if parts damage within one year, we will send free of charge. Free online training or factory training to ensure that you can use our products properly. We can offer overseas paid installation, commissioning service. |
3.What time is your work time?
| We work online 24 hours a day, offer quotes and technical support at any time. |
4.Do you use the Trade Assurance on Alibaba?
| Yes, all of the order use this.Can guarantee the quality of the product and your payment. |
5.How to get a quote?
| Please tell us the model you need or send us drawings of the workpiece, then we can recommend the most suitable products to you. We will give you the best offer within 24 hours. |
6.How to contact with you?
| My mobile/whatsapp: +86 18660853235; QQ:3494630853 |
