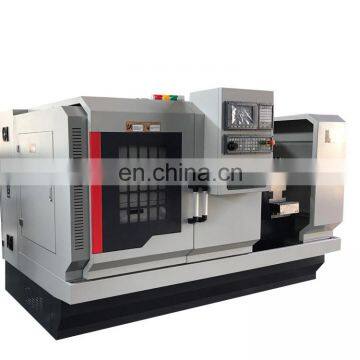

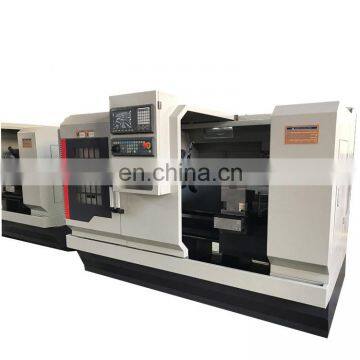

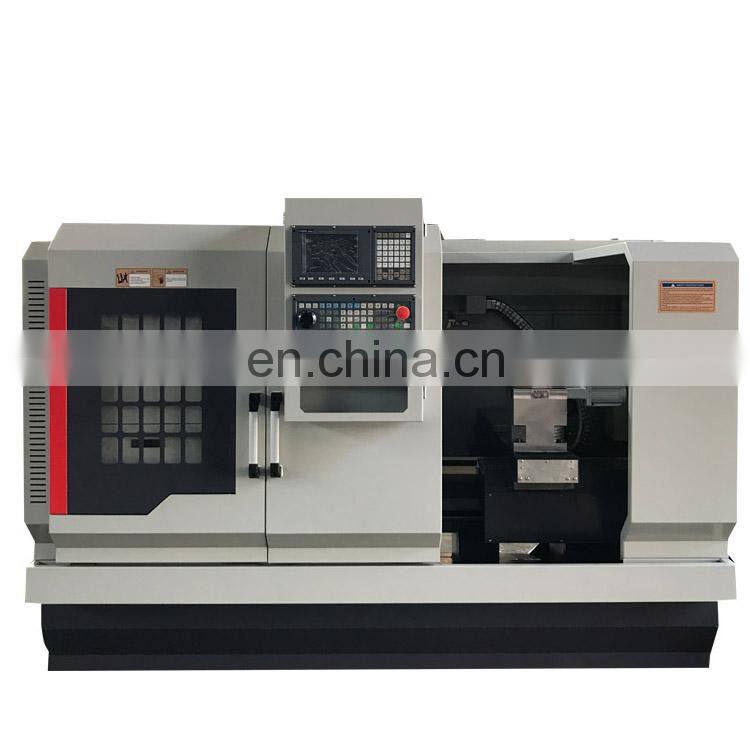

CWR32 China company low price diamond metal CNC wheel repairing lathe
| Alloy wheel repair machine | CWR32 | |
| Max. swig over bed Dia. | Φ880(34’) | |
| Max. Load alloy wheel Size | 32 inches | |
| Adjustable stroke of carrier in X direction | 100mm | |
| Cross slide travel (mm) | 450 | |
| Width of the rail (mm) | 400 | |
| Length of the rail (mm) | 1650 | |
| Size of the three-jaw chuck (inch) | 16’ | |
| Range of spindle speed (RPM) | 50~1800 | |
| Spindle speed control | Automatic | |
| Spindle bore (mm) | Φ82 | |
| Taper of spindle bore | 1:20(Φ90) | |
| Max. size of tool post | 25×25mm | |
| Stations of tool carrier | 4 position | |
| Min. setting unit of motor | (Z) long 0.001mm, | |
| (X) cross 0.001mm | ||
| Moving speed of post | (Z) long 8m/min, | |
| (X) cross 6m/min | ||
| Motor power | 7.5KW | |
| Mchine base(cast iron base) | Separate | |
| Machine size | (L×W×H) (mm³) | 2970×1660×2080 |
| Package size | 3120×1810×2350 | |
| Net weight | 3200kgs | |
The CWR32 China company low price diamond metal CNC wheel repairing lathe machine can be turning inside and outside round surface, conical surface, sphere, circular arc surface, end, grooving, drilling and reaming, abnormity of rotors, with and without relief groove and inch thread and arbitrary conic bodies, and other functions.The cutting end and reaming of the car are used to cut all kinds of common threads - metric, English thread, etc.Machinable steel, cast iron and non-ferrous materials.
The dimensions of the machinable parts can reach the IT6~ IT7, and the smaller surface roughness values can be obtained.
This machine can be widely used in machinery industry and other industries, especially suitable for the turning process of non-ferrous metal multi - variety batch parts
1. High precision of CWR32 China company low price diamond metal CNC wheel repairing lathe machine tool, the main shaft adopts Harbin bearing HRB high precision double ball bearing support, low noise, high precision and good stability.
2. The CWR32 China CNC wheel repairing lathe bed body guide is refined by ultrasonic quenching, high hardness and good rigidity.

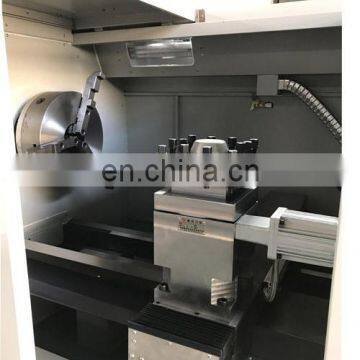

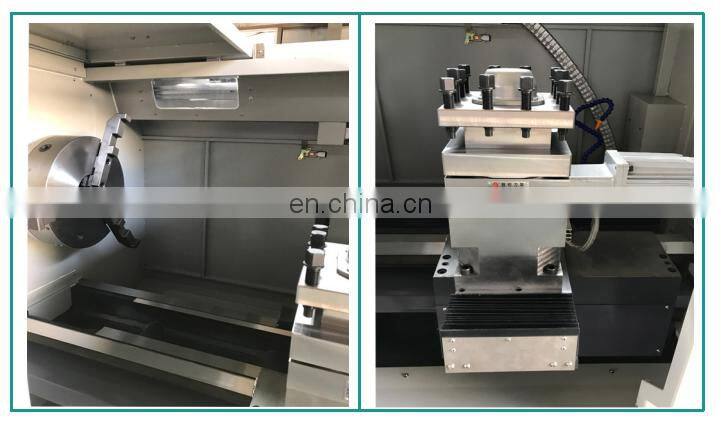

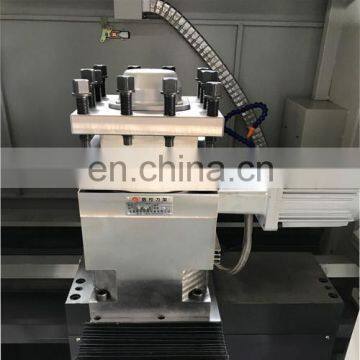

3. The CWR32 electric four-position tool holder is positioned with precise gear positioning, and the positioning accuracy is high.
4. The CNC wheel repairing lathe tail frame has fast CAM clamping device, and the work efficiency is high.The tail seat sleeve has the device to prevent the drill bit rotation, avoiding the taper of the hole of the socket sleeve caused by the rotation of the drill caused by the wrong operation, and the tail part is protected effectively.

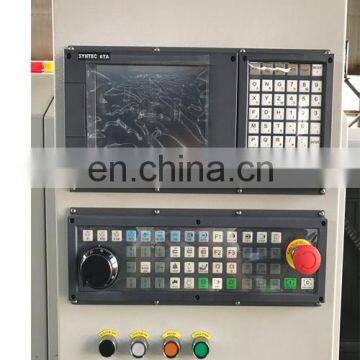

5, wide CNC CWR32 system adopts several system or Cain emperor and other well-known brands at home and abroad, the hybrid stepping motor driver or optional ac servo motor drive, can also according to user's request matching other systems.
6. Easy to operate, especially suitable for complex parts or high precision machining of high-volume parts, which is also the first choice for numerical control teaching.
Luyang CNC machinery company has 20 years of production lathe experience, main CNC lathe, CNC milling machine, processing center, Swiss CNC lathe high-tech enterprise.The company has a professional production and development team and favorable after-sales technical team support.The company takes the strength to make the product, the service wins the customer, the customer as the basic management concept.Our company has gained a good reputation both at home and abroad by providing customers with cost-effective CNC machine tools and excellent timely sales advice and after-sales service.Development, innovation, people-oriented, is the direction my company has been working on.
Our company continuously strengthen product performance improvements, innovation cost-effective CNC machinery, optimize product quality control system, to provide global support services as the dominant direction of the development of the company.
1.Port: Qingdao port or Shanghai port
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.
After sales of CWR 32 Diamond cut cnc alloy wheel rim repair machine lathe:
1. Warranty for one year.
2.Supply 7×24 hours online technology support.
3.Professional solution one by one.
4.Free training for customers online or in our factory.
5.The oversea service is available.
1.Our customers come from more than 40 different countries and promote the most suitable products for different countries to provide the best service;
2 we participated in many exhibitions, the Chinese machinery exhibition, guangzhou commodities fair, through the exhibition to expand overseas market, we invite customers to visit our factory, also can be customized according to customer demand, through our products and services for customers
1. We have excellent technology, have a professional r&d team and quality control system, manufacture and sell the most reliable and reliable technical products, and strictly control each product.Make sure the products are 100% qualified, and can be customized according to your requirements.
2 we have a solid strength, committed to the development achievements of numerical control equipment customers, innovation, honest business philosophy, through the international quality certification standards, products many times get the patent certificate.
3. We have reliable quality, strict control of quality control, high quality products and high efficiency services. We have received the approval of customers, and our price is excellent.
4 have perfect service, equipped with professional service team, perfect after-sales service team, quickly solve the problem for you.
1.Does the CWR32 China company low price diamond metal CNC wheel repairing lathe can be customized?
Of course, if our standard configuration can not meet your needs, please tell us that we redesign and produce the machine to meet your needs.
2.How long is the warranty period of the cnc lathe machine?
Warranty period is one year, if parts damage within one year, we will send free of charge. Free online training or factory training to ensure that you can use our products properly. We can offer overseas paid installation, commissioning service.
3.What time is your work time?
We work online 24 hours a day, offer quotes and technical support at any time.
4.Do you use the Trade Assurance on Alibaba?
Yes, all of the order use this.Can guarantee the quality of the product and your payment.
5.How to get a quote?
Please tell us the model you need or send us drawings of the workpiece, then we can recommend the most suitable products to you. We will give you the best offer within 24 hours.
