CK6140 China 3 jaw chuck specification turning cnc lathe machine
- 60 Set / Sets per Month
- Qingdao or Shanghai
- T/T Credit Card
- CK6136 Small new horizontal Gsk system control cnc lathe machine
- ck6136A economic small turning torno used cnc lathe fanuc control machine
- CK6150 heavy duty 2 axis 3 jaw chuck lathe cnc machine
- CK6130 full from small cheap low cost cnc lathe machine
- CK0640 factory price high speed precision cnc machine lathe
- CK6160 China heavy duty high precision horizontal cnc lathe machine
Product Details
Brand Name: | Lu Young | Place of Origin: | Shandong, China | After-sales Service Provided: | Overseas third-party support available |
Condition: | New |
Product Description

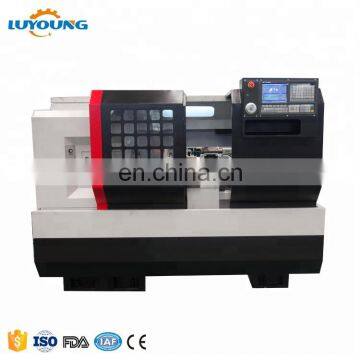

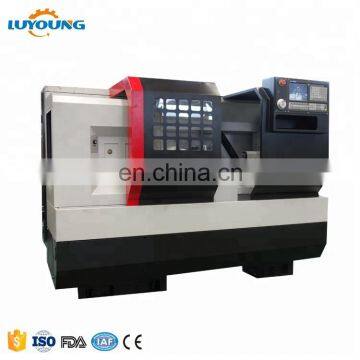

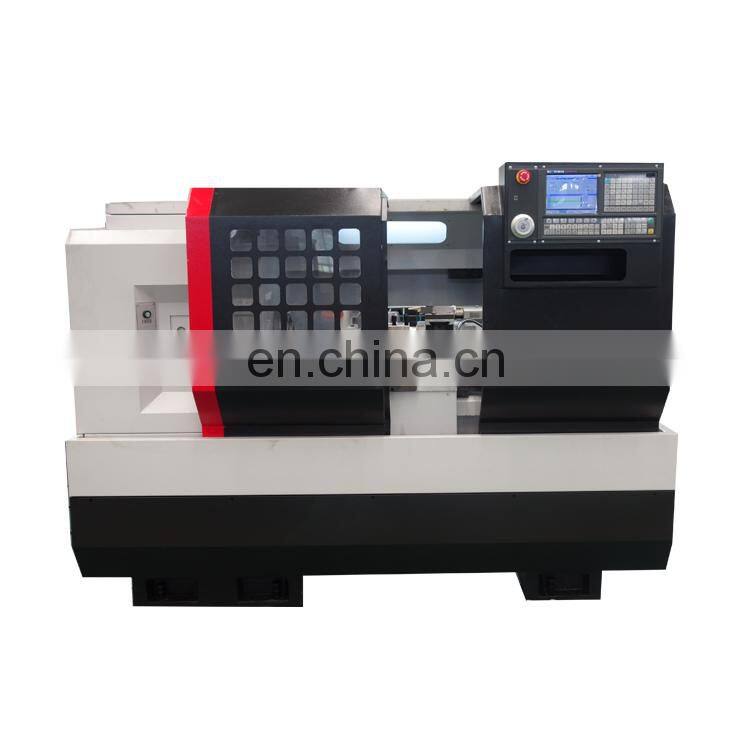

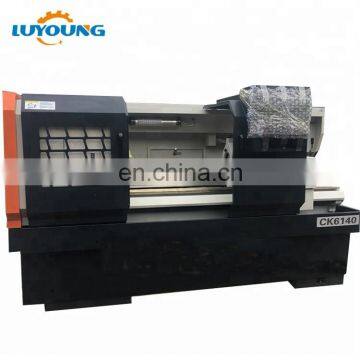

CK6140 china 3 jaw chuck specification turning cnc lathe machine
Ck6140 | |
The maximum rotary diameter of the bed | Φ400mm |
The maximum rotary diameter on the tray | Φ180mm |
Maximum machining length | 850/1500mm |
Maximum stroke x/z | X:220z:1050/1600mm |
The main shaft end form | C6 |
Diameter of main shaft hole | 52mm |
Taper of main shaft hole | Mt6 |
Spindle motor power | 5.5kw |
Chuck size | 200mm |
Positioning accuracy | 0.02/0.025mm |
Repeat positioning accuracy x/z | 0.01/0.015mm |
Diameter of tail sleeve | 65mm |
The tail sleeve stroke | 140mm |
Tail socket taper | Mt4 |
Tool post form | Electric four-position |
Tool profile size | 20×20mm |
Total power capacity | 10KVA |
External dimension | 2500×1500×1650mm |
Machine weight | 1800/2300kg |
This ck6140 china 3 jaw chuck specification turning cnc lathe machine can realize automatic control, can automatically process various parts of internal and external circle, end face, cutting slot, arbitrary conical surface, spherical, and various kinds of common imperial cylinder, tapered thread, etc.Equipped with the perfect S.T.M function, it can send and receive multiple signals to control the automatic processing.
The china 3 jaw chuck specification turning cnc lathe machine main vehicle adopts high - precision flow bearing support, and the rotary precision is high.The guide rail of this machine tool adopts high - wear cast iron and has been processed through ultrasonic quenching, and the artificial vibration aging treatment can guarantee the geometric precision of machine tool.High - precision ball screw drive for crossbar, good dynamic performance and high displacement accuracy.All sliding surfaces of machine tools are lubricated by concentrated drip.This machine tool is widely used in the manufacture of electric and hardware tools, valves, gas fittings and other complex parts. It is the most ideal and efficient equipment in the processing industry of hardware machinery.
1.This ck6140 china specification turning cnc lathe machine High precision of machine tool, the main shaft adopts Harbin bearing HRB high precision double ball bearing support, low noise, high precision and good stability.
2. The ck6140 bed body guide is refined by ultrasonic quenching, high hardness and good rigidity.

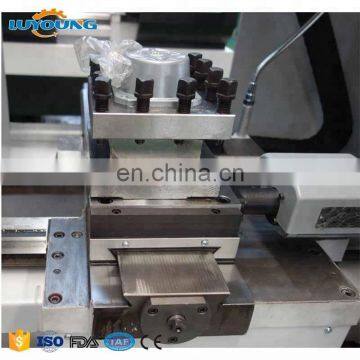

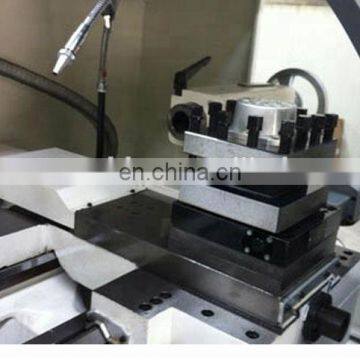

3. The ck6140 electric four-position tool holder is positioned with precise gear positioning, and the positioning accuracy is high.
4. The tail frame has fast CAM clamping device, and the work efficiency is high.The tail seat sleeve has the device to prevent the drill bit rotation, avoiding the taper of the hole of the socket sleeve caused by the rotation of the drill caused by the wrong operation, and the tail part is protected effectively.
5, china specification turning cnc lathe machine wide CNC system adopts several system or Cain emperor and other well-known brands at home and abroad, the hybrid stepping motor driver or optional ac servo motor drive, can also according to user's request matching other systems.
6. Easy to operate, especially suitable for complex parts or high precision machining of high-volume parts, which is also the first choice for numerical control teaching.
1. The ck6140 china 3 jaw chuck specification turning cnc lathe machine tool X direction and Z guide rail adopt rigid sliding guide rail, and the machine tool is suitable for heavy turning and precision retention.
2. CNC control system + servo drive, main shaft adopts inverter spindle 3 jaw chuck.
3. Adopt domestic famous ball screw and Japanese NSK screw bearing.
4. The spindle unit adopts Japan NSK spindle bearing group, and the precision assembly and dynamic balance test, ensure that the spindle of high precision, low noise, strong rigidity, which can realize stepless speed regulation and constant speed cutting, start and stop quickly.
5. The lubrication points shall be fixed with the fixed point of the fixed point, and the warning signal will be automatically generated when abnormal state or oil quantity is insufficient.

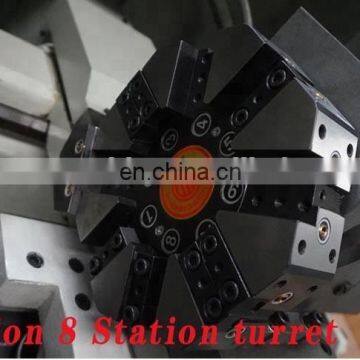

6. The ck6140 china 3 jaw chuck specification turning cnc lathe machine tool adopts the four-position rotary tool holder, the tool holder can be changed to the nearest path of rotation, the speed of changing the knife is fast, the positioning rigidity is good, the repeatability positioning precision is high.
7. Fully enclosed protective devices shall be adopted to prevent cooling liquid and iron debris from splashing out of machine tools.
Luyang CNC machinery company has 20 years of production lathe experience, main CNC lathe, CNC milling machine, processing center, Swiss CNC lathe high-tech enterprise.The company has a professional production and development team and favorable after-sales technical team support.The company takes the strength to make the product, the service wins the customer, the customer as the basic management concept.Our company has gained a good reputation both at home and abroad by providing customers with cost-effective CNC machine tools and excellent timely sales advice and after-sales service.Development, innovation, people-oriented, is the direction my company has been working on
Our company continuously strengthen product performance improvements, innovation cost-effective CNC machinery, optimize product quality control system, to provide global support services as the dominant direction of the development of the company.
Packaging: the outer packing is standard Marine export plywood box, which is certified by the national inspection agency. Our products are shipped by sea.
We can also carry out the transportation according to your requirements.
1. Our customers come from more than 40 different countries and promote the most suitable products for different countries to provide the best service;
2 we participated in many exhibitions, the Chinese machinery exhibition, guangzhou commodities fair, through the exhibition to expand overseas market, we invite customers to visit our factory, also can be customized according to customer demand, through our products and services for customers
1 with independent export rights, products are in conformity with export standards, has many years of export experience, products are exported to Europe, Russia, the United States, Canada and so on more than 40 countries and regions, won the customer the consistent high praise.
2. 20 years of machining experience, the company's technical research and development team has always regarded technology as the first fundamental of enterprise survival, constantly developing new technologies and communicating with new technologies in the world.
3. Ensure the quality of products from the source of the purchase, the original accessories of the company are the top brands in China, and the products have been tested by the quality department in the test of the market for years, and the products can only be installed after passing the strict inspection by the quality department.
4 true production and sales after sales service, the company after sales has been a cherished standard of the company, let you buy safely, safe to use.
1.One year warranty for CNC machine tools, the number of products (GSK) warranty for three years, machine tools, from the date of final acceptance of our company to three packages of service products, the quality guarantee period is 12 months.
2. After the failure of the machine tool, after receiving the user information, it can accurately determine the cause of the failure and the handling measures, and immediately give the reply;We will be online 24 hours.We offer free training and overseas service.
3. After the warranty period, our company will provide maintenance services to users according to our standard of charge, and will be responsible for the cost of some services and services.
CK6140 China 3 jaw chuck specification turning cnc lathe machine
How long is your warranty period?Can you guarantee quality?
A: our warranty period is one year, and we will maintain the product free of charge during the warranty period.Use our machines to supply standard parts and accessories during shipment.In the correct operation, if there are any damaged parts or accessories, we will replace them immediately by airmail or express mail.
What kind of packing do you have?
Answer: we use a plywood cases, to ensure the packing quality durable, fully protect the safety of the goods in the cabinet, appearance is bright and clean, smooth and beautiful, durable, has low cost, big load, afraid of sun rain no moth, etc.
How long will your delivery date be?
A: our delivery date is one month.30 days
Can your products be customized?
A: of course, if our product can't meet your need, tell us the model and send us the drawing, recommend suitable products to you, we can also design and produce the machine meet your requirements.
How can I contact you?
Through cell phone number and QQ, there is also email contact.
