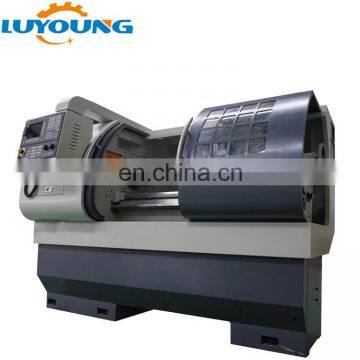

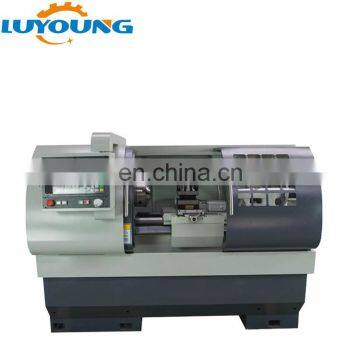

CK6136 Cheap CNC turning lathe machine
CK6136 Cheap CNC turning lathe machine have unique and fine appearance . With advantage of high speed ,high precision ,efficient ,It’s suitable for high-volume ,medium and small batch production of various kinds of complex parts .The key part - casting is required to goes through complex procedure and repeatedly test,and the hardness could over HRC 50°.
CK6136 Cheap CNC turning lathe machine | ||||
Item |
CK6136 |
|||
Max. swing dia. over bed |
Φ360mm |
|||
Max. swing dia. over cross slide |
Φ190mm |
|||
Max. processing length(mm) |
500 |
750 |
1000 |
|
Dia. of spindle hole |
Φ60mm |
|||
Spindle speed |
150-2500rpm |
|||
spindle taper |
MT6 |
|||
Tool holder |
|
|||
Tool bar section |
20x20 |
|||
Main motor power |
4kw |
5.5kw |
||
X/Z axis fast feeding speed |
6/8 m/min |
|||
X/Z axis position accuracy(mm) |
0.01/0.015 |
|||
X/Z-axis repeatability(mm) |
0.012/0.013 |
|||
Clamping |
3 Jaw Manual Chuck(optional pnematic or hydraulic chuck) |
|||
Tailstock sleeve dia. |
60mm |
|||
Tailstock sleeve travel |
120mm |
|||
Tailstock taper |
MT4 |
|||
Dimension |
1850x1400x1700 |
2120x1400x1700 |
2370x1400x170 |
|
Weight(kg) |
1500 |
1650 |
1750 |
|
Standard configuration: |
Optinal configuration: |
|||
GSK928 CNC Controller |

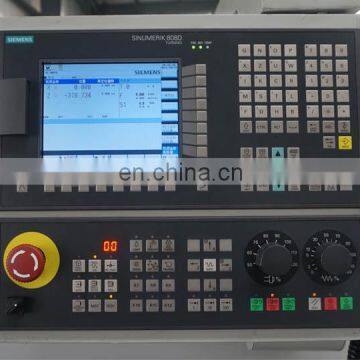

Siemens,Fanuc cnc controller system |
|||

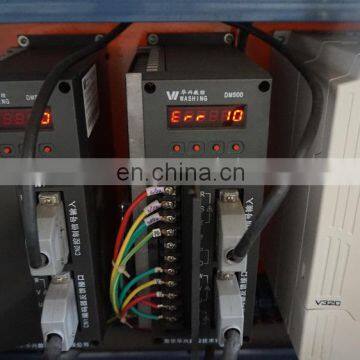

Servo motor for X,Z axis, Servo driven |
pneumatic chuck,hydraulic chuck |
|||
3 Jaw Manual Chuck |
pneumatic tailstock,hydraulic tailstock |
|||
4 station electric tool post |
6 staion tool turret,8staiton tool turret |
|||
Auto lubrication system |
Auto feeder system |
|||
lighting system |
Chip conveyor |
|||
cooling system |
||||
1.four or six-station knife tool optional
3.Automatic lubrication system minimize the damage on the machine ,extend the service life

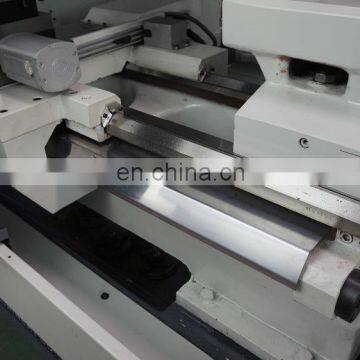

3.Superaudio quenching guide rail with excellent wear resistance and durable service life , High rigidity single spindle casting ,frequency conversion motor and constant speed moving
4.High rigidity single spindle casting
5.removable lathe shield , secure user’s safe and operation convenience .
· Packaging:sea worthy standard wooden case
· Shipment: within 15 days after payment
Taian Luyoung Machinery is located in Shandong province , which is the region of world famous mountain Tai and one of the cradleland of Chinese culture . Luyoung have engaged in the line of manufacturing and trading CNC machines for more than 20 years.Our prodct contains:CNC lathe machine , CNC milling machine,CNC machine center , CNC Swiss type lathe . With mission “ credit is the basic , quality is the first ” , we can ensure the prime quality and the most impressive price in the industry, we are going further and further on pursuing high standard high quality products and high satisfaction .
1. Customized service:Just tell us your needs about our service or the goods.
2. 7*24hours service:We’d love to offer help anytime,be free to contact us please.
3. Customer visiting & Free training :Welcome to China and visit our workshop and products
4. After sales service: We supply replacement parts for free if the machine is proved defective within 12 months .While the guarantee period of computer range from 1-3years.according the brand.
- What if I have problem with using mahine ?
(1)every machine would be equiped with a manual operation
(2)Free training is available .
(3)Be free to call or E-mail us anytime ,we're ready to offer help in 7*24 hours .
- I don't know how to choose the right model?
Send us the workpiece ,we'll help you to choose the right one.
- About payment .
We accept L/C,T/T,D/A,D/P ,and 30% deposit advanced by T/T ,the balance should be paid before the shipment.
- About delivery .
Generally,we can deliver the goods within 30 days .
- How can I get the quotation ?
You can contact us by phone or e-mail .Send us your requirments ,the best offer would be provided soon.
